There are four models in the range available in 1.5m to 2.0m working widths with ground tip and high tip options.

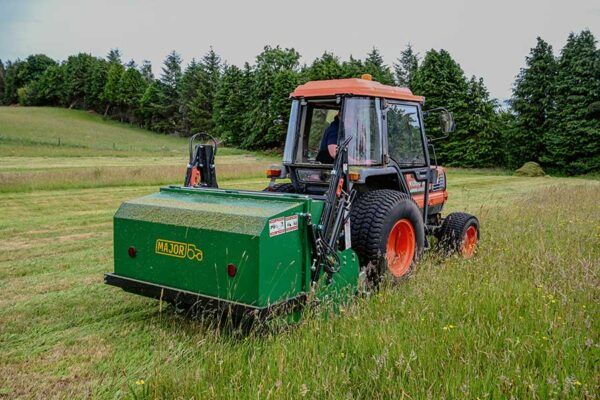

MJ29 Flail Collector
The MJ29 Flail Collector, with a 1.53m working width, is a robust option for compact tractors ranging from 25 to 40 HP. The rear collection hopper has a capacity of 0.95m³ to handle large volumes of grass, leaves and light debris. This machine is ideal for estates, small holdings, sports grounds, parks and gardens.
Available with ground-level tipping or a high-tip option with a 2.0 m discharge height. The MJ29-153 model has a ground level discharge for use in situations where overall height is a consideration and is ideal for use in orchards where overhanding branches are an issue. The MJ29-153-HL model has a hydraulic high lift function that reaches to 2.0m to easily discharge material into trailers or skips. Two external services are required for the high lift function; one to lift the hopper and one to open the hopper lid.
Features
- Heavy duty flail blades
- Adjustable rear roller follows ground contours and creates a professional striped finish
- Simple height adjustment
- Heavy duty skids to protect the mower deck from abrasion and impact damage
- Pivoting front castor wheels for minimal ground compaction and manoeuvrability
- Designed for use with 25-40HP tractors
- Fitted with ram locks to secure the hopper during maintenance and adjustments for enhanced safety
- Optional scarifying kit available
MJ27 Green Bee Flail Collector
The MJ27-160 and MJ27-180 Green Bee is a medium duty flail collector for multi-purpose use. These units combine mowing, scarifying, collecting, chopping and rolling in one pass. The Green Bee is suitable for use on sports grounds and golf courses, paddock maintenance, airports, airfields, camp sites, public areas and private estates. The hydraulic high tip at 2.2m feature allows the collector hopper to discharge into skips or lorries for swift and easy removal.
Features
- Two working widths: 1.6m and 1.8m
- Heavy duty flail blades supplied as standard
- Optional scarifying kit available to aerate the ground in a single pass
- 2.0m³ collection hopper capacity
MJ2000 Heavy Duty Flail Collector
The MJ2000 Heavy-Duty Flail Collector is built for professional, large-scale green space maintenance and features a 2m cutting width and high-capacity hopper for maximum efficiency.
The strong build of the MJ2000 allows it to cope in scrubland and areas covered in heather, bracken and gorse, while capable of delivering a fine presentation in standard applications.
The floating linkage enables the machine to follow ground contours, especially in punishing terrain, to deliver a quality finish. A simple hydraulic high-lift function, tips the 3m3 capacity collector at 2.1m for fast and easy emptying into trailers or skips.
Features
- Large capacity 2.0m working width
- Suitable for large compact and agricultural tractors
- BKT turf tyres keeps ground compaction to a minimum
- 3.0m³ collection hopper capacity
Application
Airfields and military bases
Educational establishments
Firebreak Mowing
Parks and recreation
Specifications
| Model |
MJ29-153 |
MJ29-153-HL |
MJ27-160 GB |
MJ27-180 GB |
MJ2000 |
| Overall Width |
1.67m (5’5″) |
1.67m (5’5″) |
1.90m (6’2″) |
2.10m (6’10”) |
2.30m (7’6″) |
| Working Width |
1.53m (5’1″) |
1.53m (5’1″) |
1.60m (5’2″) |
1.80m (5’10”) |
2.0m (6’6″) |
| Overall height |
1.07m (3’7″) |
2.74m (9′) |
3.4m (11’2″) |
3.4m (11’2″) |
3.85m (12’7″) |
| Tipping height |
1.07m (3’7″) |
2.0m (6’6″) |
2.2m (7’3″) |
2.2m (7’3″) |
2.1m (6’11”) |
| Collector Capacity |
0.95m³ |
0.95m³ |
2.0m³ |
2.3m³ |
3.0m³ |
| Power (HP) |
25-40 |
25-40 |
45-75 |
50-85 |
50-120 |
| PTO rpm |
540 |
540 |
540 |
540 |
540 |
| Belts |
3 |
3 |
4 |
4 |
4 |
| No of Flails |
24 |
24 |
56 |
62 |
32 |
| Weight |
390kg |
470kg |
750kg |
785kg |
1900kg |
