Major TS-XTreme Trailing Shoe

Major TS-XTreme Trailing Shoe
Gallery 1
Gallery 2
Gallery 3

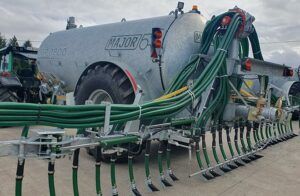

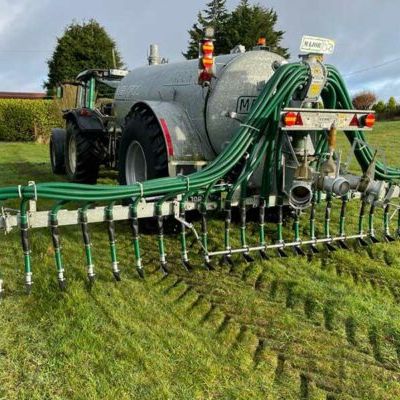

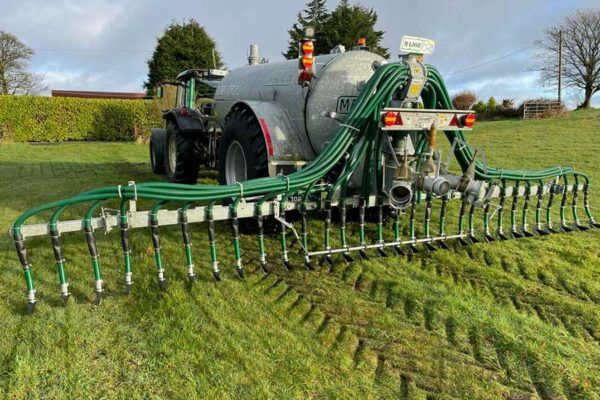

The Major TS-XTreme Slurry Applicator is a lightweight, low-emissions system is designed for rough ground conditions, while maximising nutrient utilisation. These units combine the flexibility of the dribble bar system with the precision application of the trailing shoe.  It is suitable for farmers where tanker size and weight are a consideration.

Flexible hoses are fitted to a sturdy pipe outlet and are spaced 25 cm apart.  Slurry is dispersed in uniform lines, even on sloping ground.  A galvanised divider splits the grass and the slurry is placed in a neat line at the root of the grass through the rubber boots.



The divider plate is different to the steel bar on a trailing shoe, in that it does not force the boot into to the ground. This means simpler hydraulics, less over all weight and can be left on the ground when turning at headlands unlike trailing shoes.

The Major TS-XTreme Slurry Applicator  is lighter than the Major Trailing Shoe yet still delivers neat uniform lines of slurry on the ground, like one would expect from a Trailing Shoe unit.

Each unit is divided into three sections. The middle section behind the tanker is lifted by a lateral pipe connected to each wing. When the wings are folded into transport position, the mid-section also lifts. This protects the unit when reversing and for safe road transport.

The TS-Xtreme is available in 7.5m, 9.6m, 10m and 12m working widths with the popular 7.5m model weighing less than 500kg.  The units can be retro-fitted, factory-fitted or available as a kit to update an existing Major Dribble Bar.

Features

  • Outlets spaced 25cm apart
  • Choice of Vogelsang or Mastek macerator
  • Can be used with splash plate in place
  • Parking stand and lighting board supplied as standard
  • Available as retro-fit, factory-fitted or conversion kit
  • Eligible for TAMS 3 support

Application

Application Unit

Specifications

Model MJ93-750 MJ93-960 MJ93-1000 MJ93-1250
Overall Width 7.73m (25’ 5”) 9.8m (33’ 2”) 10.25m (33’ 8”) 12.32m (40’ 8”)
Working Width 7.5m (24’ 7”) 9.6m (31’ 6”) 10.1m (33’ 2”) 12.2m (40’)
Transport Width 2.4m (8’) 2.4m (8’) 2.2m (7’2”) 2.2m (7’2”)
Transport Height 2.8m (9’ 2”) 2.6m (8’ 10”) 2.4m (7’11”) 2.4m (7’11”)
Single/Double fold Single Double Double Double
Wing Pivot 100° 180° & 85° 100° 100°
No. of Outlets 30 38 40 48
Weight 470 kg 870 kg 900 kg 990 kg
Macerator Vogelsang or Mastek Vogelsang, Mastek or AOL Vogelsang or Mastek Vogelsang or Mastek
Number of hydraulic spools required 2 double acting hydraulic spools 2 double acting hydraulic spools 2 double acting hydraulic spools 2 double acting hydraulic spools
Spacing 25 cm 25 cm 25 cm 25 cm
Bar/Spring system Divider bar Bar Bar Bar
Rear fill Yes Yes Yes Yes
Note Can be self retro fitted onto 20″ or 30″ back door Factory fitted. For 2000 gallon tankers and up Factory fitted. For 2400 gallon tankers and up Factory fitted. For 2600 gallon tankers and up

If you'd like more information about a Major TS-XTreme Trailing Shoe, please call 01446 792786 or email Email.
