KRONE EasyCut B 1050 CV Collect – High-Output Mower Conditioner Combination

The KRONE EasyCut B 1050 CV Collect is a high-performance mower combination designed for large-scale mowing, intensive crop conditioning and efficient swath formation. When combined with a suitable front-mounted mower, it offers an overall working width of approximately 9.30 m to 10.45 m, helping maximise daily output during short harvesting windows.

Integrated cross conveyor belts allow the crop to be merged directly behind the mower units, reducing the need for additional passes with a rake. Combined with the proven CV steel tine conditioner, the EasyCut B 1050 CV Collect delivers fast mowing, effective conditioning and efficient crop handling in one operation.

Key Features

Working Width up to 10.45 m

The two rear mowing units each provide a working width of 3.60 m. When combined with a front mower, the complete setup achieves approximately:

• 9.30 m – 10.45 m working width

This makes the machine particularly suitable for high-output forage harvesting.

Integrated Cross Conveyor Belts

The cross conveyor belts can move the cut crop inward to create a more concentrated swath.

This can help reduce the need for a separate raking pass and improve overall harvesting efficiency.

CV Steel Tine Conditioner

The integrated CV conditioner uses robust V-shaped steel tines to process the crop immediately after cutting.

This helps encourage faster moisture loss and more even drying.

Adjustable Mower Position

The distance between the rear mower units can be adjusted from approximately:

• 2,100 mm – 3,250 mm

This allows the mower combination to be adapted to different front mower widths, field conditions and overlap requirements.

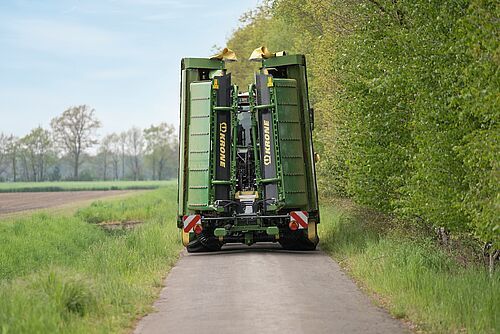

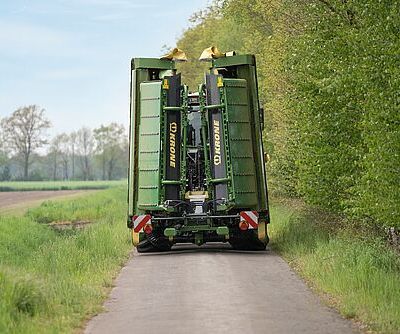

Compact Transport Design

Despite the large working width, the machine folds to approximately:

• 2.95 m transport width
• 4.00 m transport height

This makes movement between fields practical for such a high-capacity machine.

Proven KRONE Cutterbar Technology

Each mower unit uses proven KRONE disc mower technology for clean cutting, smooth crop flow and dependable performance.

Performance & Operation

• Rear mower width: 2 × 3.60 m
• Combined working width: Approx. 9.30 – 10.45 m
• Distance between mower units: Approx. 2.10 – 3.25 m
• Transport width: Approx. 2.95 m
• Transport height: Approx. 4.00 m
• Conditioner: CV steel tine
• Cross conveyor belts: Yes
• Mowing components: 6 discs + 2 drums per unit
• Power requirement: Approx. 200 hp
• Weight: Approx. 3,990 kg
• Linkage: Category III / IV

Cross Conveyor Belt System

Efficient Crop Merging

The integrated belts move the conditioned crop inward after mowing, allowing a more concentrated swath to be formed.

Fewer Field Passes

By combining mowing, conditioning and crop merging, the system can reduce the need for separate raking operations.

Flexible Swath Formation

The belts provide operators with greater flexibility over how the crop is presented for the following harvesting operation.

CV Conditioning System

Intensive Crop Conditioning

V-shaped steel tines process the crop evenly across the working width.

Faster Drying

Conditioning breaks the waxy outer layer of the plant and helps moisture escape more quickly.

Improved Harvesting Efficiency

Faster and more even wilting can shorten the time between mowing and collecting the forage.

Key Benefits

Maximum Mowing Output

Working widths up to 10.45 m allow very large grassland areas to be covered quickly.

Mowing, Conditioning & Merging

Three important forage operations can be combined in a single pass.

Reduced Raking Requirement

Cross conveyor belts can create a suitable swath directly behind the mower combination.

Faster Crop Drying

The CV conditioner helps accelerate moisture loss and improve wilting consistency.

Flexible Working Width

Adjustable rear mower positioning helps maintain correct overlap across varying conditions.

Compact Road Transport

The machine folds to approximately 2.95 m wide despite its large field working width.

Applications

The KRONE EasyCut B 1050 CV Collect is ideal for:

• Grass silage harvesting
• Large-scale forage production
• High-output mowing
• Dairy and livestock farms
• Agricultural contractors
• Farms looking to reduce raking passes
• Mowing and swath merging in one operation

Why Choose the KRONE EasyCut B 1050 CV Collect?

The KRONE EasyCut B 1050 CV Collect combines a working width of up to 10.45 m, intensive CV conditioning and integrated cross conveyor belts in one high-capacity mowing system. It is designed for operators looking to maximise daily output while reducing the number of separate forage harvesting passes.

Enquire Now

For more information on the KRONE EasyCut B 1050 CV Collect, including pricing, specifications, front mower combinations and availability, contact KP Agri Ltd. Our team can help you choose the right KRONE mowing setup for your operation.
