Marshall Agricultural Flat / Bale trailers / BC-36-TAN

Features at a Glance

• Durabar non slip floor
• 6mm folded side rails complete with 5/8" rope hooks and dedicated ratchet strap points
• Rolled chanel, square design chassis (eliminates the potential of material fatigue due to flexing)
• Rigid 21” fixed headboard (allows harvest ladders to be held rigidly and increases overall rigidity)
• Standard galvanized harvest ladders, with an adjustable rear ladder.
• Standard spring drawbar provides a smooth ride for the operator.
• The quality split oscillating rocker tandem with its Devlon bushes only adds to the overall level of stability required for this type of work; spring suspension is also offered as a no cost option
• "Dealer Fit Ready" - the trailer is designed to allow 80% of the optional extras to be retrofitted.
• Genuine Marshall Spares – a full collection of spares are available for all models in the range

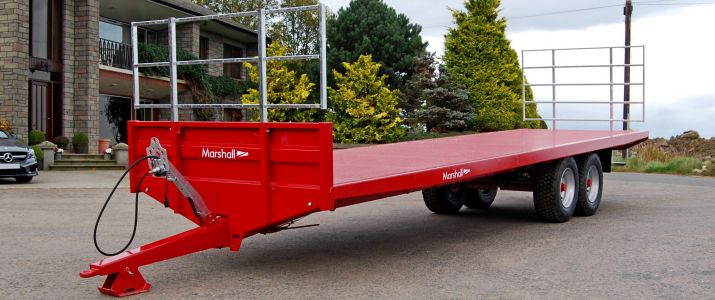

The Marshall BC/36-Tandem is the largest model in our bale trailer range, and provides a massive carrying capacity and excellent Marshall build quality.

It has box section bearers which provides exceptional strength and prevents water from prematurely rusting the trailer. The strength of the trailer is further enhanced by heavy-duty channels forming a square chassis that extends the length of the trailer and also reduces flexing when loading the trailer. Another standard feature that also helps deal with flexing when loading is the 21” headboard, which improves the overall rigidity of the trailer. The BC/36-Tandem uses 10 stud 420 x 180 commercial axles and a 24 ton mono-leaf spring set as standard.

The standard floor on a BC/36-Tandem is a 4mm durabar floor that significantly reduces the potential for loads to move during transport.

The BC/36-Tandem also comes with harvest ladders as standard, ensuring it is capable of carrying all types of load safely from the moment it is purchased. The harvest ladders are galvanised as standard to ensure they do not rust if left outside when not in use. The rear ladder is also adjustable and can be positioned straight or angled depending on the type of bales. On top of this all Marshall bale trailers have hydraulic brakes and lights as standard to comply with all the necessary health and safety legislation. Finally the BC/36-Tandem also includes a spring drawbar as standard, which provides a smooth ride for the tractor operator and prevents the tractor bouncing.

The BC/36-Tandem is the flagship model in our range and provides customers with an efficient and flexible trailer that can meet any customer’s needs.
