Dieci Agri Pivot T70

Dieci Agri Pivot T70

The Agri Pivot T70 is a high-performance articulated telehandler designed for farms requiring greater lift capacity while maintaining compact manoeuvrability. Combining the agility of a wheel loader with the reach of a telescopic boom, it is ideal for confined yards and demanding daily operations.

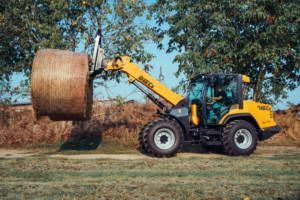

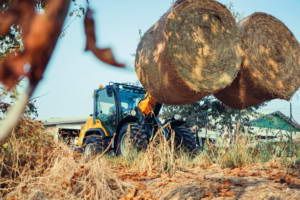

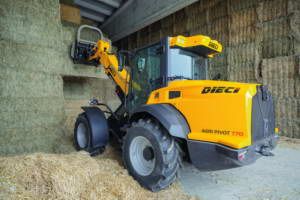

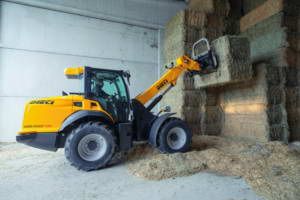

With a maximum lift capacity of 3,000 kg and a lifting height of 5.2 metres, the Agri Pivot T70 is suited to bulk handling, bale work and general farm duties. Powered by a 115 HP Perkins Stage V engine, it delivers strong torque and efficient performance with reduced operating costs.

The articulated chassis with double-pivot central articulation ensures excellent stability and manoeuvrability in tight spaces. The longitudinal rear-mounted engine and forward boom position improve maintenance access and provide clear side and rear visibility.

The electronically controlled hydrostatic “Shift on Fly” transmission with ECO function ensures smooth gear changes while moving, improving efficiency and operator comfort.

Key Specifications

Maximum capacity: 3,000 kg
Maximum lifting height: 5.2 m
Maximum power: 85.9 kW (115 HP)
Maximum speed: 40 km/h
Unladen weight: 7,700 kg
Engine: Perkins 3,621 cm³, Stage V / Tier 4f
Hydraulic pump capacity: 117 l/min
Maximum operating pressure: 25 MPa
Transmission: Electronically controlled hydrostatic Shift on Fly with ECO
Standard tyres: 405/70-24
