Dieci Agri Pivot T60

Dieci Agri Pivot T60

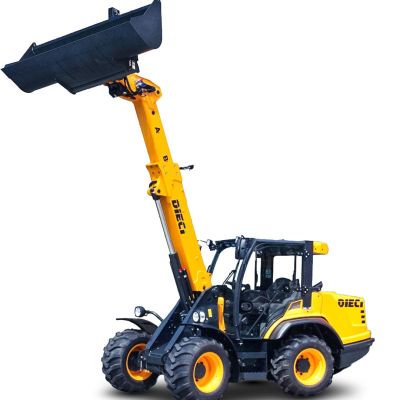

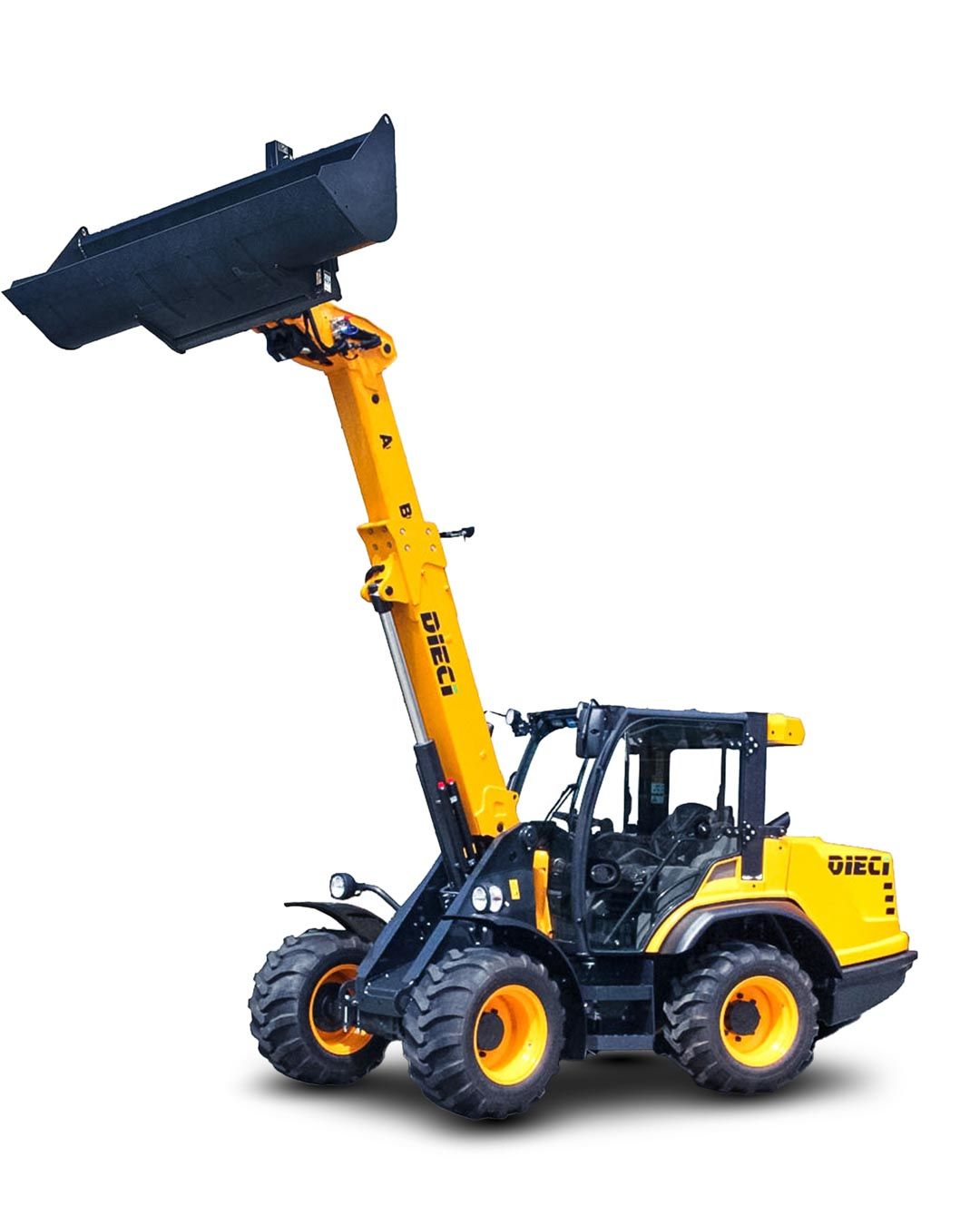

The Agri Pivot T60 is an articulated agricultural telehandler designed for maximum agility in confined working environments. Combining the versatility of a telehandler with the manoeuvrability of a wheel loader, it is ideal where space is limited but lifting performance is still required.

With a maximum lift capacity of 2,250 kg and a lifting height of 4.7 metres, the Agri Pivot T60 offers excellent capability for yard work, livestock units and general farm handling. Powered by a 73 HP Kubota Stage V engine, it delivers efficient performance with low operating costs.

The articulated chassis with double-pivot central articulation ensures stability, strength and precise manoeuvrability. The longitudinal rear-mounted engine and centrally positioned boom improve service access and provide excellent side and rear visibility.

Highly versatile, the Agri Pivot T60 can operate both telehandler attachments and wheel loader accessories, making it suitable for a wide range of agricultural applications.

Key Specifications

Maximum capacity: 2,250 kg
Maximum lifting height: 4.7 m
Maximum power: 54.6 kW (73 HP)
Maximum speed: 40 km/h
Unladen weight: 5,840 kg
Engine: Kubota 3,331 cm³, Stage V / Tier 4f
Hydraulic pump capacity: 101 l/min
Maximum operating pressure: 23 MPa
Transmission: Hydrostatic with variable displacement pump
Standard tyres: 405/70 R20
