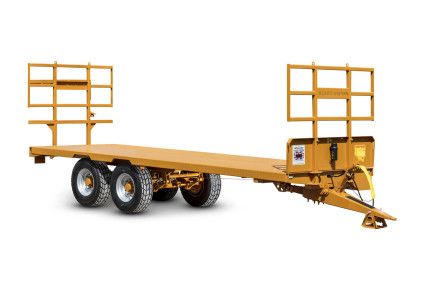

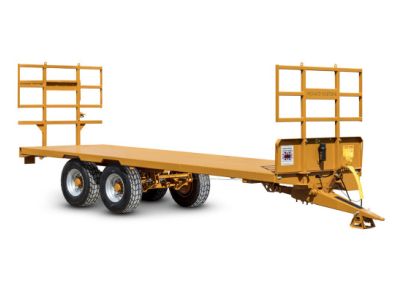

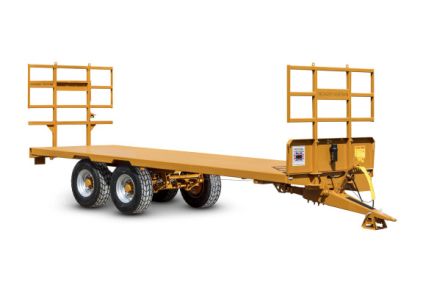

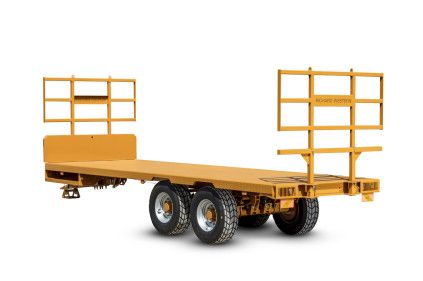

RW Bale and Pallet Trailer

Richard Western Flatbed Trailers

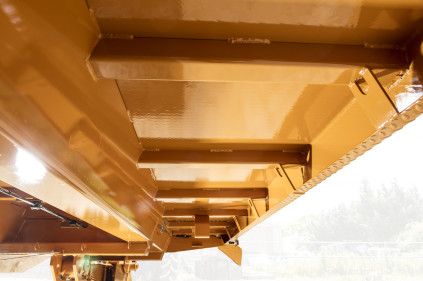

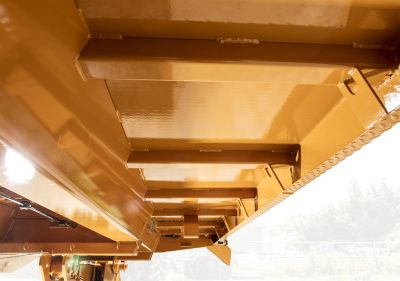

The Richard Western Flatbed Trailer range includes tandem and tri-axle models, designed with an integrated platform and chassis to maximise strength and reduce twisting under load. All trailers feature a 4.5mm steel chequered plate platform, providing a durable and hard-wearing load surface.

As standard, trailers are fitted with an integrated kerb-side strap storage box, along with front and rear sockets for headboards and ladders. A removable 2ft headboard is included, complete with sockets for a front bale ladder, offering flexibility for a wide range of applications.

Models fitted with 445/45R19.5 wheels are available with a low rider platform, reducing platform height to maximise payloads or accommodate livestock containers.

HS Model

The HS (High Speed) model is designed for use with high-speed tractors and is fitted with commercial-spec high-speed axles and 420mm x 180mm brakes, ensuring safe and stable transport performance at higher road speeds.
