HORSCH Leeb CT – Front Tank for Liquid Fertiliser & Crop Protection

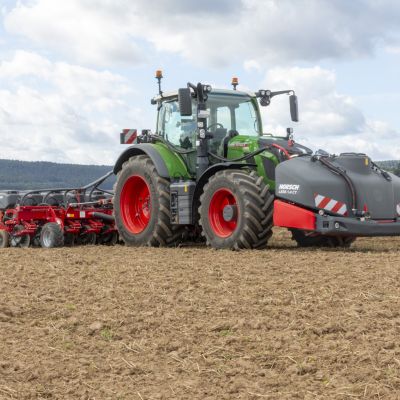

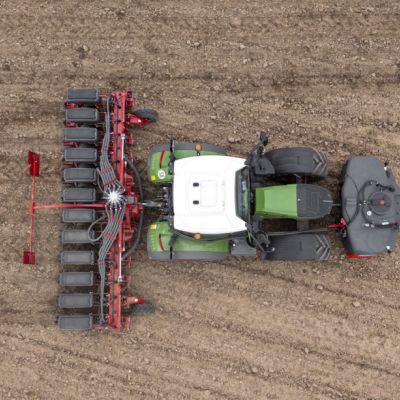

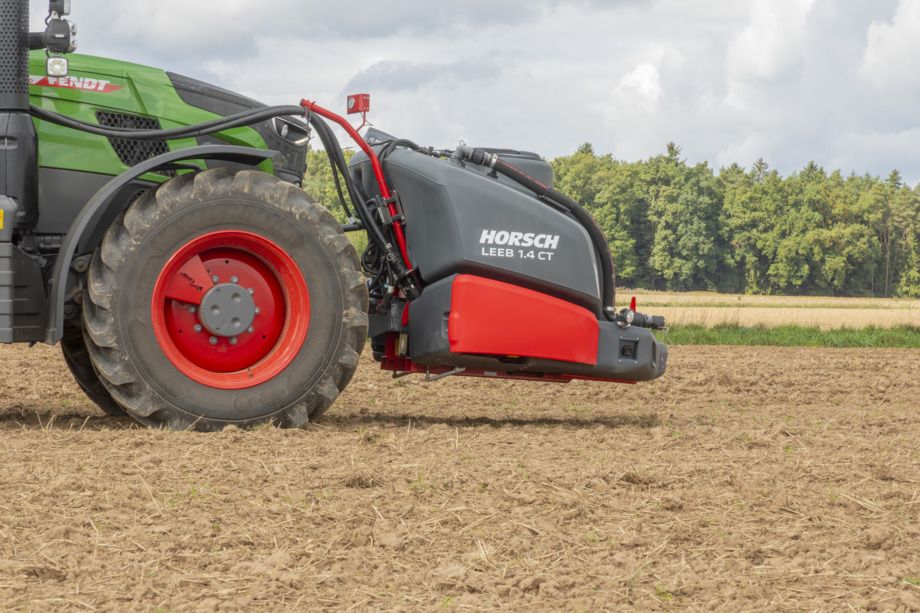

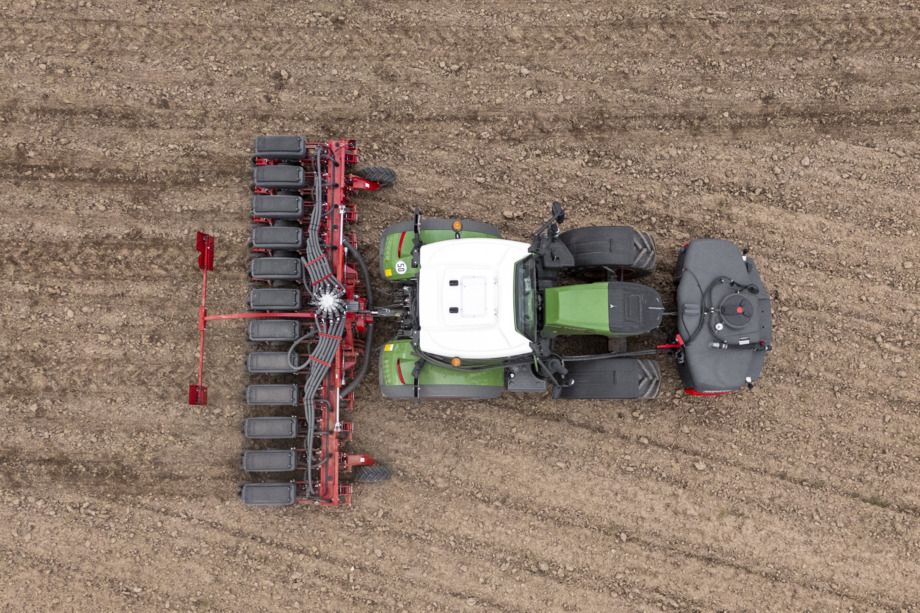

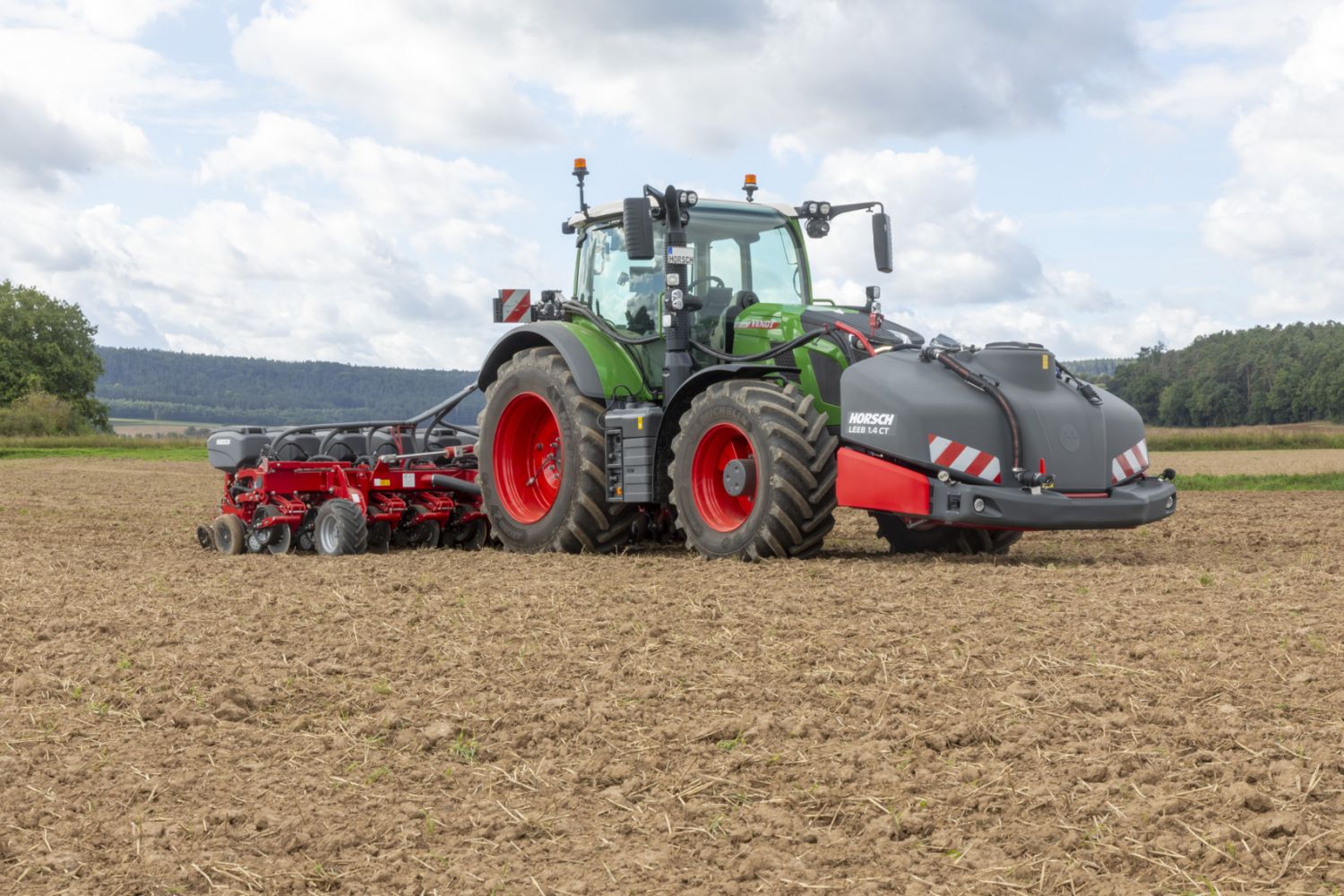

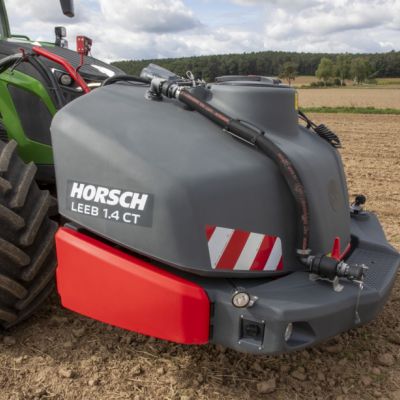

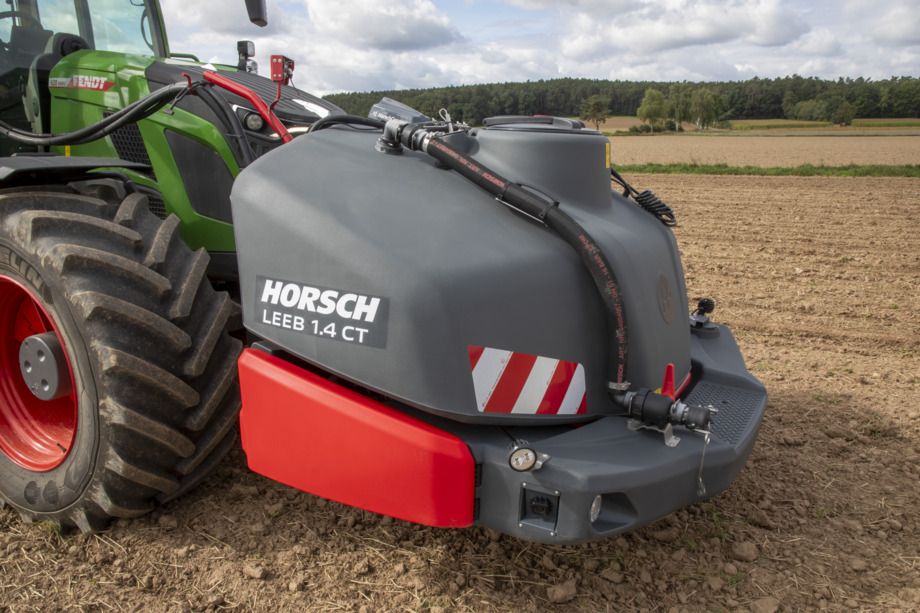

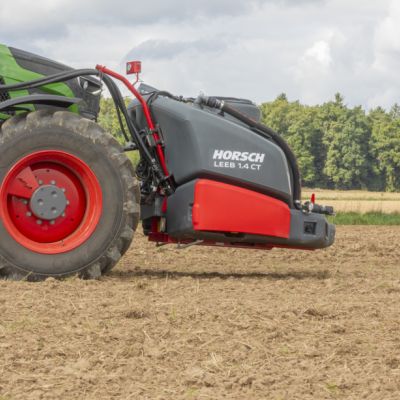

The HORSCH Leeb CT is a versatile front-mounted tank designed for the precise application of liquid fertiliser and crop protection products in combination with HORSCH mounted implements. It allows liquid products to be applied in the same pass as drilling, precision seeding or mechanical hoeing.

Available with capacities of 1,400, 1,800 and 2,400 litres, the Leeb CT combines a compact design with precise hydraulic metering, ISOBUS operation and an integrated cleaning system. Its close-mounted design also provides an optimum centre of gravity in relation to the tractor's front axle.

Key Features

Three Tank Capacities

The Leeb CT is available with capacities of:

• 1,400 litres
• 1,800 litres
• 2,400 litres

This allows the front tank to be matched to different tractor and implement combinations.

Precise Hydraulic Metering

A hydraulic pump provides accurate metering of liquid fertiliser or crop protection products during operation.

Compact Front-Mounted Design

The compact construction positions the tank close to the tractor's front axle, helping maintain good weight distribution and manoeuvrability.

ISOBUS Operation

The standard HORSCH I-Manager ISOBUS interface provides straightforward control and integration with the tractor.

Integrated Induction Hopper

An induction hopper provides convenient filling and handling of crop protection products.

Fresh Water Tank

The integrated fresh water tank supports reliable cleaning of the system after application.

Performance & Operation

• Tank capacities: 1,400, 1,800 or 2,400 litres
• Mounting: Front 3-point linkage
• Pump: Hydraulic
• Water circuit: Basic
• Control system: ISOBUS / HORSCH I-Manager
• Operation: Mechanical suction and pressure-side valves
• Standard equipment: Coupling triangle and mechanical level indicator

Implement Compatibility

The HORSCH Leeb CT can be combined with various mounted implements to apply liquid products during other field operations, including:

• Precision seed drilling
• Conventional drilling
• Mechanical hoeing
• Liquid fertiliser application
• Crop protection applications

This allows multiple operations to be completed in a single field pass.

Additional Options

• Certified front-view camera system
• Separate camera monitor
• Dual camera lenses
• LED apron lighting
• Additional front weights

Key Benefits

Multiple Operations in One Pass

Liquid fertiliser or crop protection products can be applied while drilling, precision seeding or hoeing, helping reduce additional field passes.

Increased Efficiency

Combining operations saves time and can reduce tractor hours and field traffic.

Precise Application

The hydraulic pump provides accurate liquid metering for consistent application.

Excellent Tractor Balance

The compact design keeps the tank close to the front axle for improved weight distribution.

Easy Attachment

The standard coupling triangle allows convenient mounting and removal of the front tank.

Straightforward Cleaning

The integrated fresh water tank and accessible valve system provide convenient cleaning after use.

Applications

The HORSCH Leeb CT is ideal for:

• Liquid fertiliser application
• Crop protection applications
• Precision drilling combinations
• Seed drilling
• Mechanical hoeing
• One-pass crop establishment
• Farms looking to combine multiple field operations

Why Choose the HORSCH Leeb CT?

The HORSCH Leeb CT provides a flexible way to integrate liquid fertiliser or crop protection application with other field operations. With capacities up to 2,400 litres, precise hydraulic metering and ISOBUS control, it provides an efficient solution for reducing field passes while maintaining accurate application.

Enquire Now

For more information on the HORSCH Leeb CT, including pricing, tank capacities, implement compatibility and availability, contact KP Agri Ltd. Our team can help you choose the right Leeb CT configuration for your tractor and implement combination.
