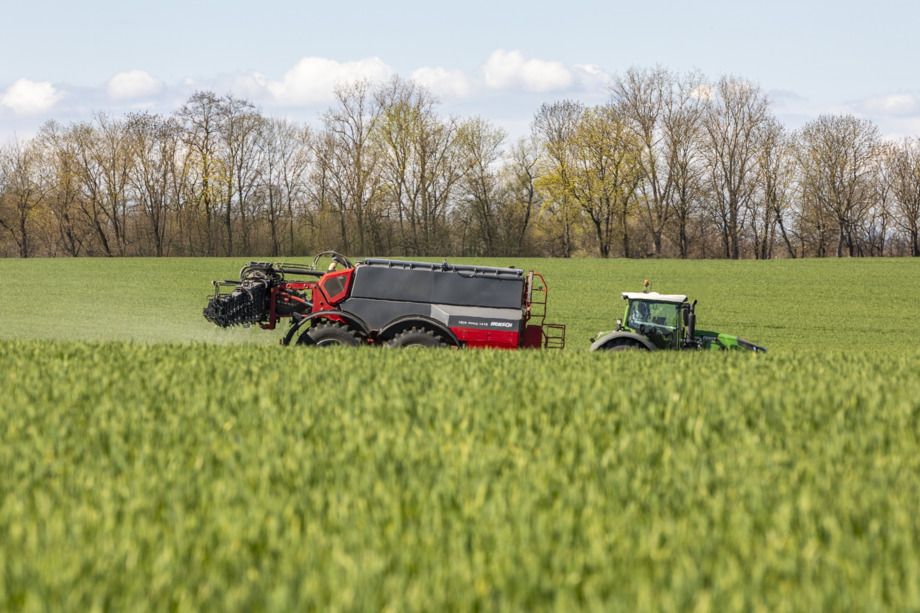

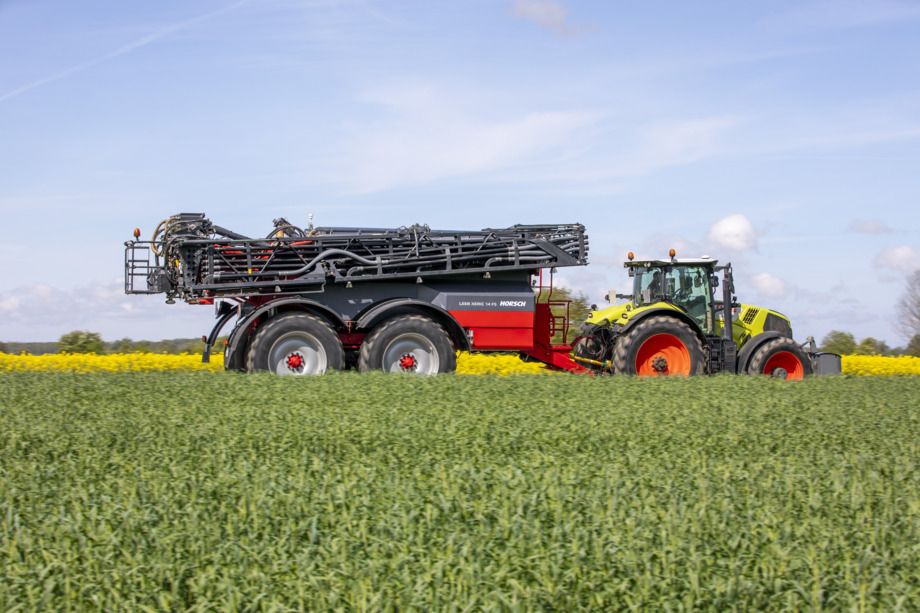

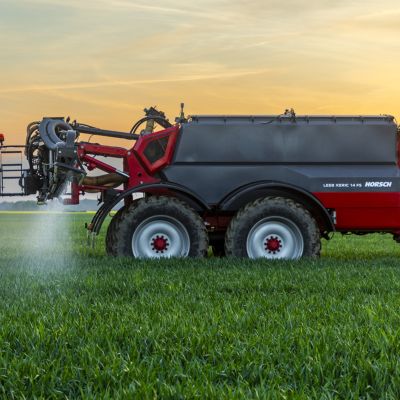

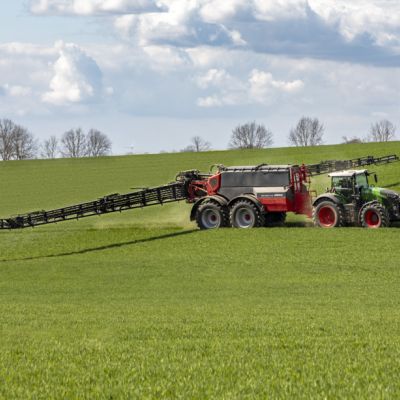

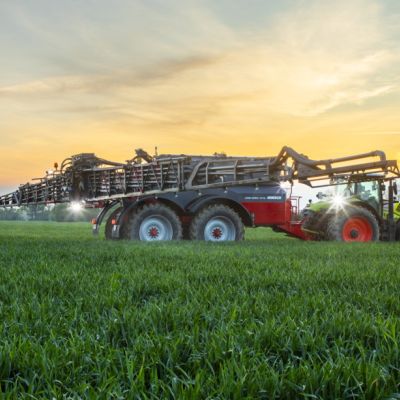

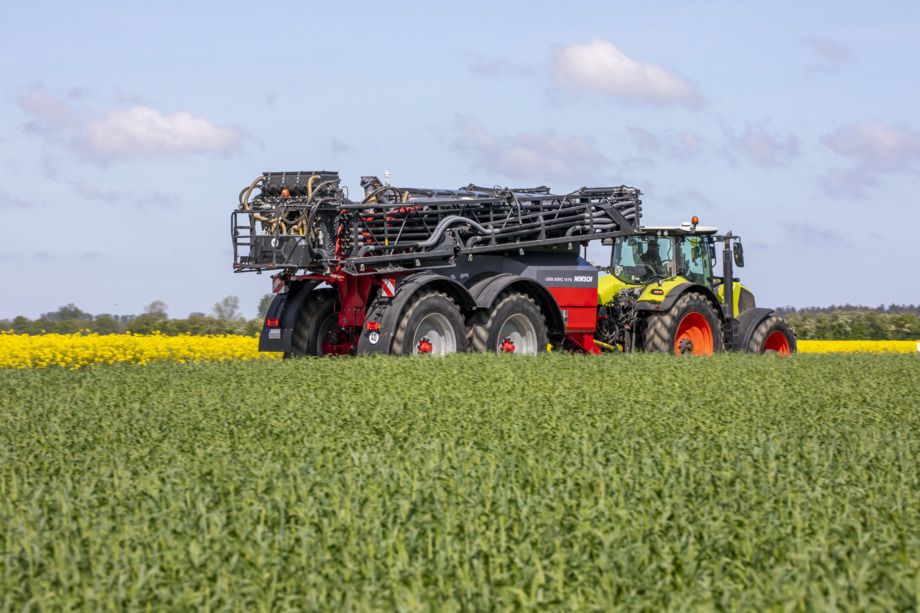

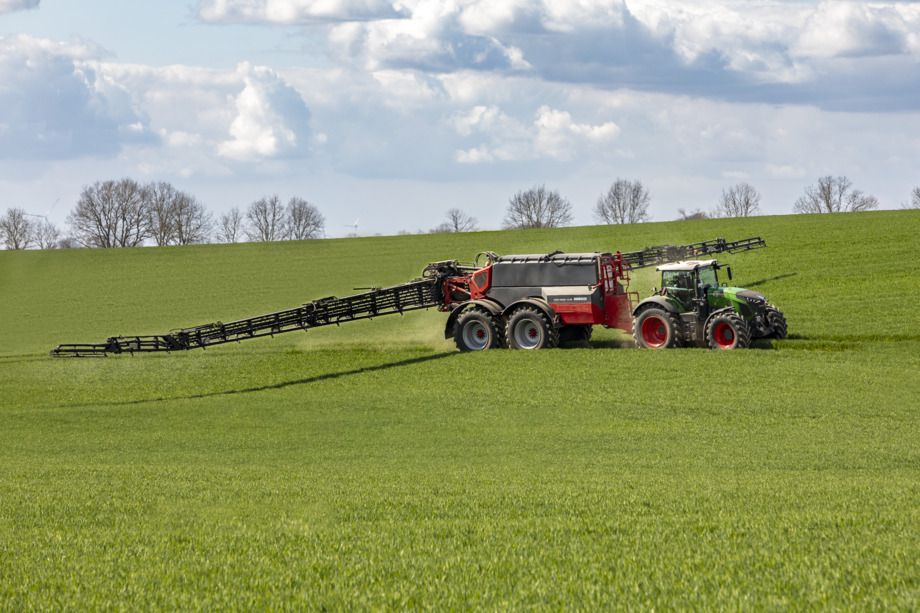

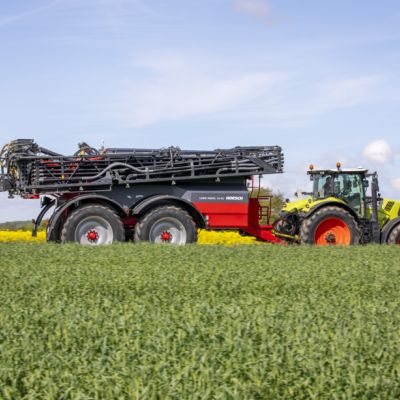

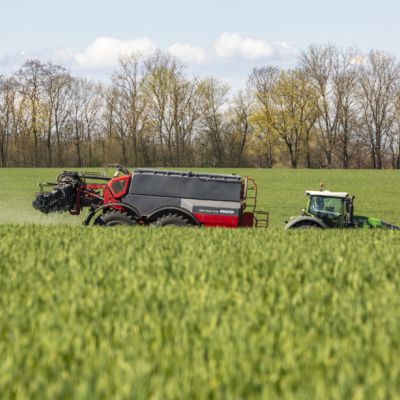

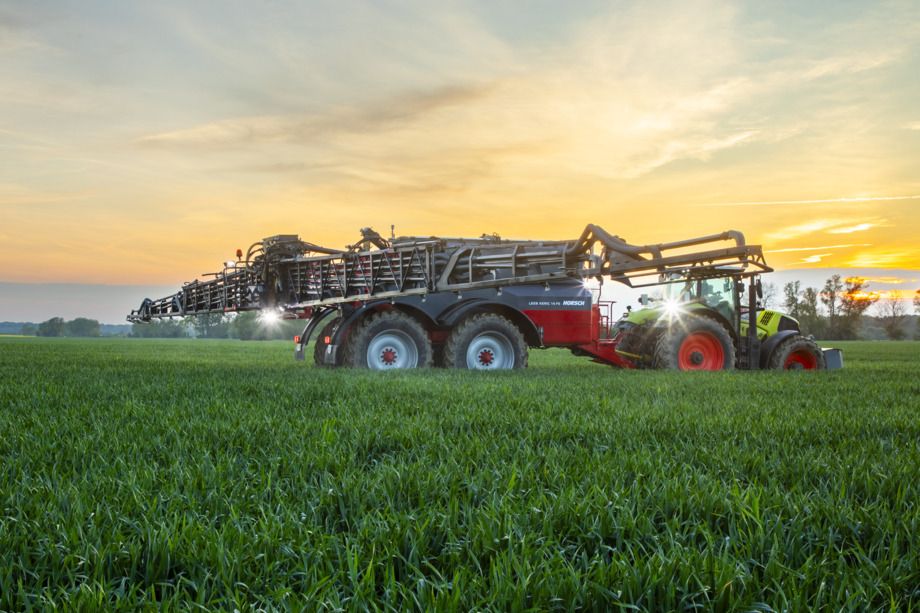

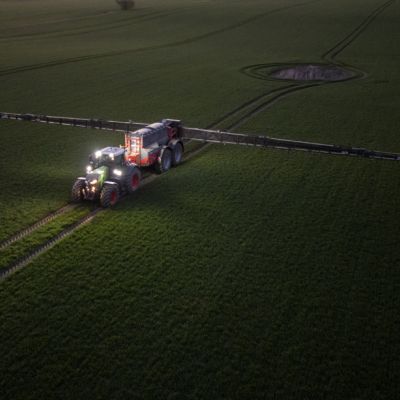

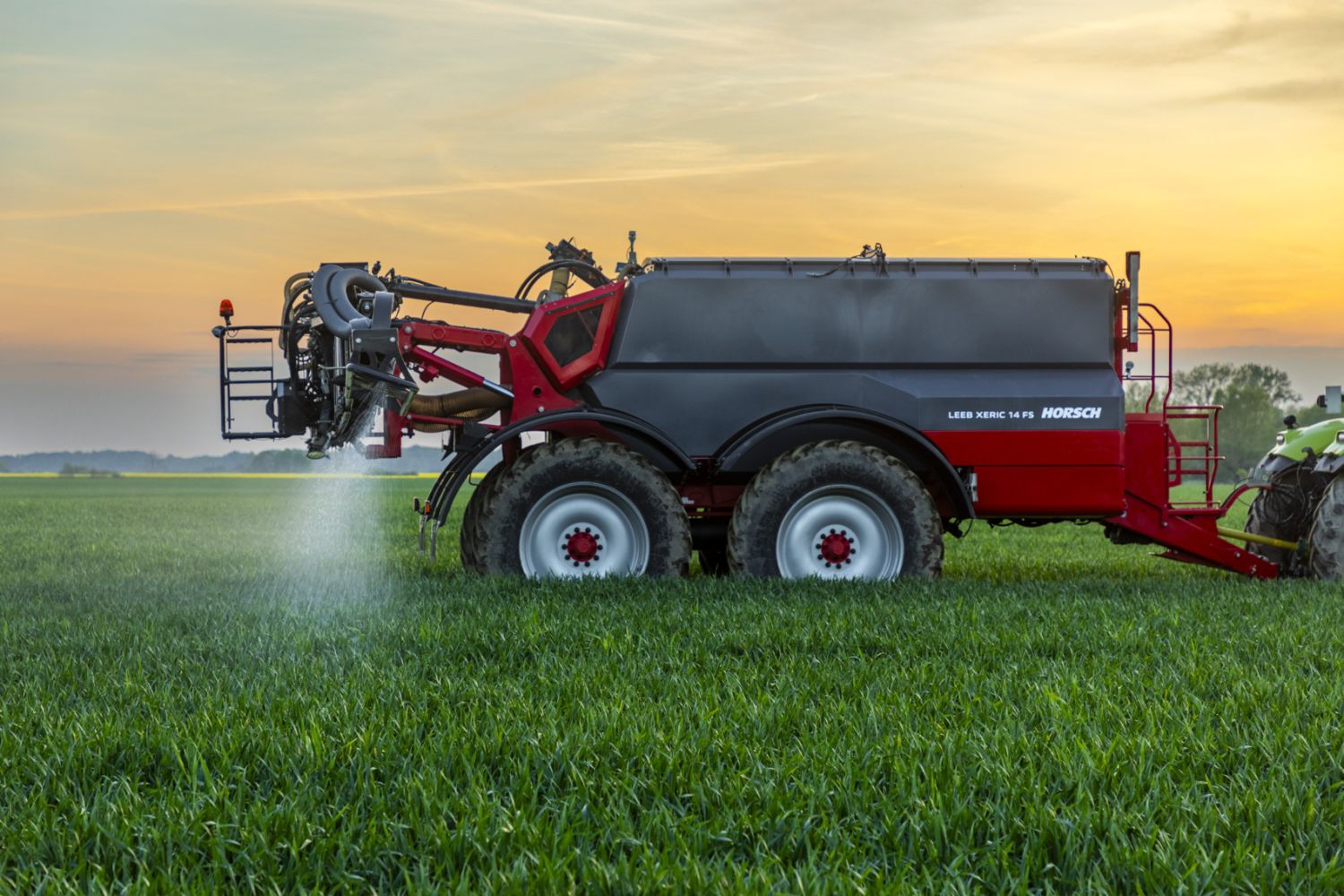

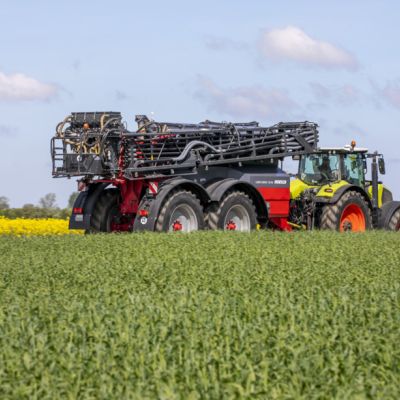

HORSCH Leeb Xeric FS – High-Capacity Pneumatic Fertiliser Spreader

The HORSCH Leeb Xeric FS is a high-capacity pneumatic fertiliser spreader designed for precise, efficient and high-output fertiliser application. With a 14,000 litre hopper and working widths of 36, 39 and 48 m, it is built for farms and contractors looking to cover large areas within short fertilisation windows.

Unlike conventional spreading systems, the Xeric FS pneumatically transports fertiliser to the boom, providing accurate distribution across the full working width with reduced sensitivity to wind and variations in fertiliser quality. Intelligent metering, automatic calibration and a tandem axle chassis combine precision with excellent field performance.

Key Features

14,000 Litre Capacity

The large 14,000 litre hopper provides excellent field capacity, reducing refill frequency and helping maximise daily output.

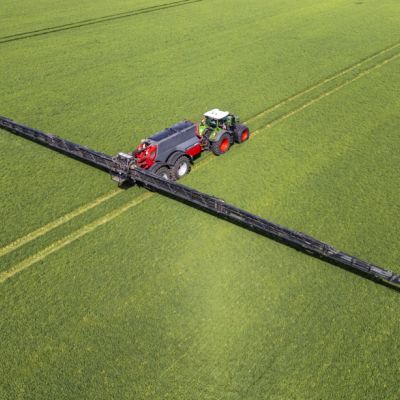

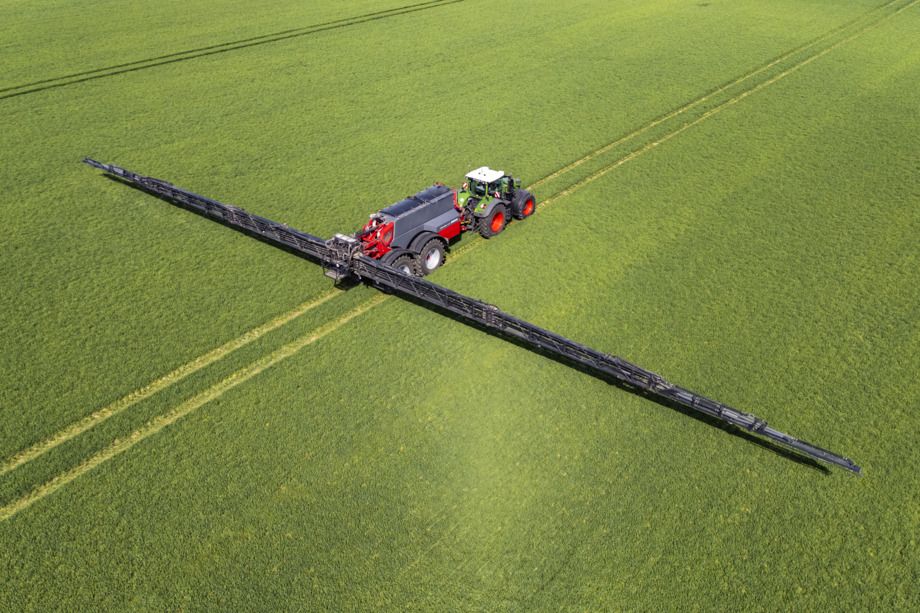

Working Widths up to 48 m

The Xeric FS is available with working widths of:

• 36 m
• 39 m
• 48 m

This makes it particularly suited to large-scale, high-output fertiliser application.

Pneumatic Fertiliser Distribution

Fertiliser is pneumatically transported through tubes to the boom, providing consistent distribution across wide working widths with minimal influence from changing wind conditions.

PrecisionCalibrationSystem

The HORSCH PrecisionCalibrationSystem uses a defined-volume metering box mounted on weighing bars to provide quick and accurate fertiliser calibration.

12-Section Metering

Twelve individual metering rotors allow fertiliser application to be controlled across separate sections of the machine.

Intelligent Vertical Load Control

An intelligent vertical load regulation system helps compensate for changing weight distribution as the hopper empties, improving stability and tractor traction.

Performance & Operation

• Hopper capacity: 14,000 litres
• Working widths: 36, 39 or 48 m
• Metering sections: 12
• Metering system: PrecisionCalibrationSystem
• Distribution: Pneumatic
• Chassis: Tandem axle
• Maximum tyre diameter: Up to 2.19 m
• Steering: Optional active steering on both axles

Precision Fertiliser Application

PrecisionCalibrationSystem

Fertiliser is transported from the hopper by augers into a metering box with a defined volume. The metering box sits on weighing bars, allowing the system to quickly calibrate the selected fertiliser.

PrecisionSpread Pro

PrecisionSpread Pro provides curve compensation, adjusting application across the working width when travelling around bends.

PrecisionSpread Pro Plus

PrecisionSpread Pro Plus provides variable application rates across individual sections for even greater control and precision.

Low-Wear Distribution

Fertiliser enters the air stream only after passing through the metering system. This reduces the amount of high-speed fertiliser movement within the machine, helping minimise wear and reduce the required airflow.

Additional Options

• PrecisionSpread Pro with curve compensation
• PrecisionSpread Pro Plus with variable section application
• Active steering on both axles
• Tyres up to 2.19 m diameter
• Multiple working width configurations

Key Benefits

Precise Fertiliser Distribution

Pneumatic distribution provides consistent application across the full working width, even with varying fertiliser qualities.

Reduced Wind Influence

The boom-based pneumatic system reduces the impact of changing wind conditions compared with conventional broadcast spreading.

High Daily Output

A 14,000 litre capacity combined with working widths up to 48 m allows large areas to be covered efficiently.

Automatic Calibration

The PrecisionCalibrationSystem simplifies calibration when changing between different fertiliser products.

Section Control

Twelve individual metering sections provide accurate application and help reduce unnecessary overlaps.

Excellent Field Stability

The tandem axle chassis, intelligent vertical load control and optional active steering provide excellent stability and accurate tracking.

Applications

The HORSCH Leeb Xeric FS is ideal for:

• High-output fertiliser application
• Large arable farms
• Agricultural contractors
• Precision fertiliser spreading
• Variable-rate fertiliser application
• Wide working widths
• Farms with long distances between yard and field
• Operations with limited fertiliser transport logistics

Why Choose the HORSCH Leeb Xeric FS?

The HORSCH Leeb Xeric FS combines a 14,000 litre capacity, working widths up to 48 m and precision pneumatic distribution to deliver high-output fertiliser application. Advanced metering, section control and automatic calibration provide the accuracy required for modern nutrient management while maintaining excellent field efficiency.
