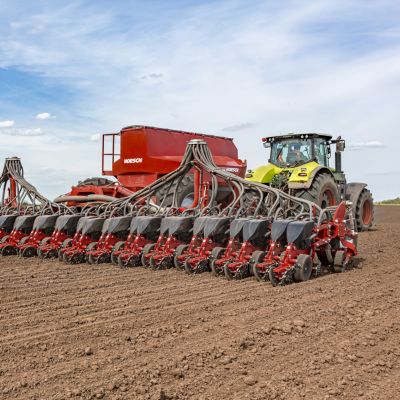

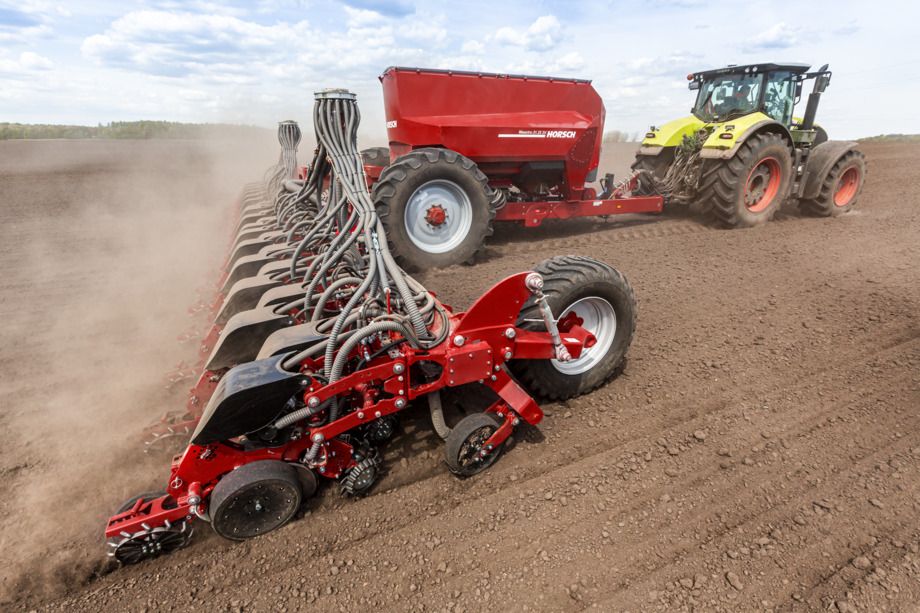

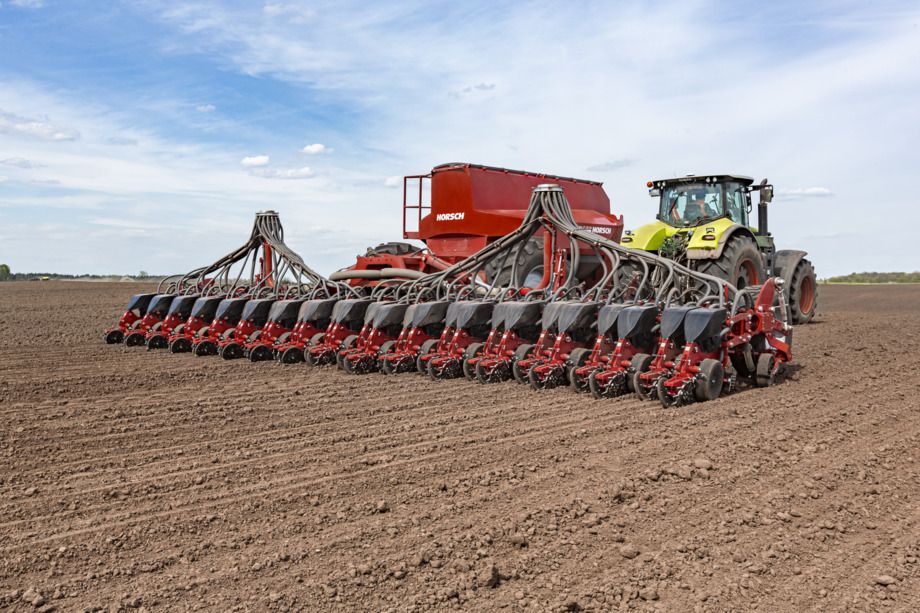

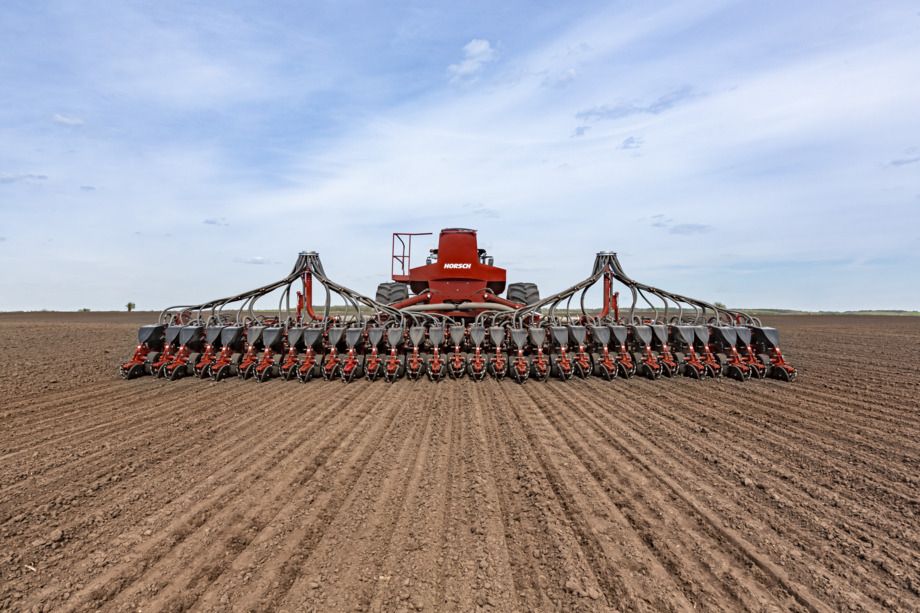

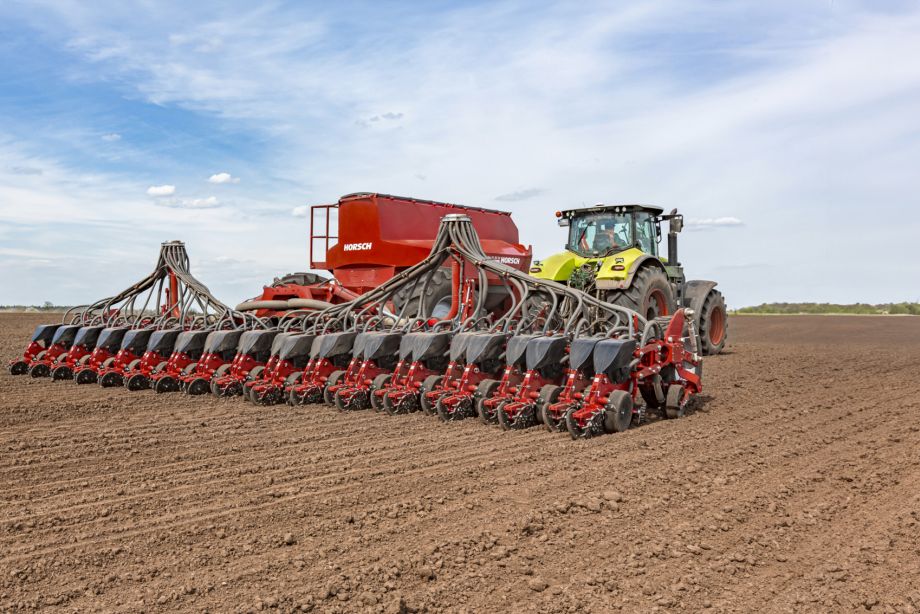

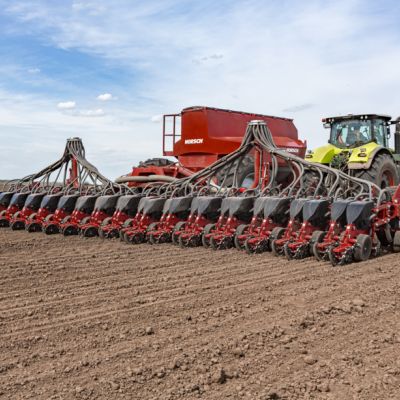

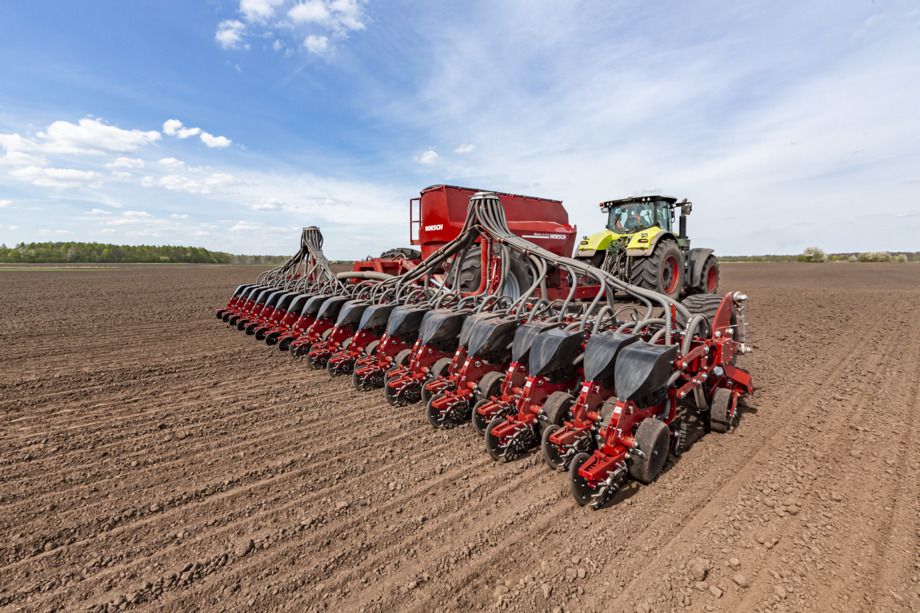

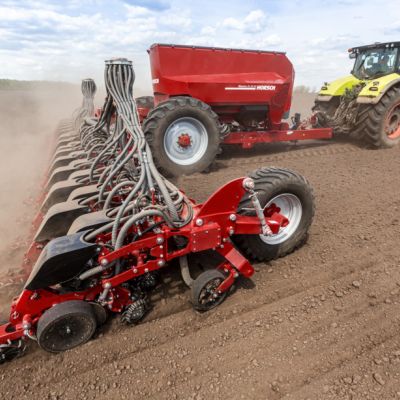

HORSCH Maestro SV SplitRow – Precision Seed Drill with Flexible Row Spacing

The HORSCH Maestro SV SplitRow is a high-output precision seed drill designed to provide maximum flexibility across different crops and row spacings. Its innovative SplitRow system allows operators to quickly switch between wide and narrow row spacings hydraulically without the need for additional tools.

Combined with AirVac seed metering, large central seed and fertiliser hoppers and hydraulic coulter pressure of up to 350 kg per row, the Maestro SV SplitRow provides accurate single-grain placement across a wide range of crops and field conditions.

Key Features

SplitRow System

The SplitRow system allows two different row spacings to be used with one machine, providing greater flexibility across different crops within the rotation.

Hydraulic Row Lifting

Individual rows can be hydraulically lifted to quickly change the row spacing without tools, making it easy to switch the machine between different crops.

Flexible Crop Establishment

The Maestro SV SplitRow can be configured for crops including:

• Maize
• Soybeans
• Legumes
• Oilseed rape
• Sunflowers
• Sorghum

AirVac Metering System

The HORSCH AirVac system accurately meters individual seeds at each row for precise single-grain placement.

Main Tank Supply System

The MTS (Main Tank Supply System) pneumatically transports seed from the central hopper to the individual row units, reducing the need for separate seed hoppers on each row.

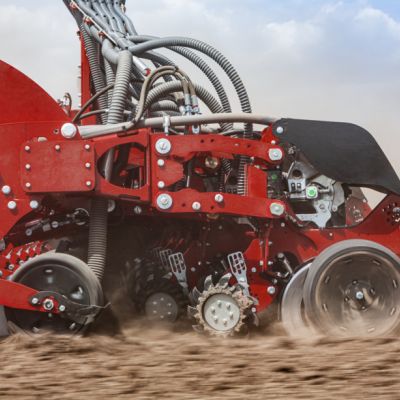

High Coulter Pressure

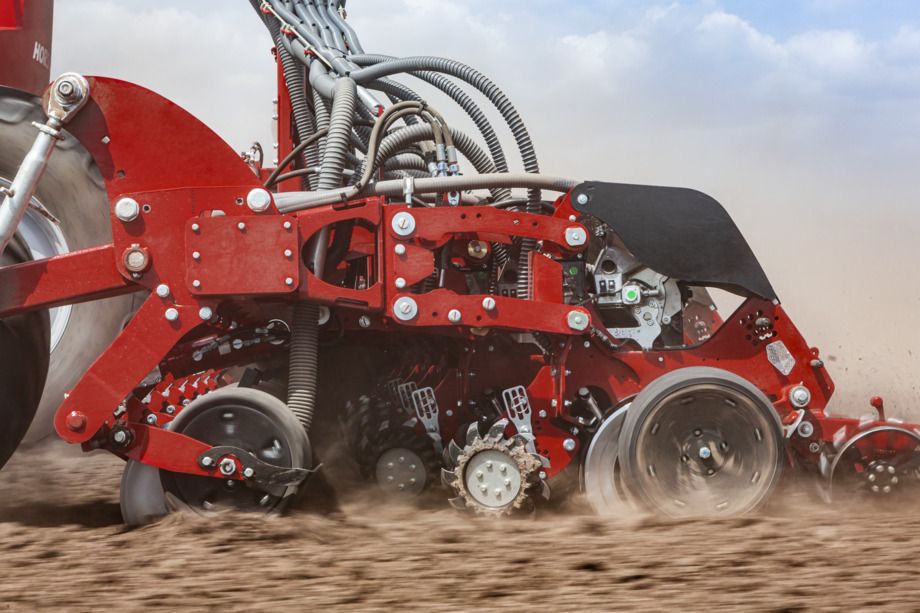

Hydraulic cylinders on each row unit provide coulter pressures of up to 350 kg per row, helping maintain accurate seed depth in challenging conditions.

Performance & Operation

• Metering system: HORSCH AirVac
• Seed supply: MTS – Main Tank Supply System
• Maximum coulter pressure: Up to 350 kg per row
• Row adjustment: Hydraulic
• Standard fertiliser capacity: 5,400 litres
• Standard seed capacity: 2,200 litres
• Optional hopper configuration: 3,800 litres seed / 3,800 litres fertiliser
• Fertiliser placement: Single disc fertiliser coulter

Row Spacing Options

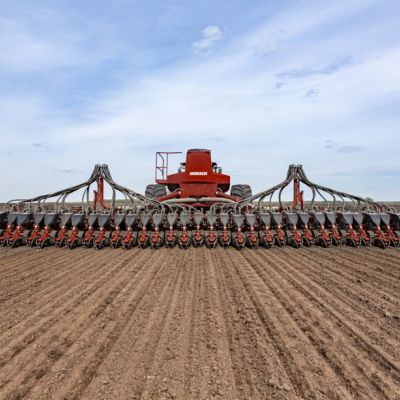

The SplitRow concept allows the same machine to work with different row spacings depending on the crop.

Wide Row Spacing

Suitable for crops such as maize with row spacings including:

• 70 cm
• 75 cm
• 30 inch

Narrow Row Spacing

Activating the additional rows allows crops to be established at half the conventional row spacing, including:

• 35 cm
• 37.5 cm
• 15 inch

This allows one machine to be used across a much wider crop rotation.

Hopper & Fertiliser Options

Standard Configuration

• 5,400 litre fertiliser hopper
• 2,200 litre seed hopper

Optional 50:50 Configuration

For farms growing a larger proportion of legumes, an optional hopper configuration provides:

• 3,800 litres for seed
• 3,800 litres for fertiliser

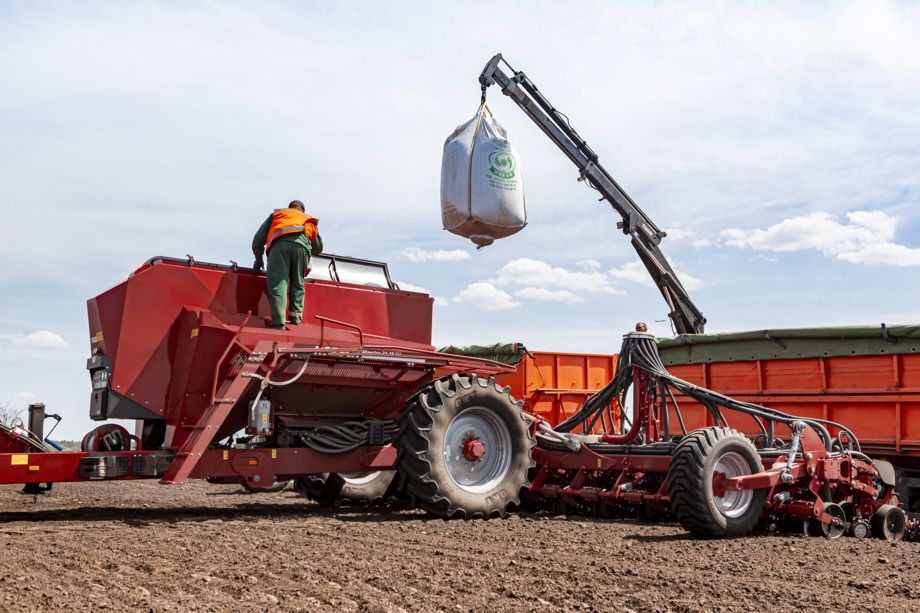

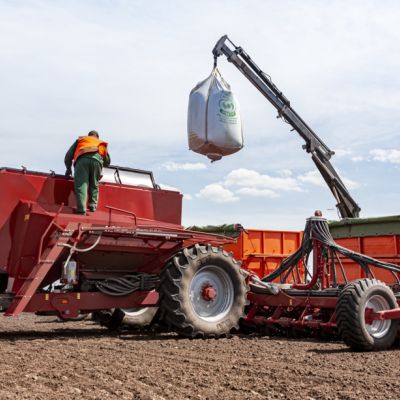

Seed and fertiliser are both supplied pneumatically from the central seed wagon.

Additional Technology

AutoForce

The optional AutoForce coulter pressure regulation system automatically adjusts coulter pressure according to changing soil conditions to help maintain consistent sowing depth.

Hydraulic Coulter Pressure

Coulter pressure can also be manually adjusted from the terminal, providing up to 350 kg of pressure per row.

Central Fertiliser Metering

Fertiliser is accurately metered using proven HORSCH technology before being placed by the single disc fertiliser coulters.

Key Benefits

Two Row Spacings with One Machine

SplitRow technology allows the drill to be quickly adapted to different crops without requiring a separate machine.

Accurate Single-Grain Placement

AirVac metering provides precise singulation for consistent seed spacing and crop establishment.

Increased Crop Flexibility

The machine can establish maize, soybeans, oilseed rape, sunflowers, sorghum and other crops with different row spacing requirements.

Large Hopper Capacity

Central seed and fertiliser storage reduces filling frequency and supports high daily outputs.

Consistent Sowing Depth

High hydraulic coulter pressure and optional AutoForce regulation help maintain accurate seed depth across varying soil conditions.

Quick Setup Changes

Hydraulic row lifting makes switching between wide and narrow row configurations quick and straightforward.

Applications

The HORSCH Maestro SV SplitRow is ideal for:

• Precision maize drilling
• Soybean establishment
• Oilseed rape drilling
• Sunflower drilling
• Sorghum establishment
• Legume drilling
• Mixed crop rotations
• Farms requiring multiple row spacings

Why Choose the HORSCH Maestro SV SplitRow?

The HORSCH Maestro SV SplitRow combines precision seed placement with exceptional flexibility. Its hydraulic SplitRow system, AirVac metering, large central hopper and up to 350 kg coulter pressure per row allow one machine to accurately establish a wide range of crops at different row spacings.
