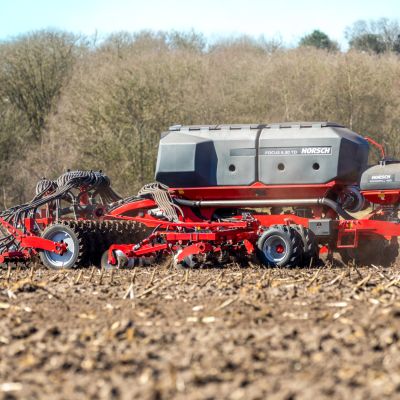

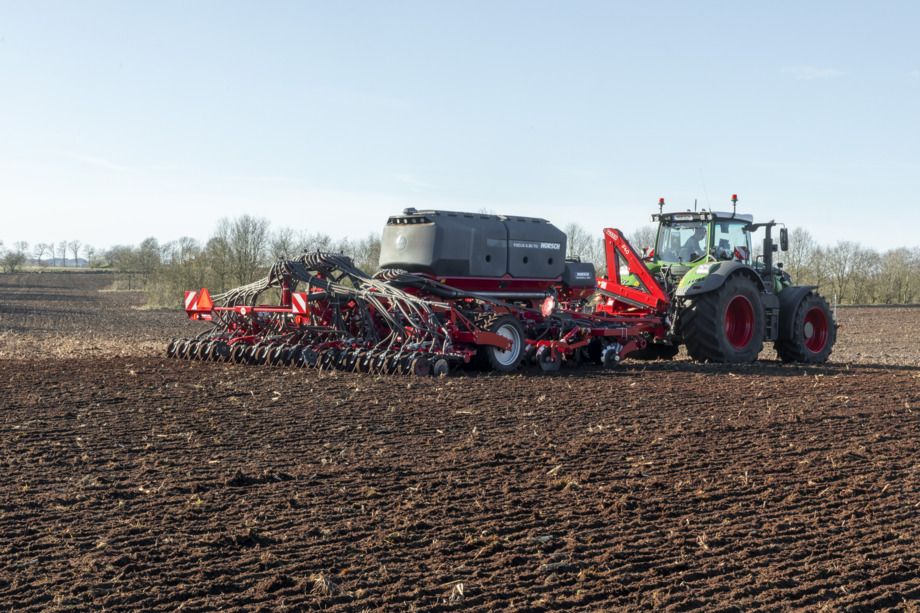

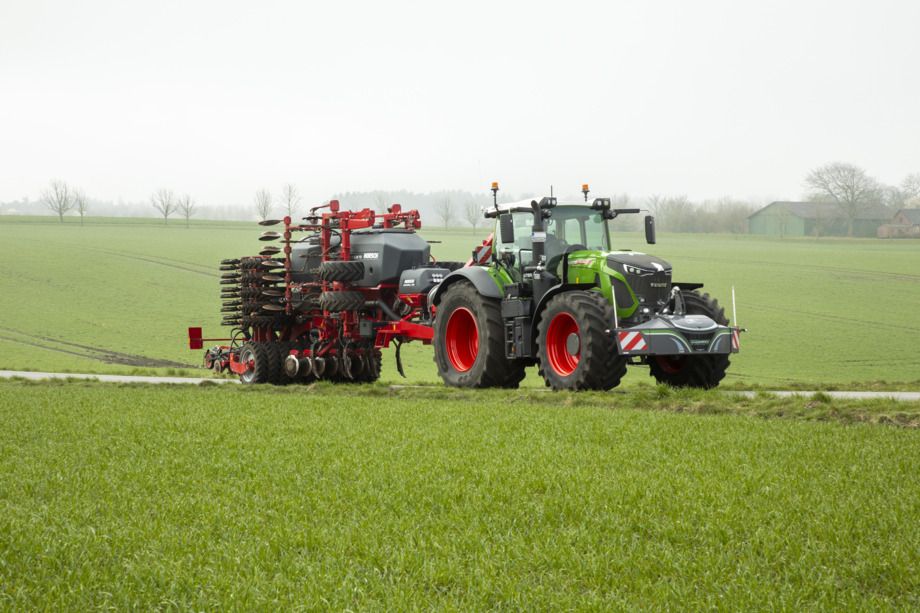

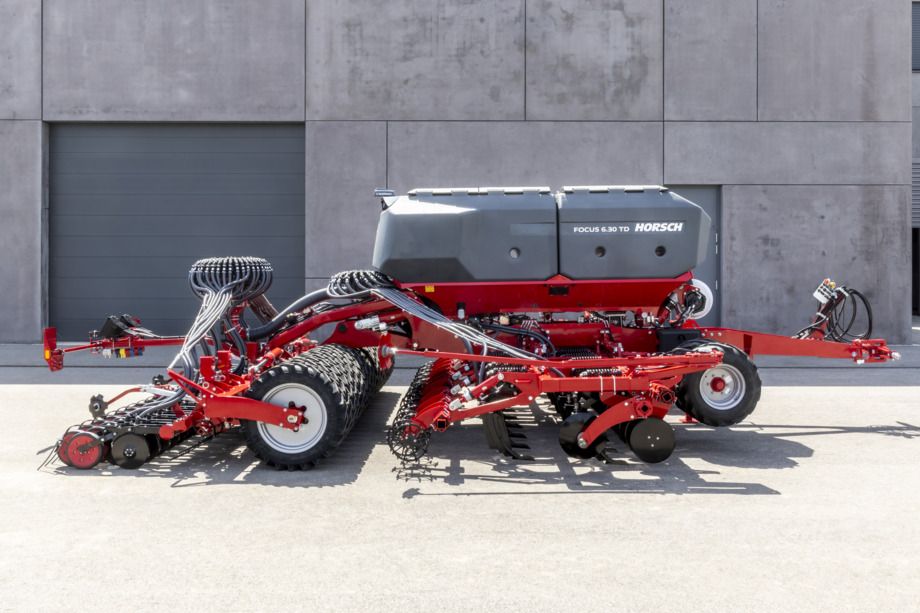

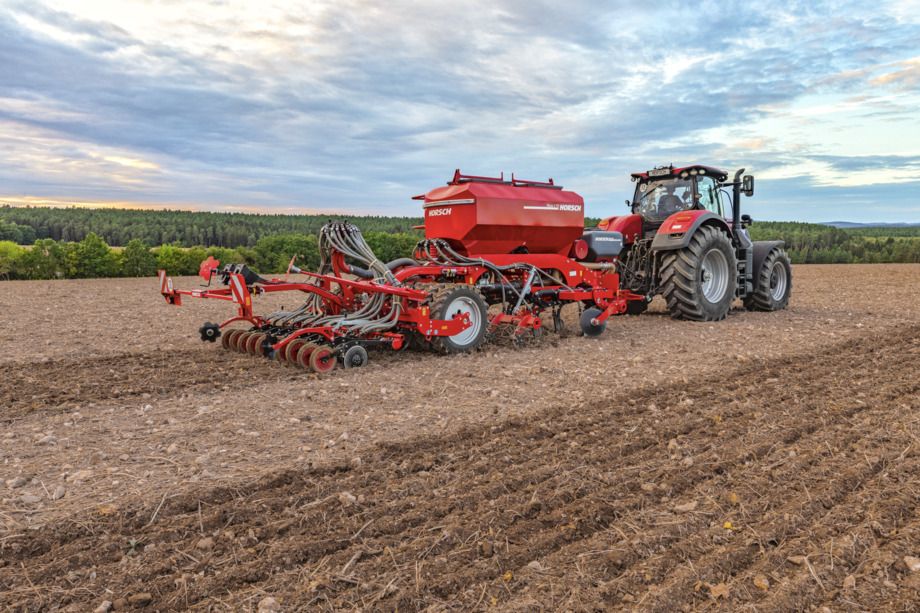

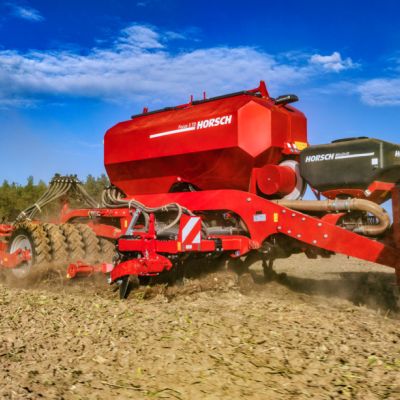

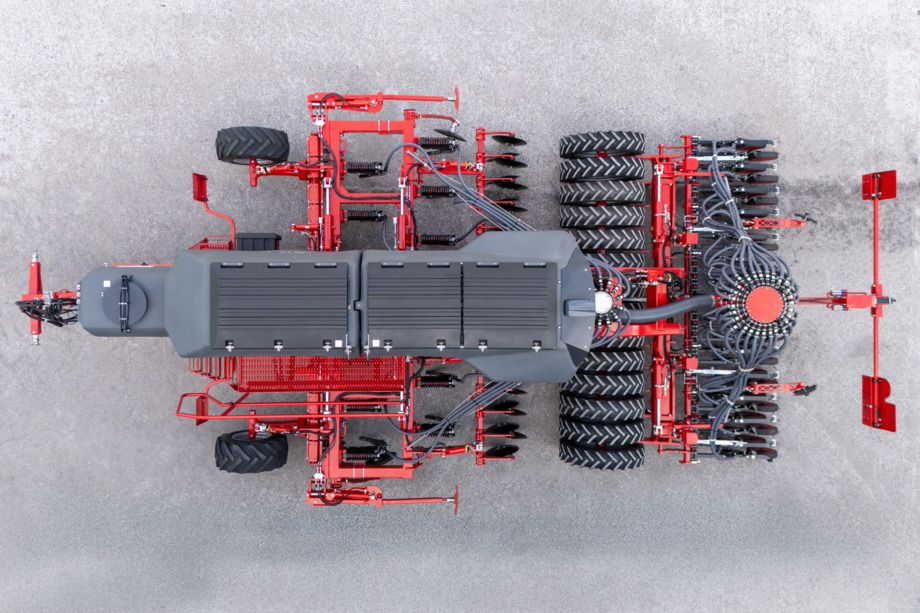

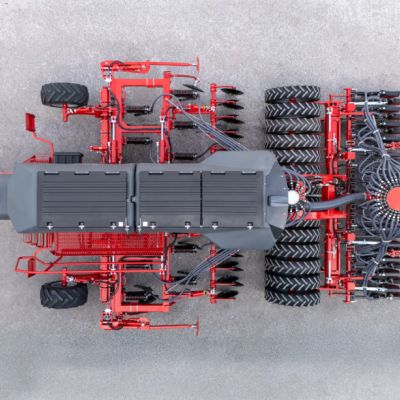

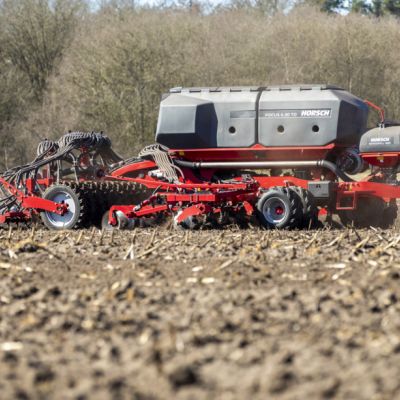

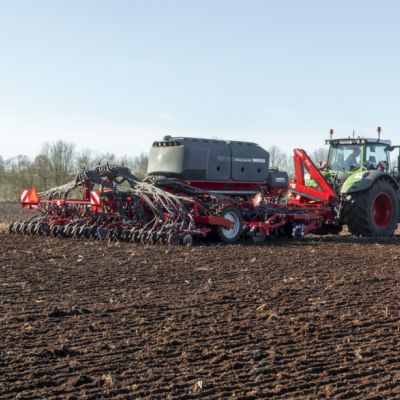

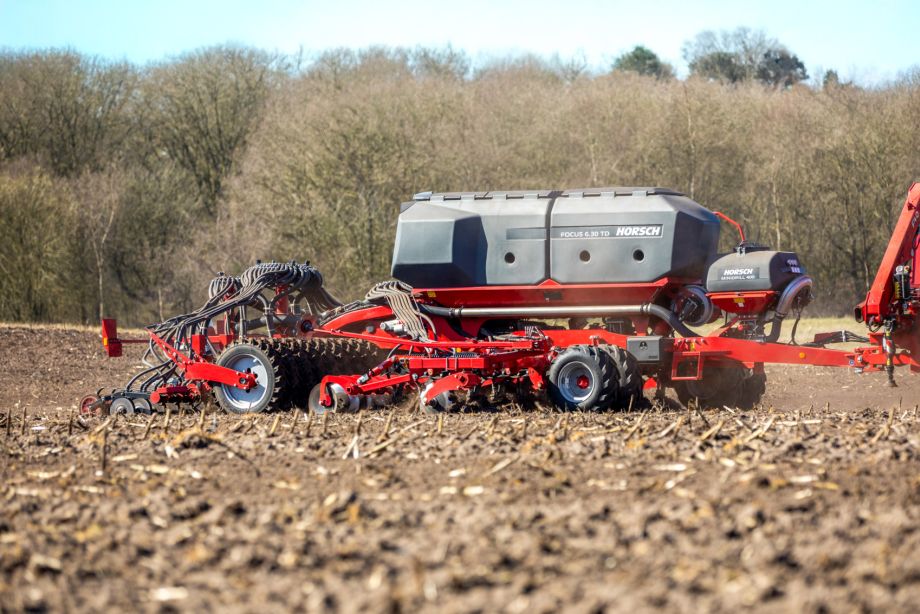

HORSCH Focus TD – Strip-Till Seed Drill for One-Pass Establishment

The HORSCH Focus TD combines soil loosening, targeted fertiliser placement and precise seeding in a single pass. The leading TerraGrip tines clear crop residues from the seed and root zone while loosening the soil to create ideal conditions for strong root development.

Flexible fertiliser placement and interchangeable seeding systems allow the Focus TD to be adapted for cereals, oilseed rape and row crops. Fertiliser can be placed entirely at cultivation depth or split 50:50 between deep and shallow placement, providing flexibility for different soil and weather conditions.

Key Features

Three Operations in One Pass

The Focus TD combines:

• Deep soil loosening
• Targeted fertiliser placement
• Precise seed placement

This creates an efficient one-pass establishment system while placing seed and nutrients exactly where they are required.

TerraGrip Tine System

The leading TerraGrip tines clear harvest residues from the seed furrow and root zone while loosening the soil ahead of the seed coulters.

Flexible Fertiliser Placement

Fertiliser can be applied:

• 100% at cultivation depth
• 50% deep and 50% shallow

This allows fertiliser placement to be adapted to crop requirements and soil conditions.

15 or 30 cm Row Spacing

The Focus TD can be configured with 30 cm row spacing for oilseed rape and row crops or an interchangeable 15 cm seed bar for cereals.

TurboDisc Coulters

The proven TurboDisc double disc coulters provide accurate seed placement and consistent working depth.

Excellent Seedbed Preparation

An adjustable disc levelling system can create defined ridges or an even seedbed, while optional crumbling tools produce additional fine soil ahead of the packer.

Performance & Operation

• Operations: Loosening, fertilising and seeding
• Tine system: TerraGrip
• Cereal row spacing: 15 cm
• Oilseed rape & row crop spacing: 30 cm
• Seed coulter options: TurboDisc or TurboEdge
• Packer: AS-profile tyre packer
• Fertiliser placement: 100% deep or 50:50 split placement

Seeding Configurations

30 cm Row Spacing

For oilseed rape and row crops, a TurboDisc coulter or TurboEdge tine coulter follows directly behind each TerraGrip tine and packer tyre.

15 cm Row Spacing

For cereal drilling, an interchangeable seed bar can be fitted. Two TurboDisc double disc coulters follow each TerraGrip tine and packer tyre to provide a 15 cm row spacing.

Hopper & Fertiliser Options

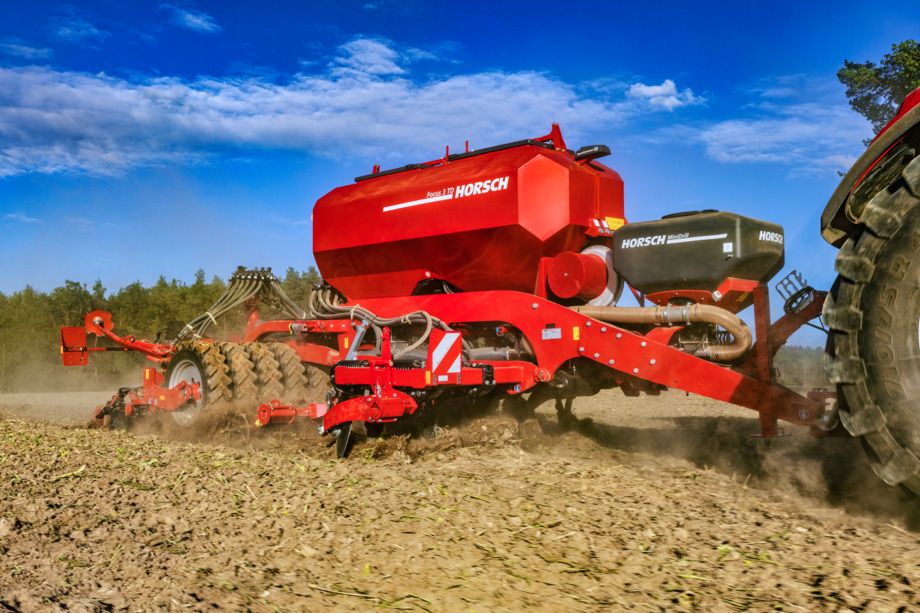

Focus 3 TD

• 3,500 litre double hopper
• 60:40 hopper partition
• Optional 400 litre MiniDrill
• G&F and PPF configurations available

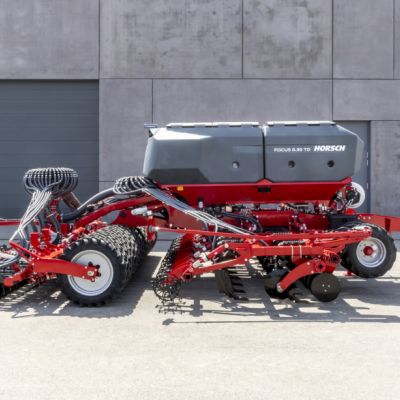

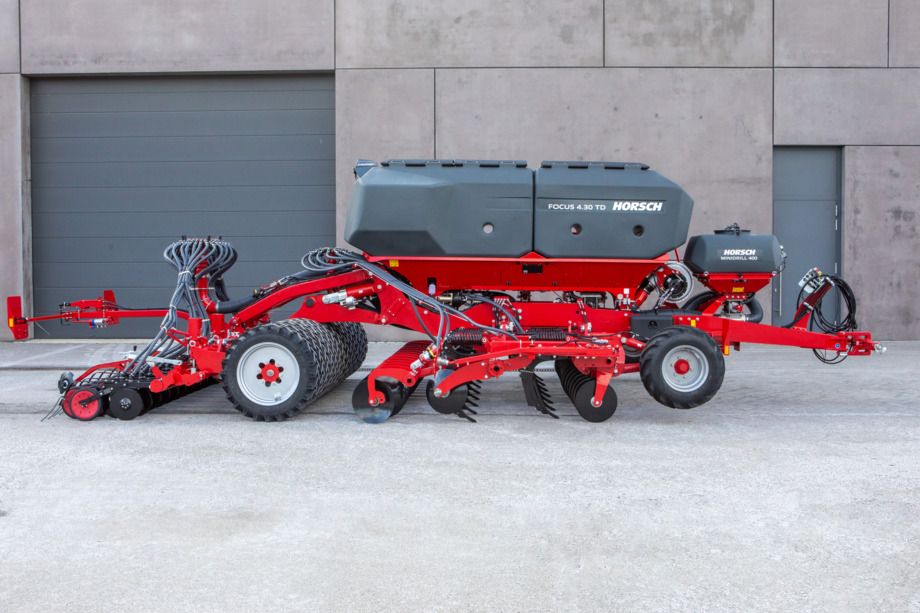

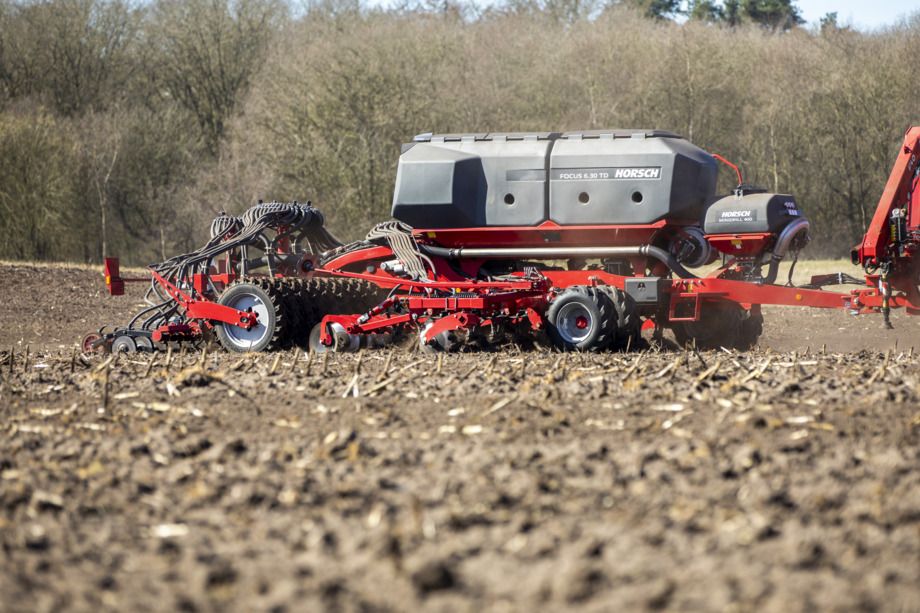

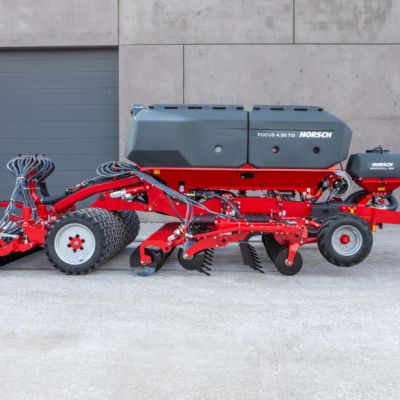

Focus 4.30 TD & 6.30 TD

• 5,000 litre double hopper
• 60:40 hopper partition
• Optional 400 litre MiniDrill
• G&F and PPF configurations available

Additional Options

• TurboDisc double disc coulters
• TurboEdge tine coulters
• 15 cm interchangeable cereal seed bar
• 30 cm row crop configuration
• 400 litre MiniDrill
• Optional crumbling tools
• Adjustable disc levelling system
• G&F fertiliser system
• PPF fertiliser system

Key Benefits

One-Pass Establishment

Loosening, fertilising and seeding are combined into a single operation, reducing the number of field passes required.

Targeted Fertiliser Placement

Flexible fertiliser positioning places nutrients within the root zone to support early crop development.

Strong Root Development

TerraGrip tines create a loosened root zone ahead of the seed, encouraging roots to develop downwards into the soil profile.

Flexible Crop Establishment

Interchangeable seeding systems allow the same machine to establish cereals, oilseed rape and other row crops.

Effective Residue Management

The leading tines clear harvest residues away from the seed zone, helping create consistent conditions for establishment.

Precise Seed Placement

TurboDisc coulters provide accurate seed positioning and consistent drilling depth for even crop emergence.

Applications

The HORSCH Focus TD is ideal for:

• Strip-till crop establishment
• Cereal drilling
• Oilseed rape establishment
• Row crop drilling
• Deep fertiliser placement
• One-pass establishment
• Reduced cultivation systems

Why Choose the HORSCH Focus TD?

The HORSCH Focus TD combines deep loosening, targeted fertiliser placement and precise drilling in one efficient pass. With flexible 15 or 30 cm row spacing, multiple coulter options and adaptable fertiliser placement, it provides a versatile establishment system for a wide range of crops and conditions.

Enquire Now

For more information on the HORSCH Focus TD, including pricing, specifications and availability, contact KP Agri Ltd. Our team can help you choose the right seeding, coulter and fertiliser configuration for your operation.
