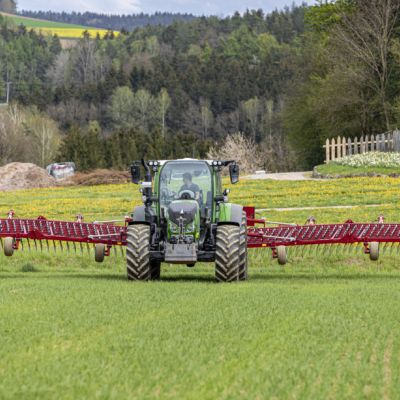

HORSCH Cura ST – Precision Harrow for High-Output Crop Care

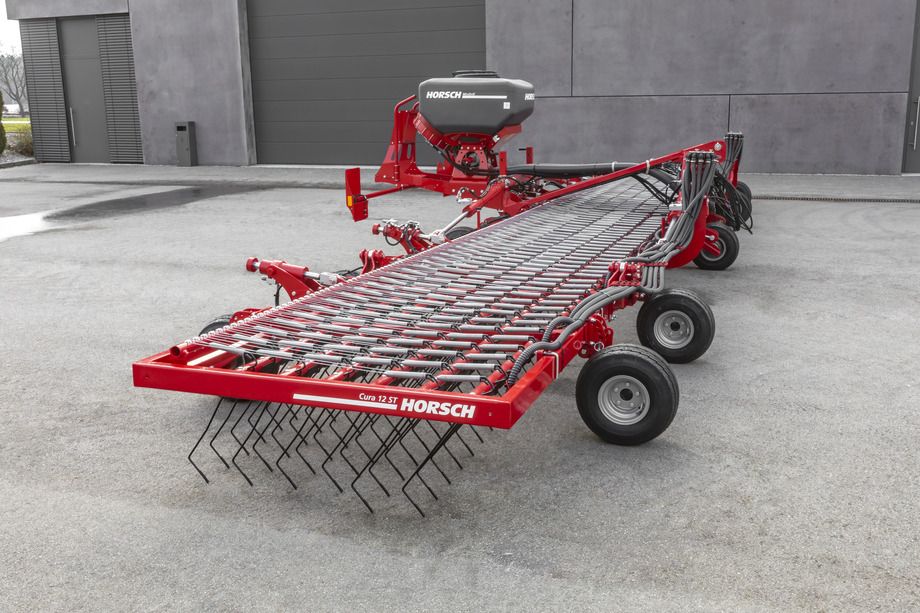

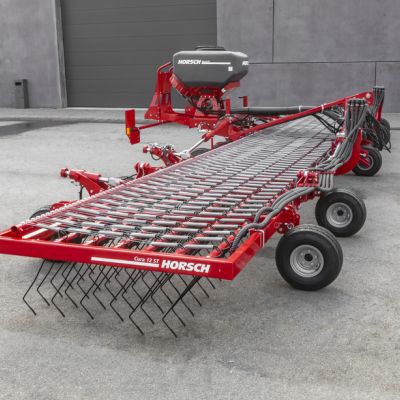

The HORSCH Cura ST is a robust and highly precise harrow designed for efficient crop care, mechanical weed control and residue management. Available in mounted working widths from 6 to 15 m and trailed versions up to 21 m, it combines high work rates with excellent stability and contour following.

Individually mounted, spring-loaded tines provide precise ground adaptation, while the wide tine pressure range allows the Cura ST to work gently in sensitive crops or more aggressively when conditions demand it.

Key Features

Wide Working Width Range

The Cura ST is available in 6, 9, 12, 13.5 and 15 m mounted versions, with 18 and 21 m trailed models for even higher output.

Individually Mounted Tines

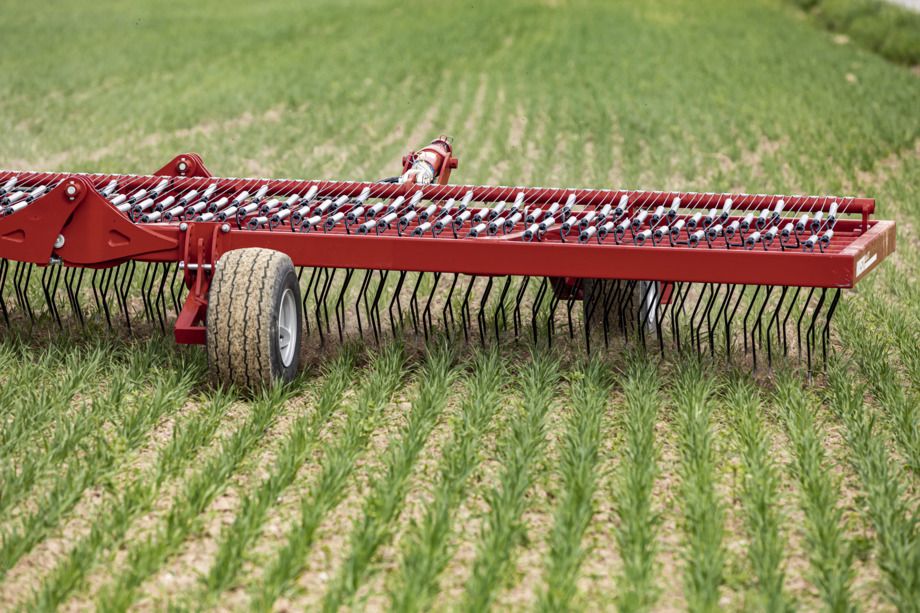

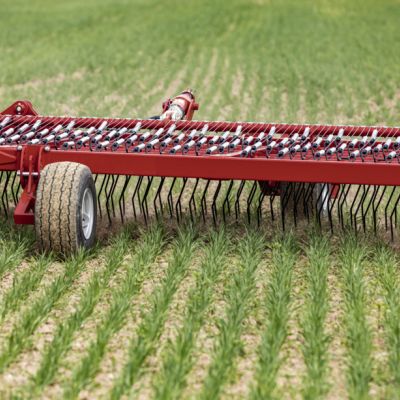

Each tine is individually mounted and spring-loaded, providing excellent stability and allowing every tine to follow the ground independently.

Wide Tine Pressure Range

The double spring system provides tine pressures from approximately 300 g to 5,000 g, allowing the machine to be adapted to different crops, soils and working conditions.

Hydraulic Tine Pressure Adjustment

Hydraulic tine pressure adjustment allows the operator to alter tine pressure quickly and precisely from the tractor.

Excellent Contour Following

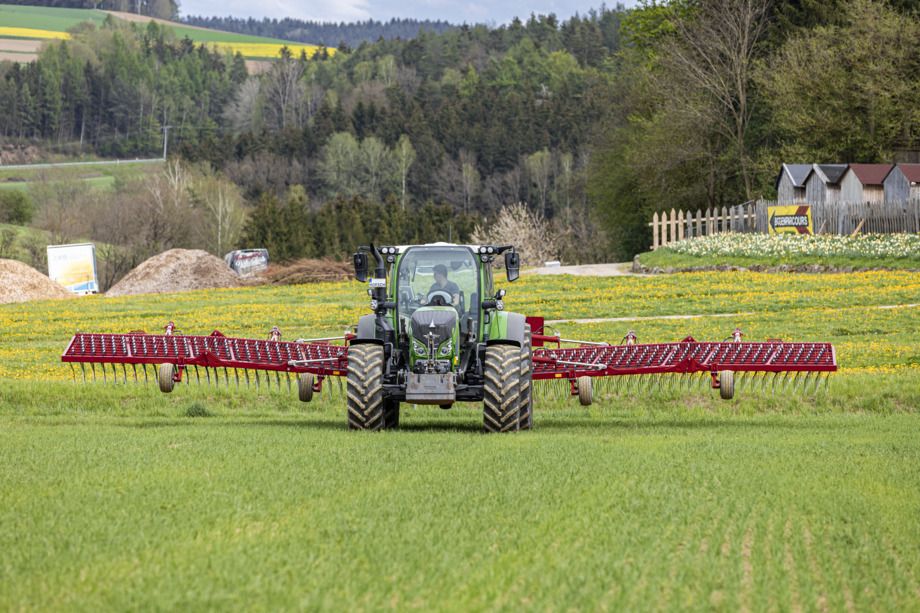

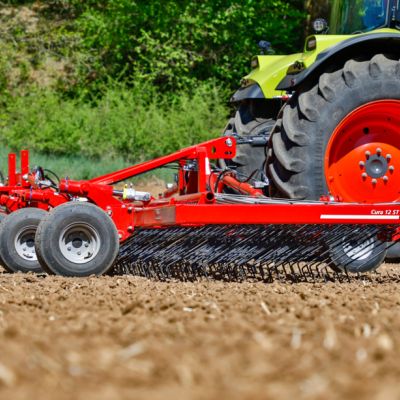

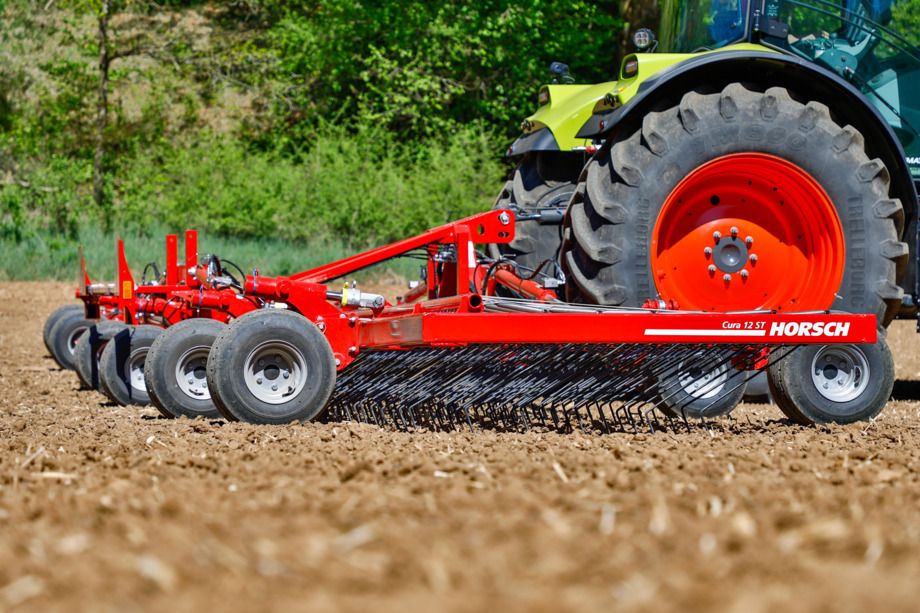

Multiple support wheels and floating frame sections help the Cura ST follow uneven ground and maintain consistent working quality across the full width.

High Crop Clearance

The springs are positioned above the frame, providing additional clearance and allowing gentle harrowing through taller or more developed crops.

Performance & Operation

• Mounted working widths: 6, 9, 12, 13.5 and 15 m

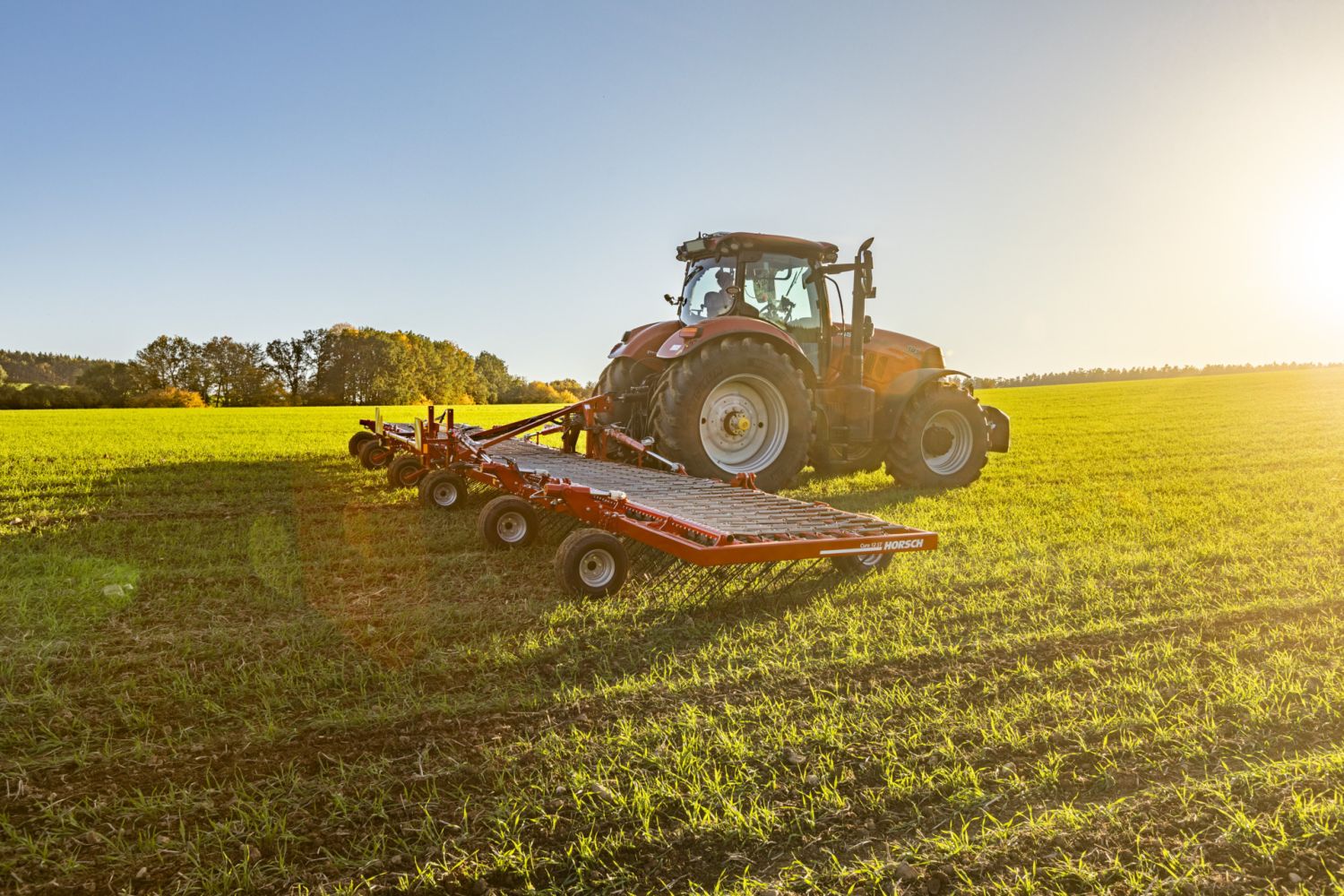

• Trailed working widths: 18 and 21 m
• Tine pressure range: Approx. 300 g – 5,000 g
• Tine system: Individually mounted and spring-loaded
• Tine pressure adjustment: Hydraulic
• Working angle adjustment: Via height-adjustable support wheels

Additional Options

• Carbide-coated harrow tines
• Mulch seeding tines with increased tine angle
• Rear support wheels with following harrow
• Solenoid valve option to reduce hydraulic control requirements
• Alternative tine configurations for heavy residues or very light soils

Key Benefits

Precise Crop Care

Individually controlled tines provide consistent contact with the soil while helping protect established crops.

High Work Rates

Wide working widths make the Cura ST suitable for covering large areas efficiently.

Flexible Tine Pressure

A broad pressure range allows the machine to be adapted from very gentle harrowing through to more intensive mechanical weed control.

Excellent Stability

The torsion-resistant frame and wide tine bearing provide reliable performance at working speed.

Strong Contour Following

Floating frame sections and multiple support wheels maintain even working depth over undulating ground.

Easy Operation

Hydraulic adjustment and practical headland functions make the Cura ST straightforward to set up and operate.

Applications

The HORSCH Cura ST is ideal for:

• Mechanical weed control
• Crop care
• Harrowing in cereals
• Mulch-seeded crops
• Residue management
• Light soil cultivation
• High-output precision harrowing

Why Choose the HORSCH Cura ST?

The HORSCH Cura ST combines precision, high output and flexible tine adjustment in a robust harrow designed for modern crop care. Its wide working widths, excellent contour following and broad tine pressure range make it suitable for a wide variety of crops and field conditions.

Enquire Now

For more information on the HORSCH Cura ST, including pricing, working widths, specifications and availability, contact KP Agri Ltd. Our team can help you choose the right Cura ST configuration for your operation.
