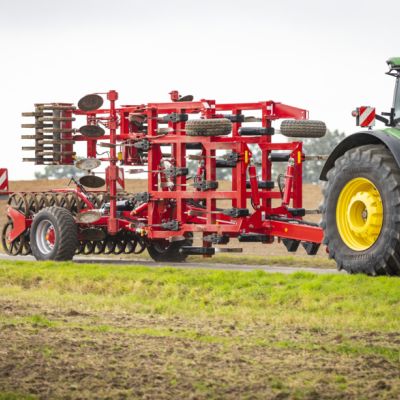

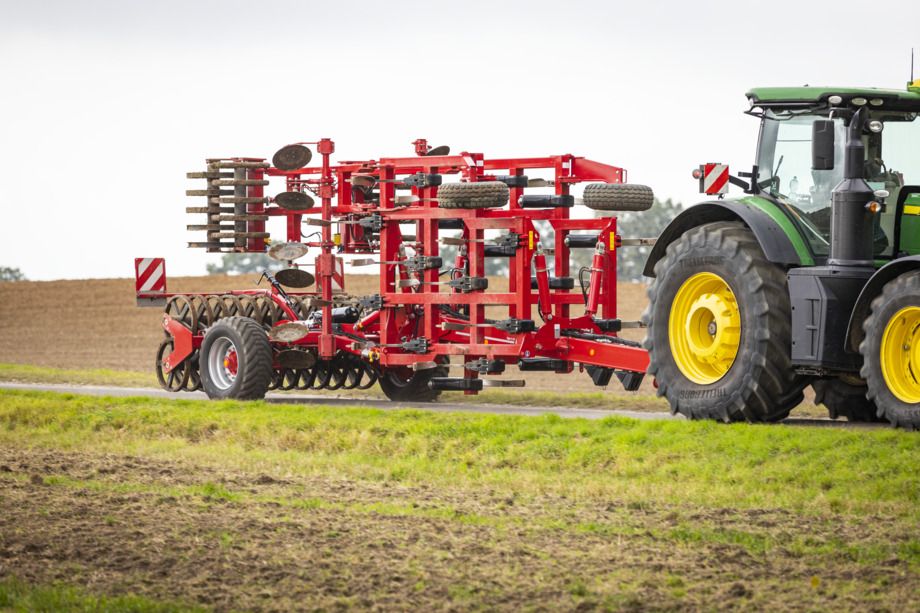

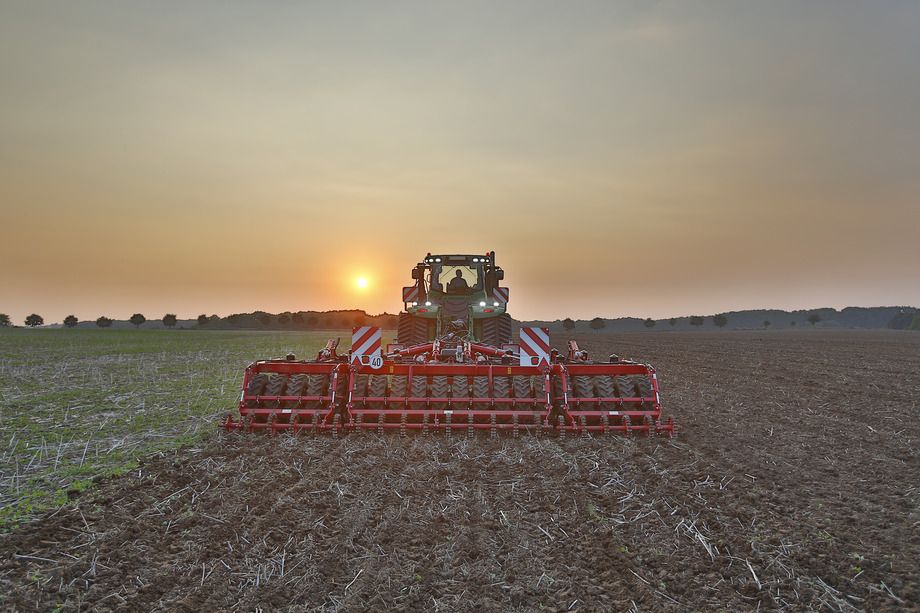

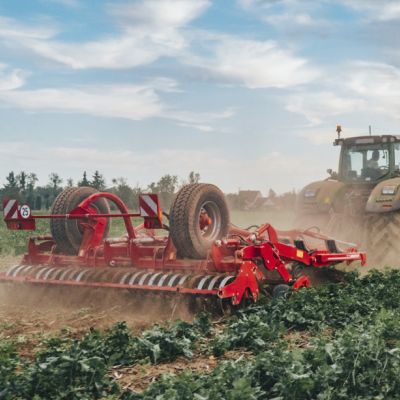

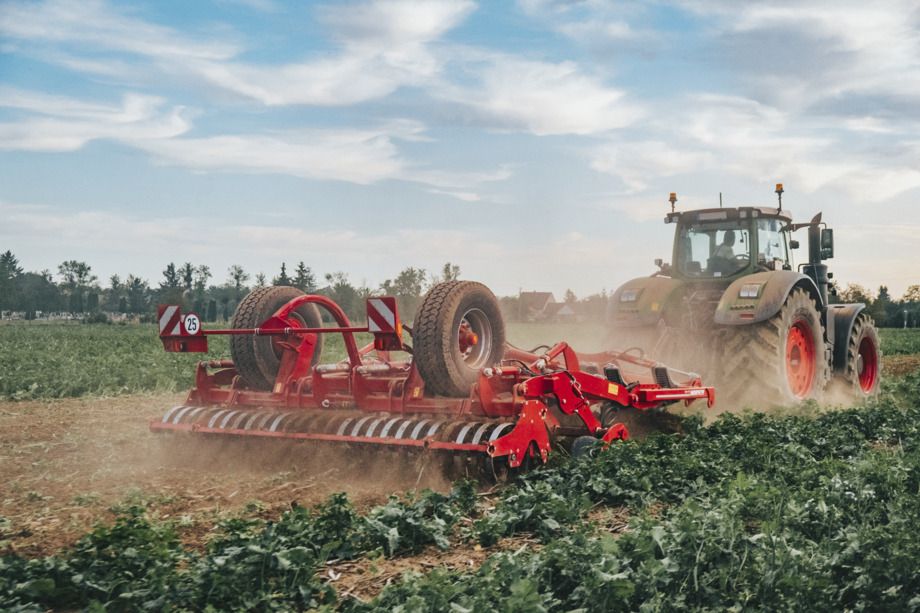

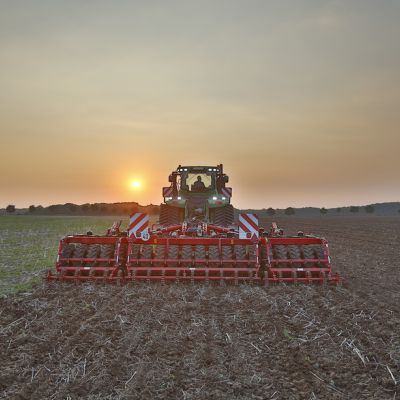

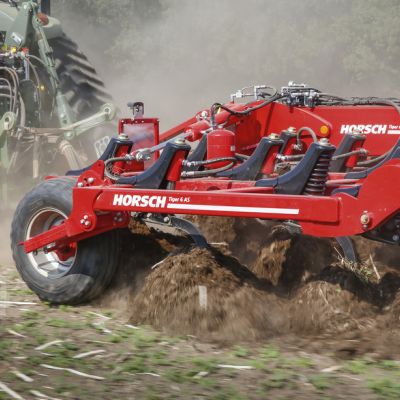

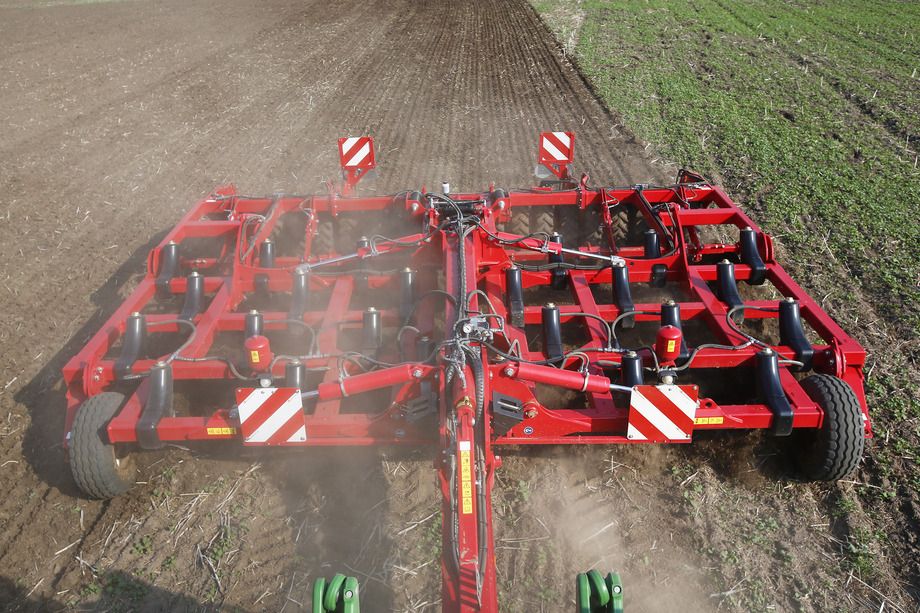

HORSCH Tiger AS – Heavy-Duty Cultivator for Shallow & Deep Tillage

The HORSCH Tiger AS is a powerful cultivator designed for intensive residue mixing, shallow full-surface cultivation and deep soil loosening. With working depths from 3 to 35 cm, it offers exceptional versatility across a wide range of soil and crop conditions.

Its high-clearance frame, large tine spacing and proven TerraGrip tine system allow the Tiger AS to work reliably in heavy harvest residues and catch crops. Combined with a broad range of HORSCH points, packers and additional equipment, it can be configured for everything from shallow cutting to deep restructuring.

Key Features

Working Depth from 3–35 cm

The Tiger AS can work from very shallow cultivation at 3–5 cm through to deep loosening at 35 cm, making it suitable for a wide range of cultivation systems.

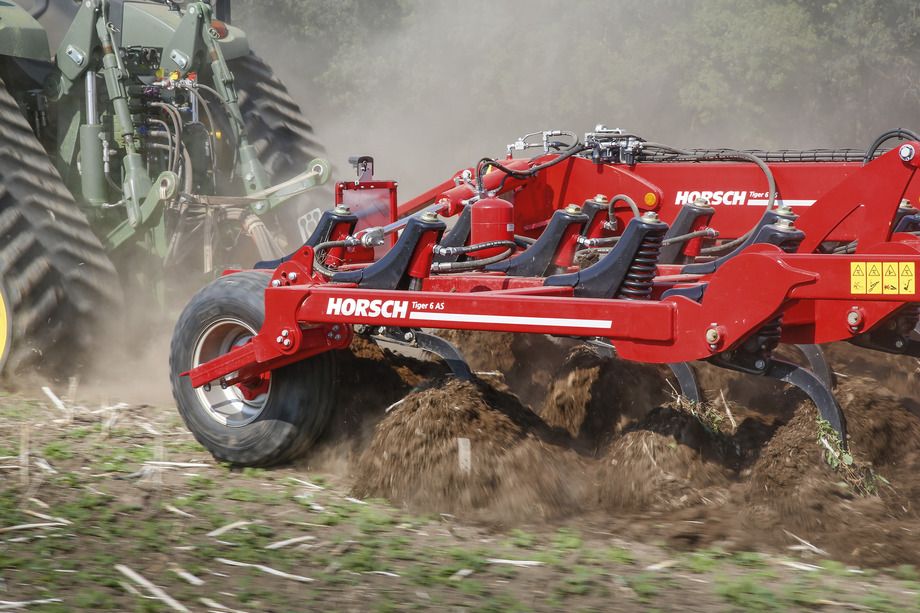

TerraGrip Tine System

The proven TerraGrip tine offers a release force of up to 550 kg and a maximum trip height of 30 cm, helping maintain consistent working depth in difficult conditions.

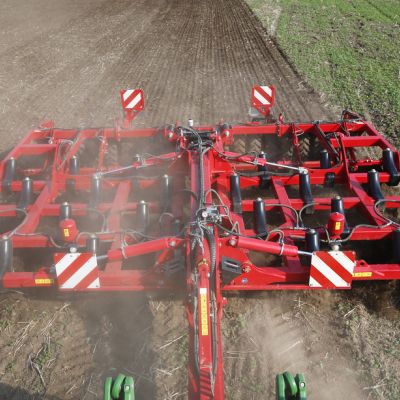

High Clearance Frame

With a frame height of 85 cm and tine spacing of 92 cm, the Tiger AS handles large volumes of straw, harvest residues and catch crop material with a low risk of blockage.

Intensive Residue Mixing

The tine layout provides even mixing throughout the cultivation horizon, helping accelerate residue breakdown and reduce interference layers for following crops.

Effective Levelling

A single-row disc system behind the tine section levels the soil before the packer, leaving an even finish across the full working width.

Flexible Point Options

A wide choice of HORSCH points and wings allows the machine to be adapted for shallow cutting, intensive mixing or deep loosening.

Performance & Operation

• Working depth: 3–35 cm
• Shallow cutting depth: 3–5 cm with TerraCut points
• Frame height: 85 cm
• Tine spacing: 92 cm
• Tine system: TerraGrip
• Release force: Up to 550 kg
• Maximum trip height: 30 cm
• Levelling system: 1-row disc system

Additional Options

• TerraCut points for shallow, full-surface cutting
• Wide range of HORSCH point and wing options
• Tyre packer
• Standard packer options
• MiniDrill for sowing catch crops
• Fertiliser distributor tower for applying fertiliser or other material

Key Benefits

Wide Range of Applications

One machine can be used for shallow cutting, intensive cultivation and deep loosening.

Excellent Residue Handling

High frame clearance and generous tine spacing allow effective work in heavy crop residues.

Strong Soil Mixing

Even incorporation of residues throughout the working horizon helps create better conditions for following crops.

Reliable Penetration

The TerraGrip tine system provides strong penetration and consistent depth control, even in demanding conditions.

Flexible Consolidation

A wide choice of packers allows the Tiger AS to be matched to different soil types and working conditions.

Versatile Equipment Options

MiniDrill, fertiliser systems and multiple point configurations allow the machine to be adapted to individual farm requirements.

Applications

The HORSCH Tiger AS is ideal for:

• Shallow full-surface cultivation
• Intensive stubble cultivation
• Deep soil loosening
• Incorporating harvest residues
• Catch crop incorporation
• Primary cultivation
• Fertiliser incorporation
• Farms requiring one cultivator for both shallow and deep work

Why Choose the HORSCH Tiger AS?

The HORSCH Tiger AS is designed for farms that need maximum versatility from a heavy-duty cultivator. With a working range from 3 to 35 cm, high residue clearance, powerful TerraGrip tines and extensive equipment options, it can handle everything from shallow cutting to intensive deep cultivation.

Enquire Now

For more information on the HORSCH Tiger AS, including pricing, specifications and availability, contact KP Agri Ltd. Our team can help you choose the right point, packer and equipment configuration for your farming operation.
