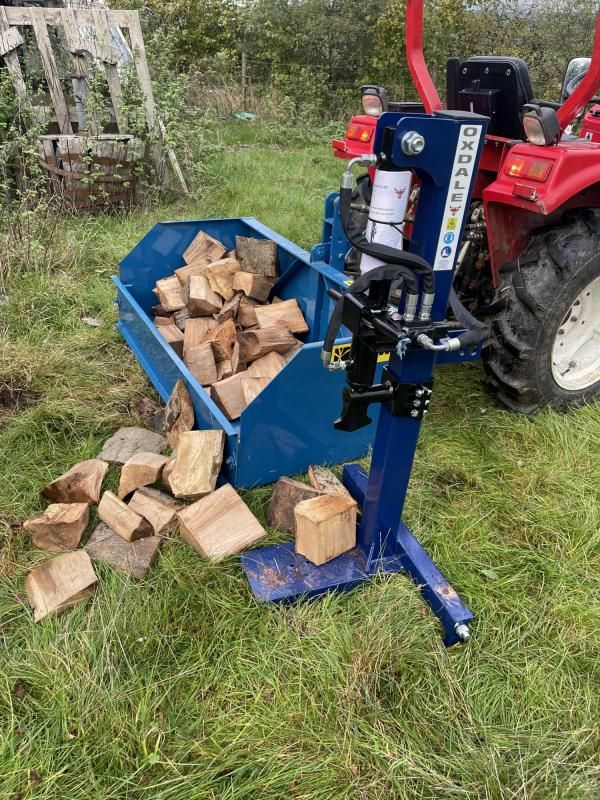

TM400 Log Splitter

TM400 Log Splitter

The TM400 range of log splitters is suitable for most tractors. The splitter fits to a standard rear three-point linkage tractor and only requires a hydraulic power supply and a free flow return.

  • 10 tonne splitting force
  • Splits up to 45cm / 18″
  • 14 l/m minimum oil flow needed
  • The splitting wedge is specially forged, hardened and has a double chamfer to give the best splitting action available on the market
  • Suitable for all tractors with ISO CAT 1 and CAT 2 linkages; including low HP compact tractor and large high horsepower tractors
  • The unit can be fitted on the front or rear three-point linkage
  • For added safety all the hydraulic pipes are covered in anti-burst lagging and both hands are required on the lever to operate the ram. Lifting the lever will power the splitting wedge through the logs and lowering the lever will retract the ram
  • Capable of splitting logs up to 18 inches high and is not limited to the width of logs it can split
  • 20Hp minimum
  • Oxdale Tractor Mounted Log Splitters work on open or closed hydraulic systems.

OVERVIEW

Oxdale has been manufacturing the TM range for 12 years and now have over 10,000 units working throughout the UK and Europe.

The beauty of this log splitter allows the user to work the machine at ground level for those larger diameter rounds or it can be raised to a comfortable waist height for those easier to handle logs.

The unique axe head allows a 10-ton capacity ram to be fitted which makes the splitting operation very quick.

Tractor mounted hydraulic log splitter which runs off the tractor’s hydraulics.

SPECIFICATIONS

TM400 Standard Base | 133cm Height | Base 20cm Width | Link to Link 86cm | Weight 64kg TM400 Big Base | 133cm Height | Base 60cm Width | Link to Link 86cm | Weight 80kg   Technical specs Linkage: ISO CAT 1/2 Max operating pressure: 3625 psi/250 bar Minimum oil flow: 14L per minute Ram bore diameter: 60mm Ram stroke: 400mm Ram rod diameter: 40mm

If you'd like more information about a TM400 Log Splitter, please call 01446 792786 or email Email.
