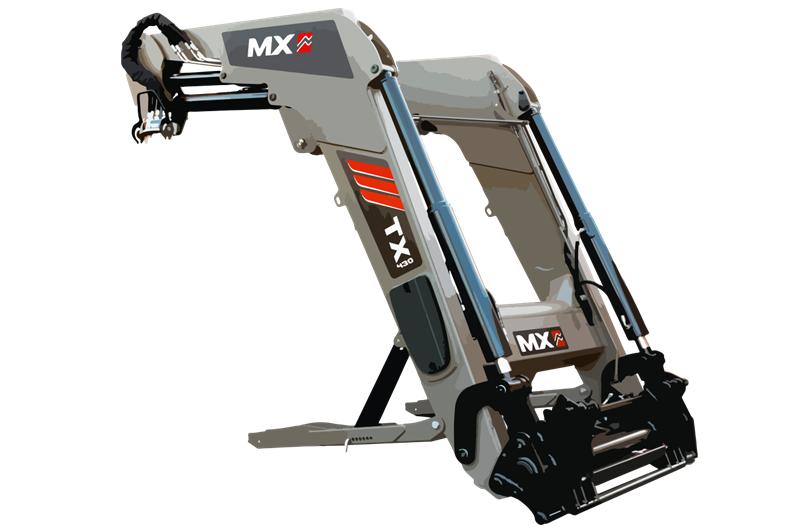

MX TX400 Series loader

MX TX400 Series loader

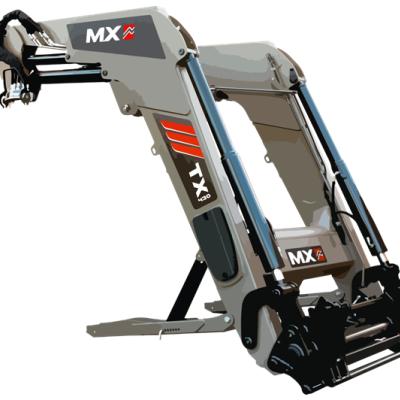

Gallery 1

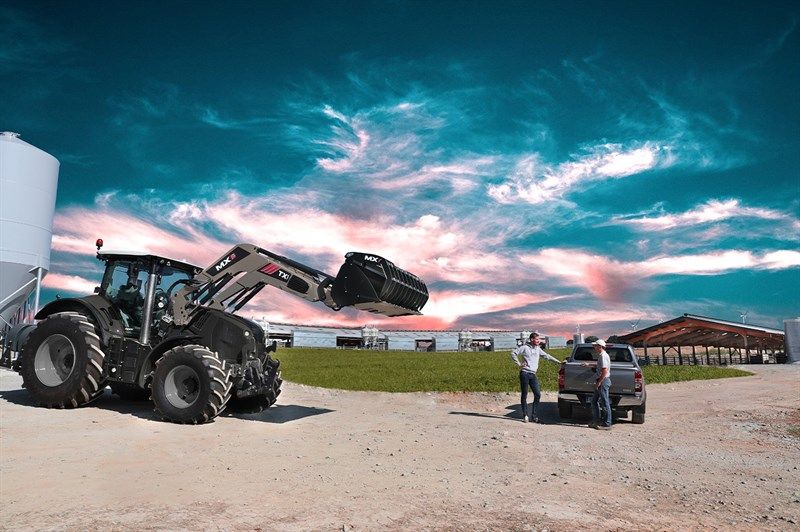

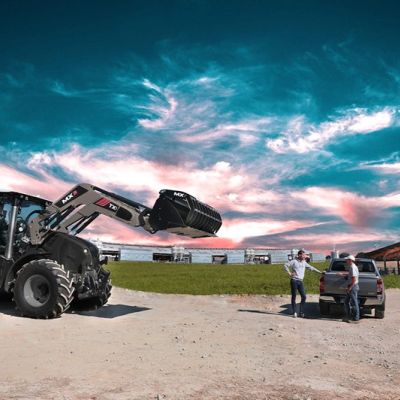

Gallery 2
Gallery 3
Gallery 4
Gallery 5
Gallery 6
Gallery 7
Gallery 8
Developed in collaboration with farmers, farmers’ groups and agricultural contractors, the TX400 series range of loaders is intended for use with tractors of between 170 and 400 hp. The high-power tractor-loader combination is a genuine alternative to telescopic handlers and loaders, giving you more flexibility, more speed on the road and increased efficiency for your everyday tasks. It's a highly versatile unit.
Capacity

  • Hours of use (H/year)
  • < 1500

  • Maximum height to the axis of rotation of the tool
  • 4.87 m to 5.50 m

  • Pull-out force at the tool's axis of rotation
  • 4000 kg to 4100 kg

Compatibility
  • Tractor power (HP) : 170 to 400
  • Hydraulic parallelogram (PCH) : Series
The Hydraulic compensation parallelogram (HCP) – patented
Additional power and steady implement angle during raising/lowering of the loader.
Hoist cylinder power
The lifting rams are powered via rigid pipes to protect them from impacts, avoiding all maintenance costs throughout the loader's lifespan.
Pivot points
- ARCOR treated pins - Protected grease nipples - Bushes with lubrication system - - Pin plate anti-rotation locking system
Arm design
The arm structure links two "U" shaped profiles made from 6 mm thick HLE steel. Its assembled width is 100 mm. This design guarantees incomparable resistance and endurance.
Implement carrier with automatic locking/unlocking.
The TX400 loader has a specific implement carrier with FAST-LOCK hydraulic locking as standard. Depending on the model chosen, it may be possible to hitch telescopic forklift implements.
Hydraulic design
All hydraulic parts are protected by the arm. This allows visibility to be generated. All the hydraulic power lines are rigid. The hydraulic unit comprising the suspension and the 3rd and 4th functions are protected by the front and rear housing on the loader cross-beam.


If you'd like more information about a MX TX400 Series loader, please call 01446 792786 or email Email.
