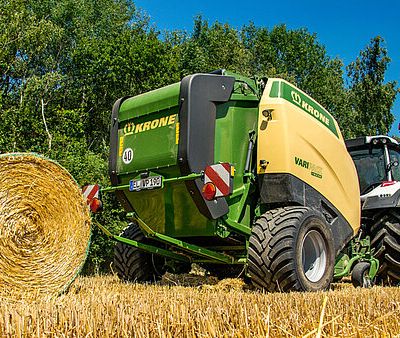

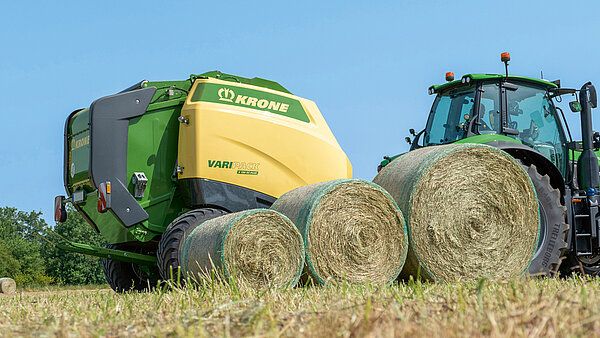

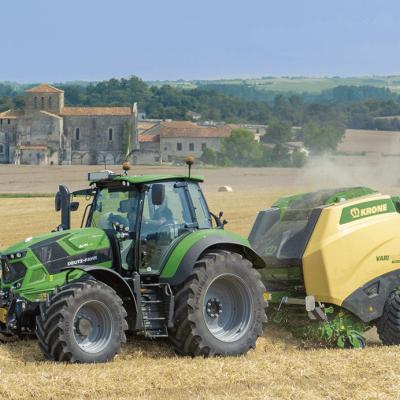

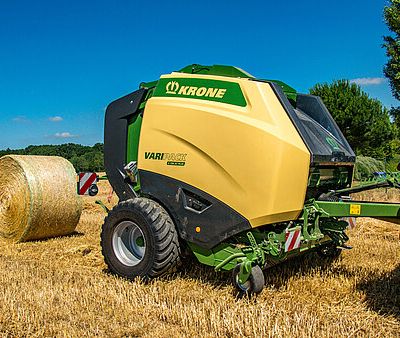

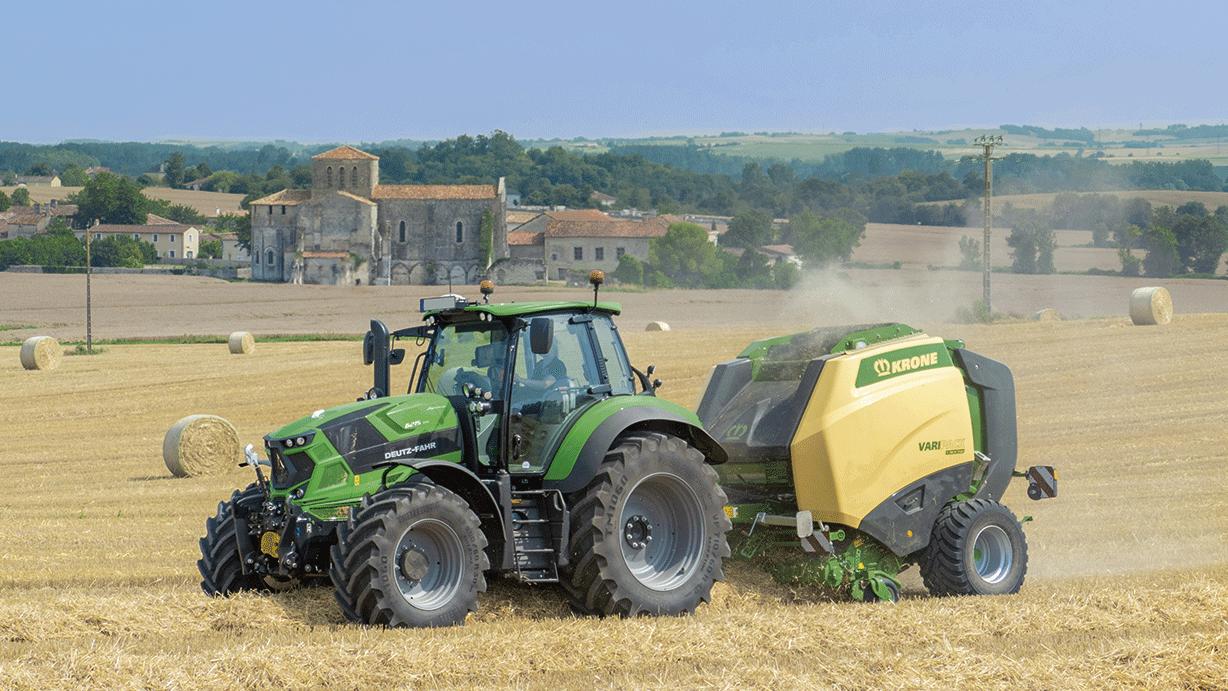

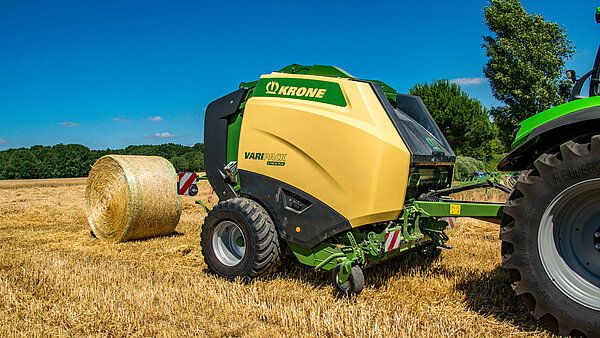

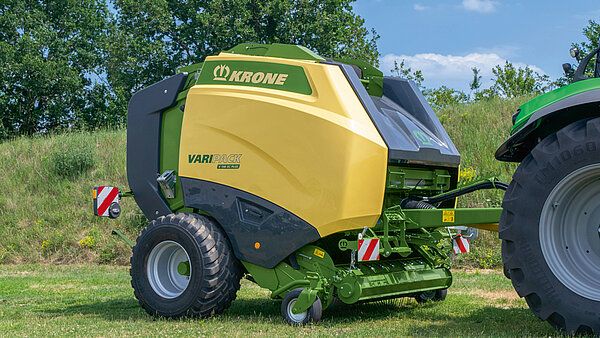

KRONE VariPack Plus – High-Performance Variable Chamber Round Balers

The KRONE VariPack Plus is designed specifically for high-output baling of dry crops such as straw, hay and haylage. Combining straightforward engineering with reinforced components, fast crop flow and exceptional bale density, it is built for farmers and contractors who need maximum performance during short harvesting windows.

With the EasyFlow pick-up, high-capacity Integral Rotor, precision cutting system and three-belt variable chamber, the VariPack Plus delivers reliable bale formation and excellent crop handling. The range includes models capable of producing bales from 0.80 m up to 1.90 m diameter.

Key Features

High-Performance Dry Crop Baler

The VariPack Plus is designed for demanding dry crop applications where high output and dense, well-shaped bales are essential.

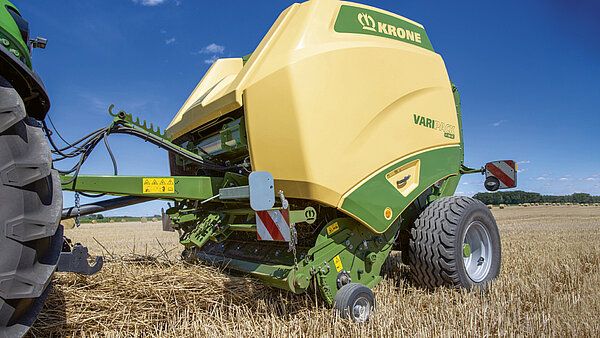

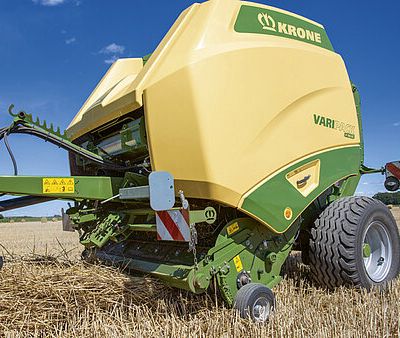

EasyFlow Pick-Up

The 2.15 m camless EasyFlow pick-up uses robust 6 mm double tines arranged in a chevron pattern for clean and consistent crop collection.

Its simplified design uses fewer moving parts, helping reduce wear and maintenance.

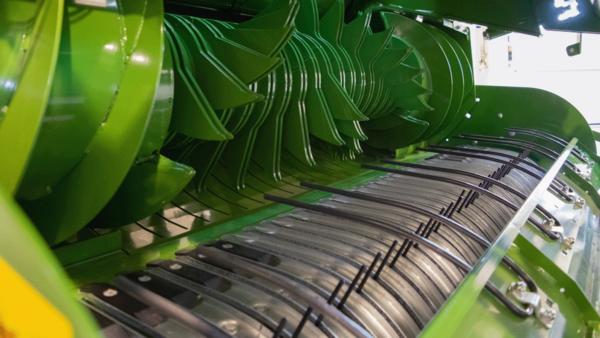

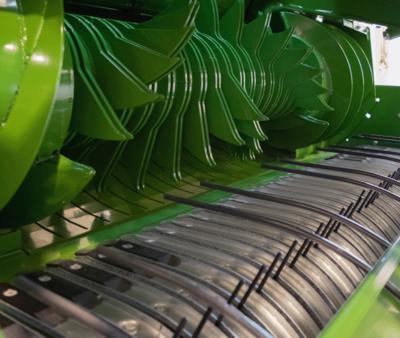

Integral Rotor

The high-capacity Integral Rotor combines feeding and auger functions within one unit, creating smooth and consistent crop flow into the bale chamber.

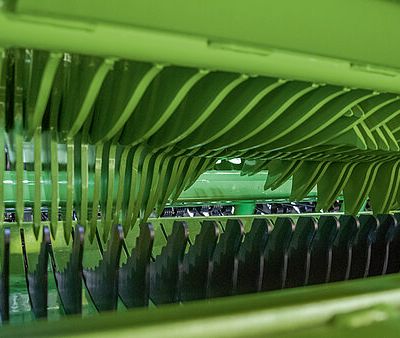

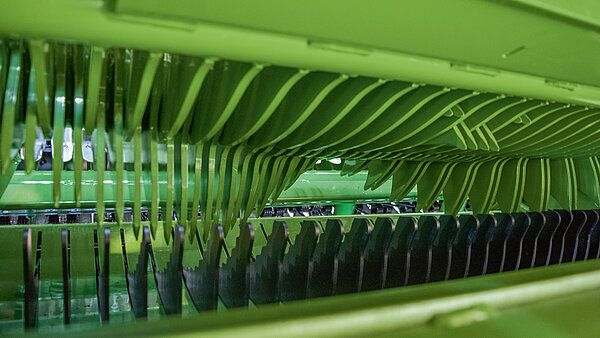

Precision XCut System

XC Plus models use a 26-blade cutting system with blade group selection of:

• 0 blades
• 13 blades
• 13 blades
• 26 blades

This provides cutting lengths down to approximately 42 mm.

High-Density Belt Chamber

Three smooth endless belts form dense and stable bales while maintaining reliable bale rotation.

The chamber operates at a high circumferential speed of up to 130 m/min for excellent throughput.

Automatic Belt Cleaning

Two cleaning rollers continuously remove material from the belts and guide rollers, helping maintain reliable performance.

Performance & Operation

• Bale chamber: Variable
• Bale width: 1.20 m
• Bale diameter: 0.80 – 1.90 m depending on model
• Pick-up width: 2.15 m
• Cutting system: XCut
• Maximum blade count: 26
• Minimum cutting length: Approx. 42 mm
• Belt speed: Up to 130 m/min
• Wrapping: Net standard
• Net and twine: Optional
• Power requirement: Approx. 100 hp

VariPack Plus Model Range

Bale Formation

Two-Drive System

Two belt drives help ensure reliable bale starts and consistent bale rotation, particularly when working at high outputs.

Adjustable Bale Diameter

The required bale size can be set from the operator terminal, allowing the baler to be adapted quickly to different crop and handling requirements.

Adjustable Soft Core

Bale pressure and soft-core settings can be controlled through the terminal to suit different applications.

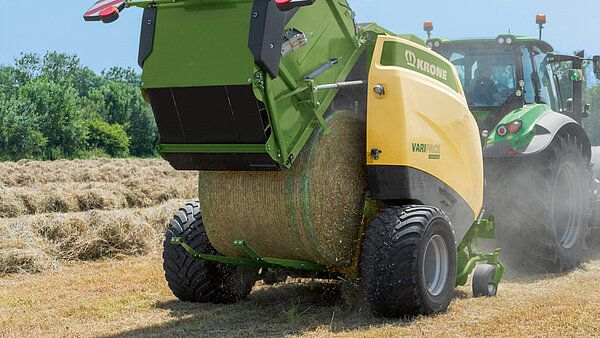

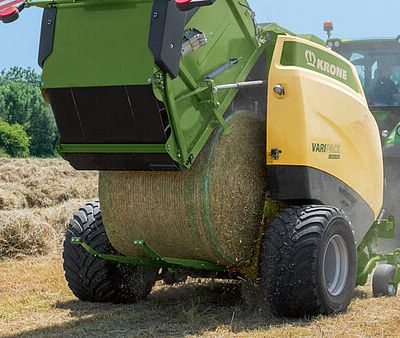

Fast Bale Unloading

Automatic Rear Door

The rear door is automatically controlled to speed up unloading cycles.

Under 5-Second Cycle

The tailgate can complete its opening and closing cycle in less than five seconds, helping minimise downtime between bales.

Stroke-End Cushioning

Hydraulic cylinders with stroke-end cushioning provide fast and smooth rear door operation.

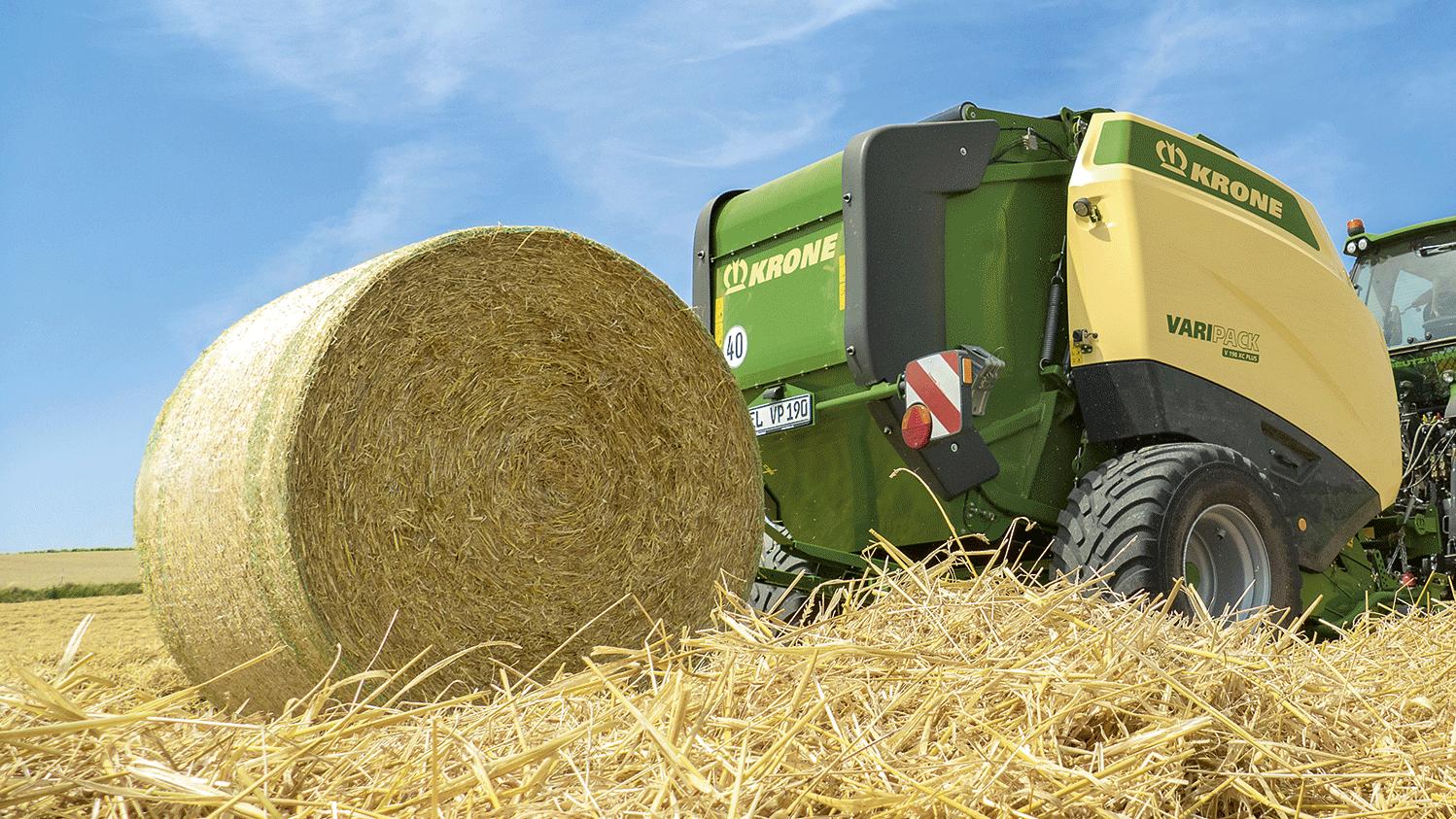

Bale Ejector

The bale ejector places the finished bale safely onto the ground and is designed to work effectively even on sloping terrain.

Wrapping System

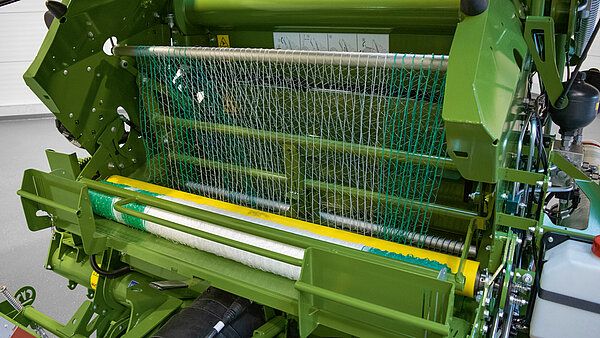

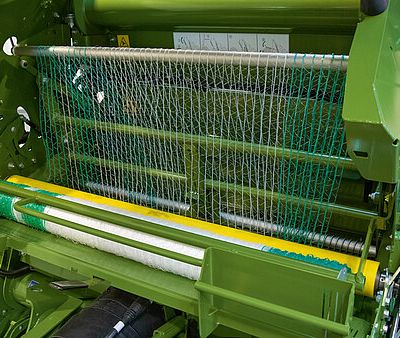

Net Wrapping

Net wrap is standard for fast and secure bale binding.

Net & Twine Option

Net and twine configurations provide additional flexibility for different crop and storage requirements.

Standard Net Roll Chute

A roll chute is fitted as standard, allowing heavy net rolls to be loaded more easily into the cradle.

Low Maintenance Design

Automatic Greasing

A central automatic grease system takes care of lubrication points during operation.

Automatic Chain Lubrication

Drive chains are automatically lubricated to help reduce wear and daily servicing.

Accessible Service Points

Maintenance points are positioned for easy access, helping reduce downtime.

Automatic Chain Tensioning

Drive chain tensioners simplify adjustment and help maintain reliable operation.

Operator Comfort

ISOBUS Control

The VariPack Plus is compatible with ISOBUS terminals for straightforward machine setup and operation.

TIM Tractor Implement Management

Optional TIM allows the baler to communicate with and control selected tractor functions automatically.

Camera Options

Optional CCTV cameras improve visibility around the machine.

Moisture Sensor

Optional moisture sensing technology provides real-time information on crop moisture levels during baling.

LED Work Lights

Optional LED lighting improves visibility during long harvesting days and night work.

Key Benefits

Exceptional Bale Density

The high-speed belt chamber produces dense and consistently shaped bales.

Maximum Throughput

The EasyFlow pick-up, Integral Rotor and high-speed bale chamber maintain strong crop flow in heavy swaths.

Precise Crop Processing

The 26-blade XCut system provides chop lengths down to approximately 42 mm.

Fast Unloading

Automatic rear door control and rapid opening and closing cycles help maximise hourly output.

Reduced Maintenance

Automatic greasing, chain lubrication and belt cleaning reduce daily servicing requirements.

Excellent Operator Comfort

ISOBUS, TIM compatibility, cameras and moisture monitoring make the machine easier to manage during intensive baling operations.

Applications

The KRONE VariPack Plus range is ideal for:

• Straw baling
• Hay baling
• Haylage
• High-density dry crop baling
• Large farming operations
• Agricultural contractors
• High-output baling
• Operations requiring variable bale sizes

Why Choose the KRONE VariPack Plus?

The KRONE VariPack Plus is built for operators who demand maximum bale density, high throughput and dependable performance in dry crops. With a high-speed belt chamber, 26-blade XCut system, automatic lubrication and advanced operator controls, it provides the capacity and reliability required for professional baling operations.

Enquire Now

For more information on the KRONE VariPack Plus round baler range, including pricing, V 165 and V 190 models, specifications and availability, contact KP Agri Ltd. Our team can help you choose the right VariPack Plus baler for your operation.
