100% ELECTRIC
efficiency expert

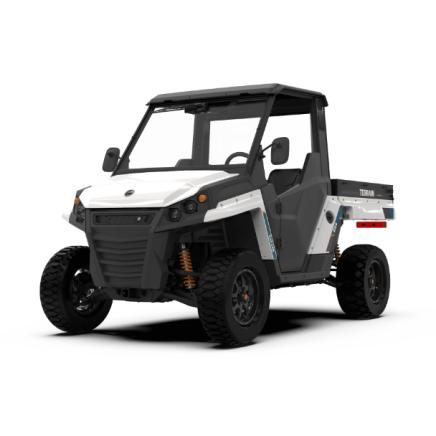

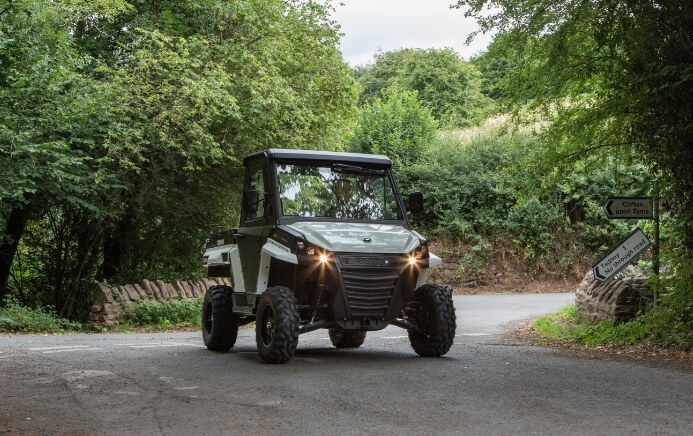

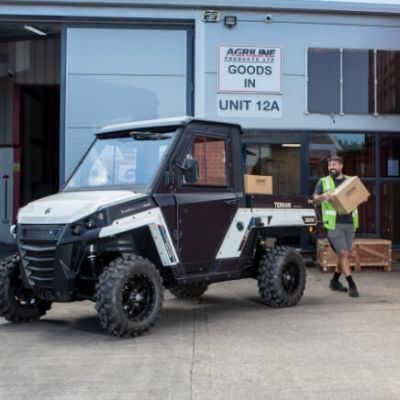

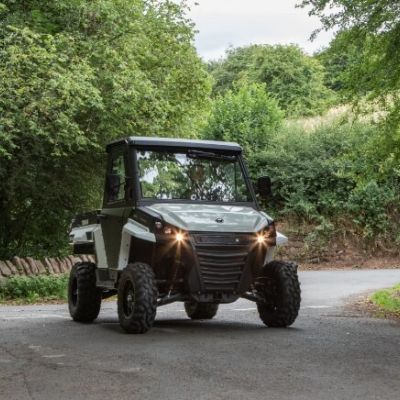

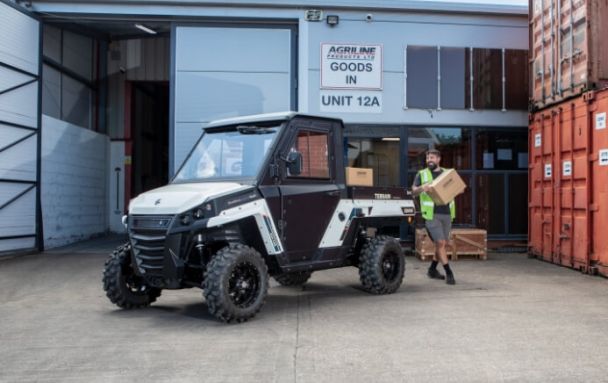

CORVUS TERRAIN EX4 is an electric 4×4 utility vehicle that perfectly adapts to the demands of any workday. With OFF ROAD capabilities, this UTV can travel up to 100 km on a single charge and offers the precise power to meet all your needs. An efficient and environmentally friendly option for your work activities!
Colours
White, Orange or Green
Dimensions / Capacity
- L x W x H (mm) : 3414 x 1656 x 1973
- Wheelbase: 2238 mm
- Ground clearance: 309 mm
- Curb weight: 860kg
- Towing capacity: In Low: 907 kg. In High: 450 kg
- Capacity max. Total load: 620 kg
Battery
- Battery: Lithium Ion 15 Kwh

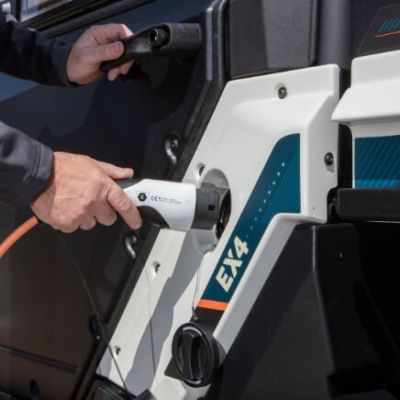

- Battery charger: 3 Kw (AC)
- Autonomy: RANGE mode: 100 km (depends on use). POWER mode: depending on use
Motor
- Motor type: AC induction at 48V.
- Power: 13 kW (nominal)
- Torque: 150 Nm (maximum)
- Transmission: FNR lever. Selector button for HL
- Transmission mode: 4X2 or 4X4 with lockable rear differential
- Maximum speed: In Low: 25 km/h. In High: 40 km/h
Chassis
- Front tires: 26×9. R14
- Rear tires: 26×11. R14
- Rims: 14″ Steel
- Front Brakes: Dual-piston hydraulic disc brakes
- Rear brakes: Hydraulic disc brakes
- Handbrake: On rear wheels. Independent clamps.

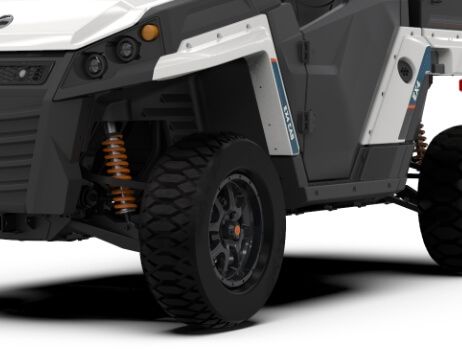

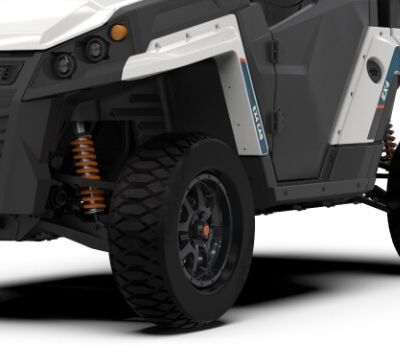

- Suspensions (front and rear): Both independent double wishbones, 287 mm of travel
- Protections: Bass protection

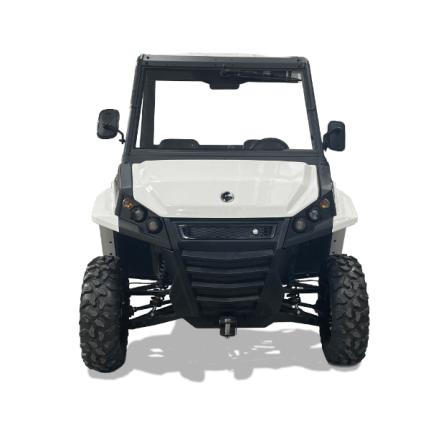

- Hitch: Front hitch adapter and 2″ rear ball
- Lighting: 60w high brightness halogen headlights
- Turning radius: 4,42 m
- Number of passengers: 2

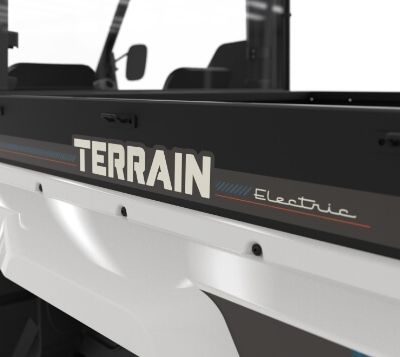

Cargo box
- Dimensions L x W x H: 1340 x 1202 x 300 mm
- Material: Steel
- Load capacity: 300 kg
Professional
- Homologation: EU Tractor. T1a

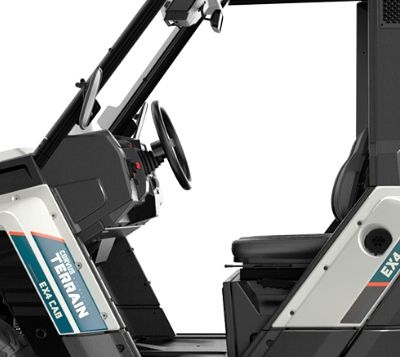

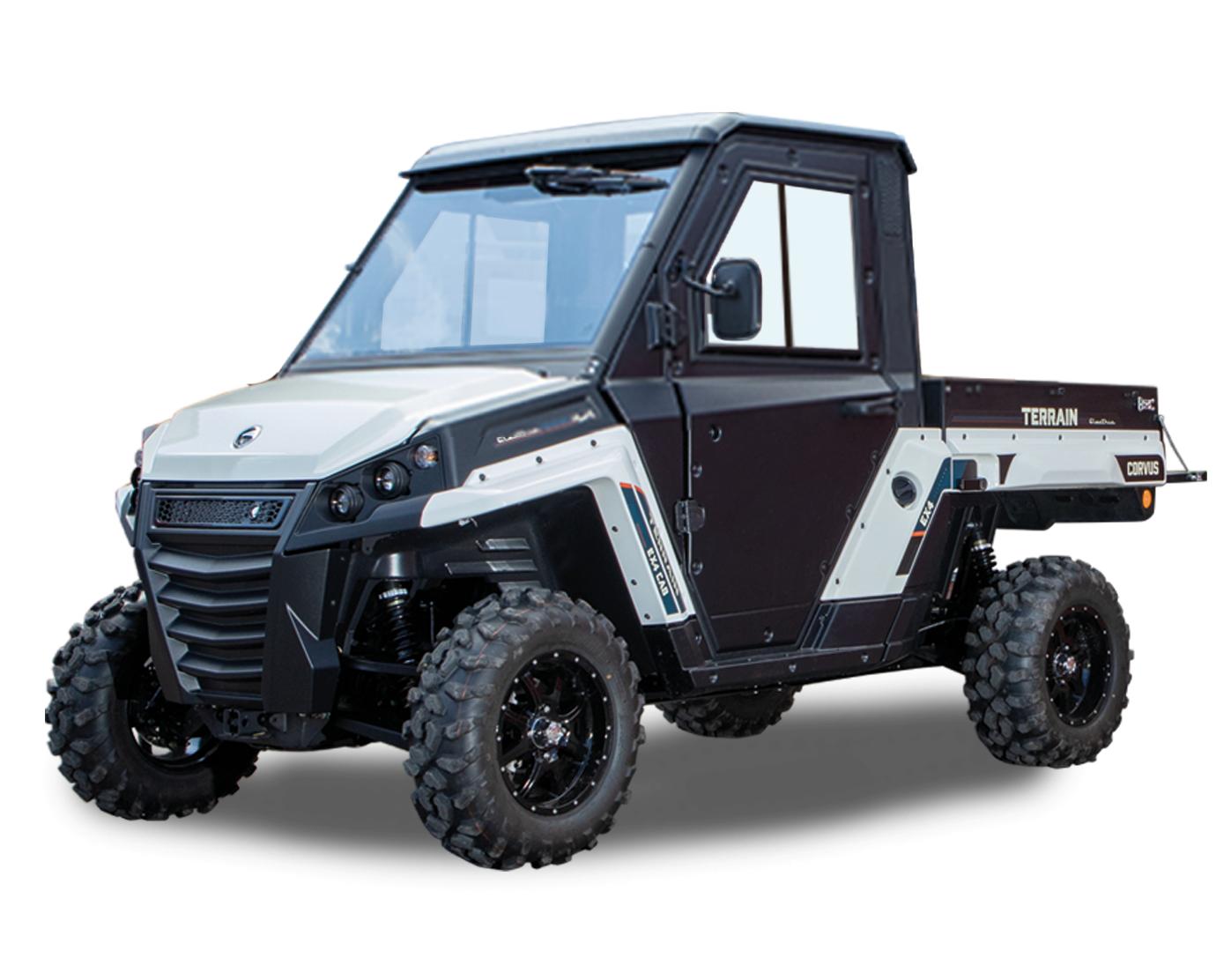

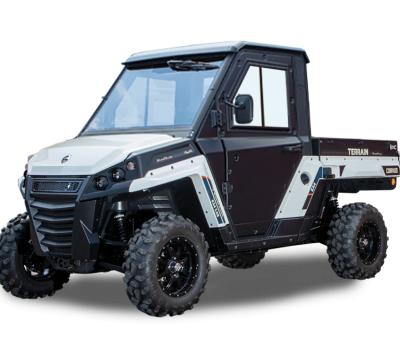

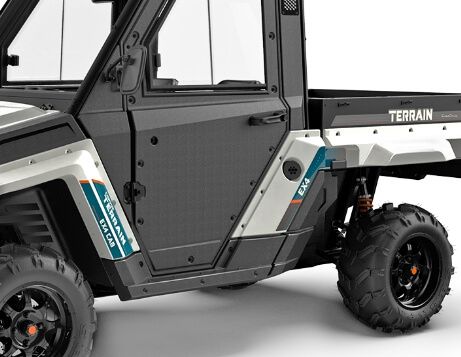

EX4 CAB
- 4×4/4×2 system
- Diff lock rear
- Cargo box
- Bottom protector
- ADVANCED roof

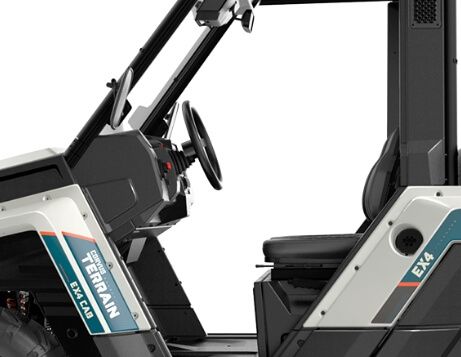

- Adjustable seats
- 2p safety belt.
- Syst. front hitch
- Trailer rear ball
- Adjustable shock absorber
- Dashboard coasters
- EPS power steering
- Heated front windshield
- Windshield wiper.
- rear windshield
- Drawers under seat
- Interior mirror

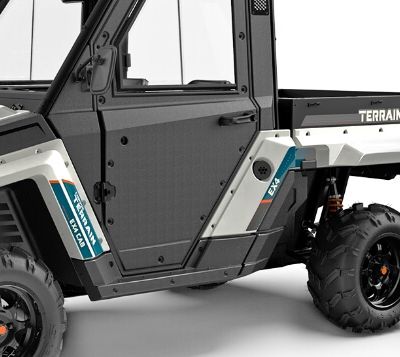

- Doors
- Courtesy light
- Front trunk
