Corvus DX4 1000 BASE

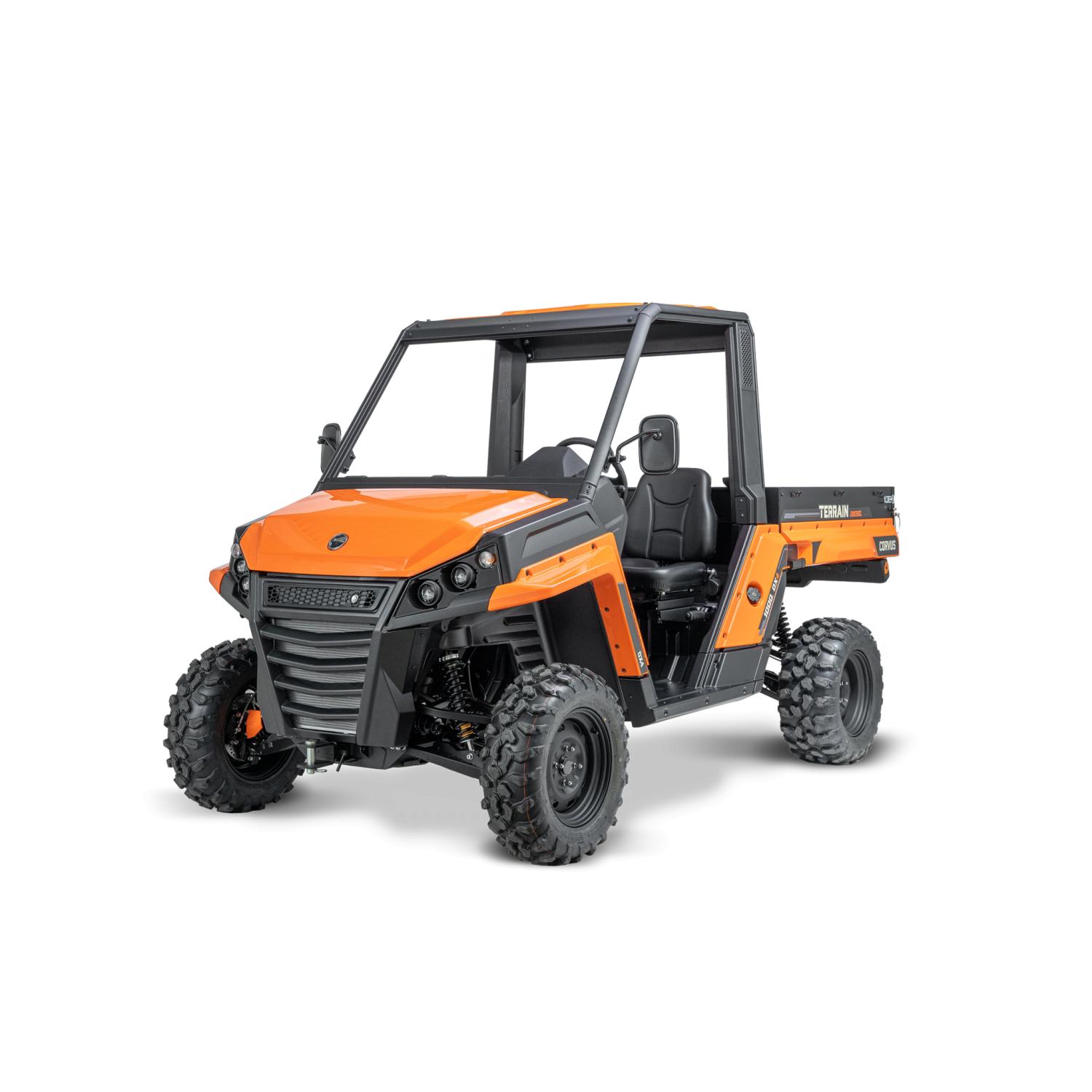

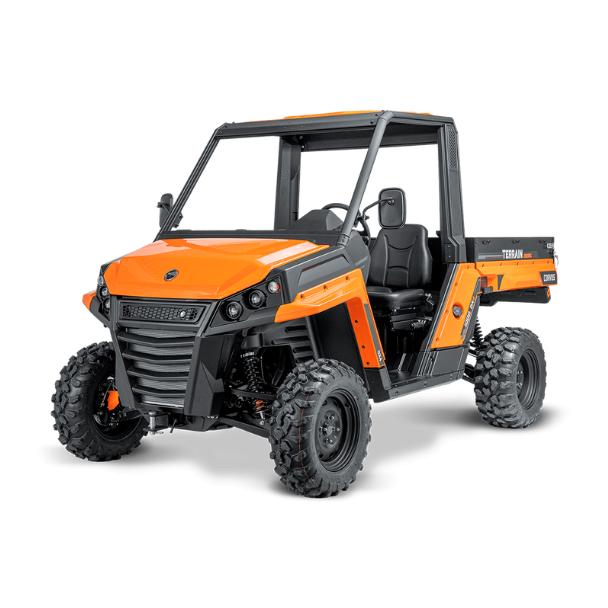

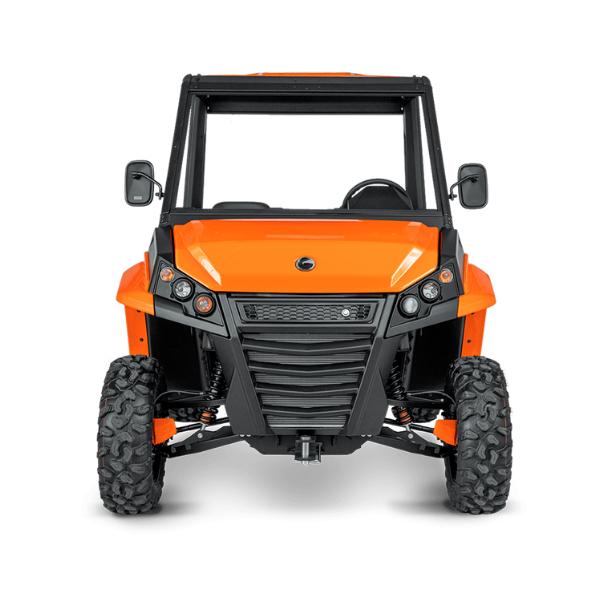

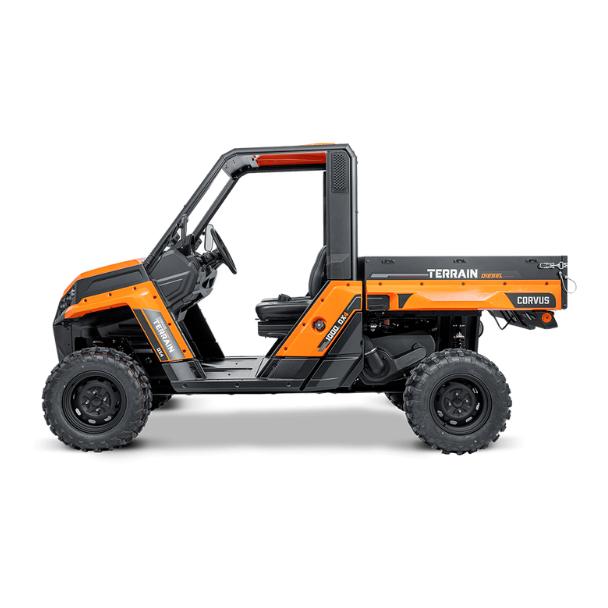

Terrain DX4 – Built for the Toughest Conditions

The Terrain DX4 is a powerful and robust 4x4 diesel utility vehicle, designed for heavy-duty work with exceptional storage and loading capacity. Engineered to handle the toughest environments, it delivers unmatched reliability and performance.

Superior Comfort & Visibility

The spacious and high-clearance cabin offers an unobstructed panoramic view for maximum safety and efficiency. Its barrier-free entry and exit design ensure easy access for operators, enhancing convenience on the job.

Uncompromising Off-Road Performance

Powered by a 1000cc YANMAR naturally aspirated diesel engine, the DX4 delivers 24hp with three in-line cylinders, ensuring exceptional torque and durability. The selectable 4×4 system with differential locking provides superior traction and control on any terrain.

Built for Heavy Loads

The DX4's reinforced cargo box is designed for versatility, handling up to 450kg, while its 907kg towing capacity ensures it can move heavy equipment with ease.

Customizable to Your Needs

With a range of accessories and customization options, the Terrain DX4 adapts to your specific work requirements, making it a true off-road workhorse.

Technical Specifications

Dimensions & Capacity

• L x W x H: 3,414 x 1,656 x 1,973 mm
• Ground Clearance: 309 mm
• Towing Capacity: 907 kg
• Cargo Box Capacity: 450 kg
• Fuel Capacity: 40 L

Engine & Performance

• Engine: Yanmar 1000cc, 3-cylinder, 4-stroke diesel
• Power: 24 hp / 18 kW @ 3,600 rpm
• Torque: 52.1 Nm @ 2,400 rpm
• Transmission: Automatic CVT (LHNR)
• Drivetrain: Selectable 4×2 / 4×4 with rear differential lock
• Top Speed: EU T1a: 40 km/h | T1b: 60 km/h
• EPS: Electric Power Steering

Chassis & Safety

• Front Tires: 26×9 R14 steel wheels
• Rear Tires: 26×11 R14 steel wheels
• Brakes: Front: 256 mm discs | Rear: 220 mm discs
• Handbrake: Rear wheel braking
• Protection: Underbody protection

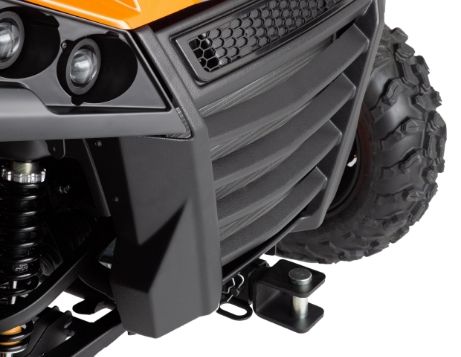

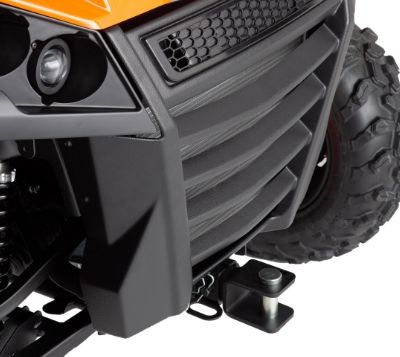

• Hitch: Front adapter and 2” rear ball hitch

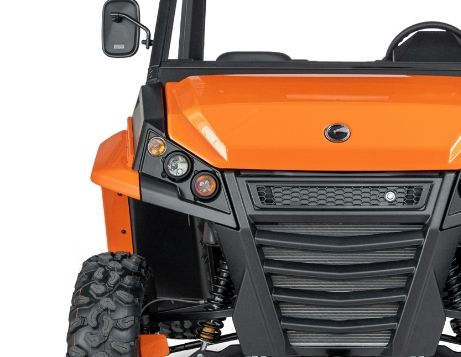

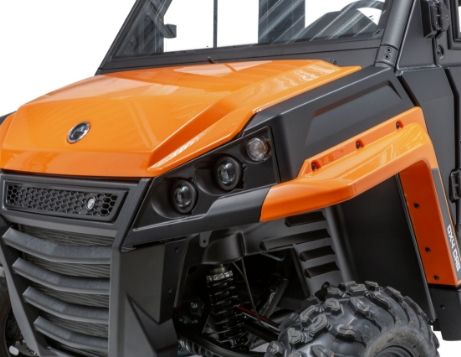

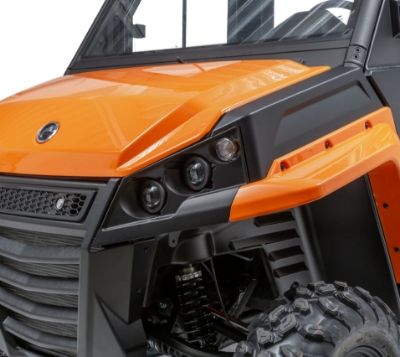

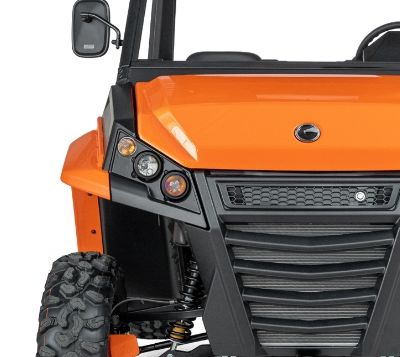

• Lighting: 60W high-brightness halogen headlights

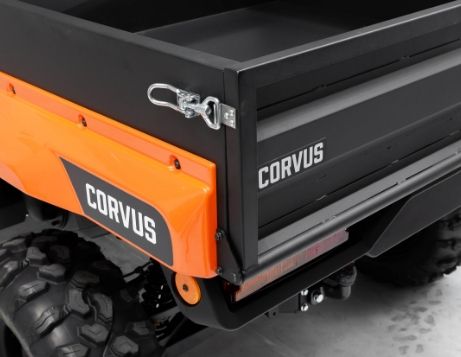

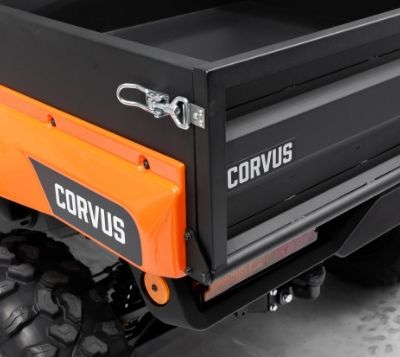

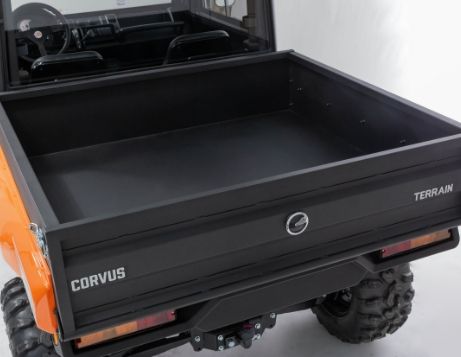

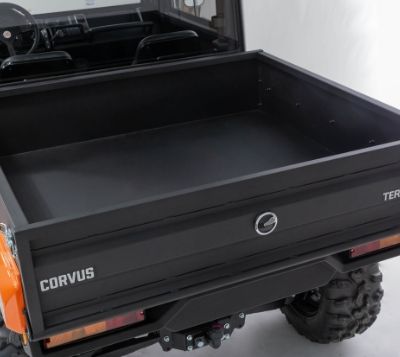

Cargo Box

• Dimensions: 1,203 x 1,340 x 300 mm
• Material: Steel
• Load Capacity: 450 kg

Professional Certification

• EU Compliance: T1a / T1b

The Terrain DX4 is the ultimate work UTV, engineered for power, reliability, and adaptability—ready to take on any job, anywhere.
