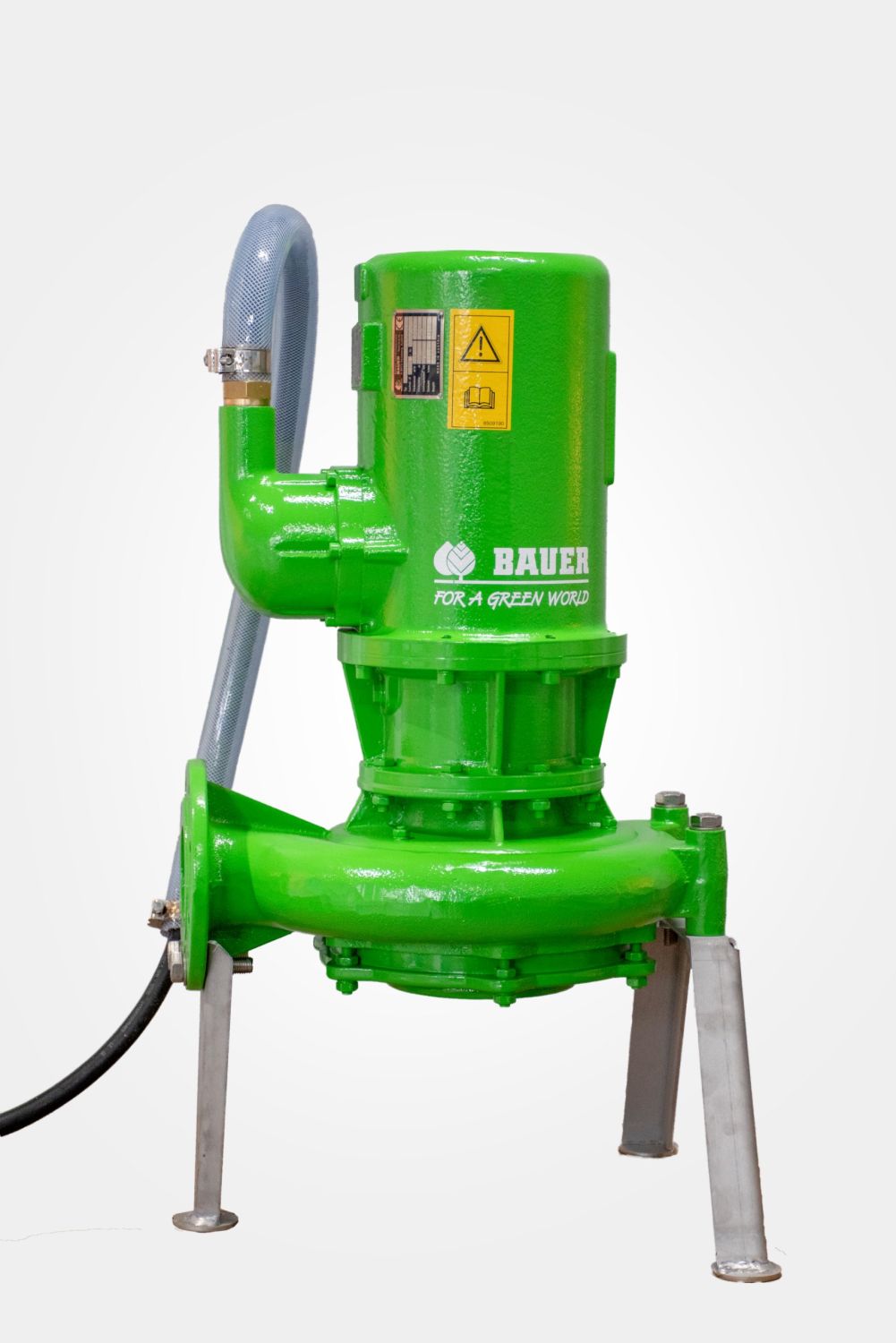

Bauer Magnum ESPH / CSPH – Submersible Slurry Pumps with Optional Cutter

The Bauer Magnum ESPH and CSPH submersible motor pumps are designed for reliable slurry handling in agricultural, industrial and biogas applications. Built for durability and efficiency, these pumps deliver strong performance below the surface for pumping, stirring and transferring slurry.

Available with or without a cutting system, the Magnum range provides flexibility for different materials and applications while maintaining consistent output and long service life.

Key Features

CSPH Models – With Cutting System

• Adjustable, replaceable cutter made from high-grade chrome steel

• Efficient processing of fibrous and solid-heavy slurry

• Replaceable wear plates for extended lifespan

ESPH Models – Without Cutting System

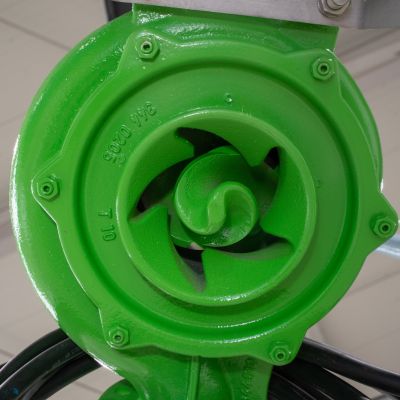

• Nodular iron impeller for efficient liquid handling

• Ideal for applications where cutting is not required

Heavy-Duty Construction

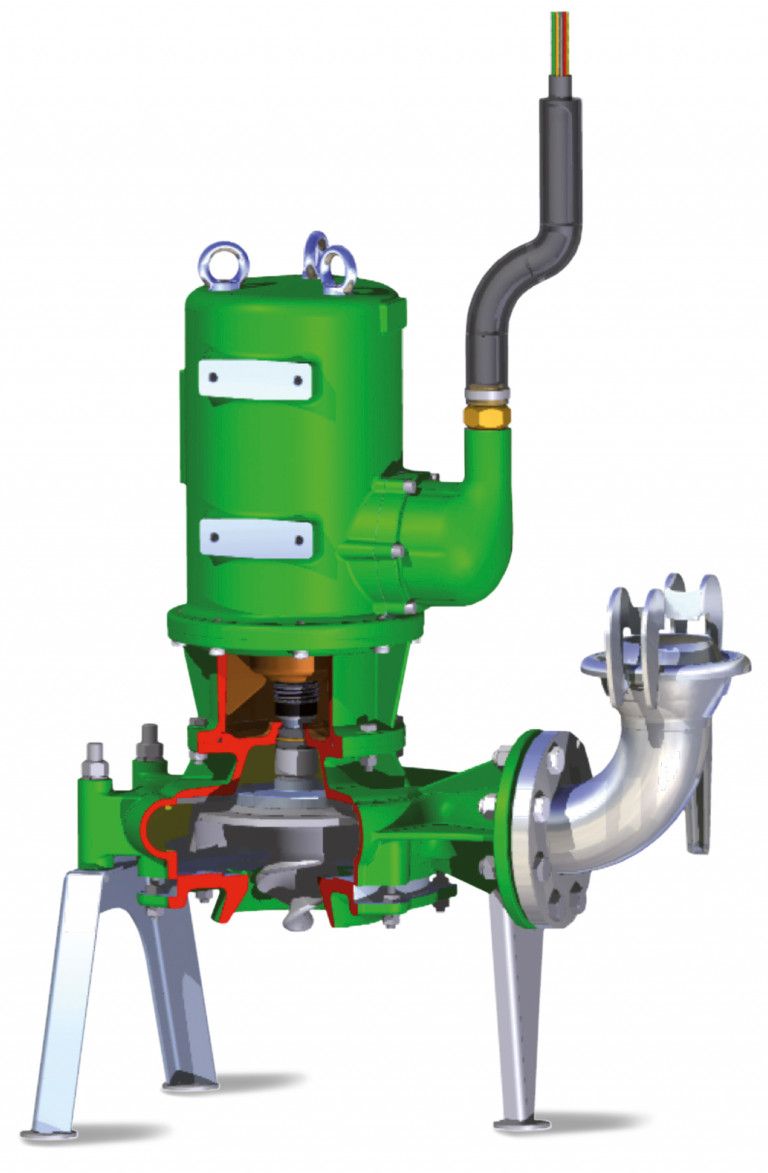

• Cast iron spiral housing and suction bell

• Built for harsh slurry and wastewater conditions

High-Performance Motor

• Three-phase submersible motor

• IE2 efficiency class for reduced energy consumption

Strong Pumping Performance

• Flow rates up to 80 m³/h

• Discharge head up to 13 metres

Versatile Operation

• Handles media up to 65°C

• Optional temperature control for biogas use

Performance Overview

ESPH (Without Cutter)

• Flow rate: 20–250 m³/h (model dependent)

• Discharge head: up to 24 m

• Power range: 4.0 – 15 kW

CSPH (With Cutter)

• Flow rate: 20–240 m³/h

• Discharge head: up to 23.7 m

• Power range: 4.0 – 15 kW

Performance varies depending on model and application.

Key Benefits

Reliable Performance

Designed for continuous operation in demanding slurry and wastewater environments.

Flexible Applications

Choice of cutter or non-cutter models allows adaptation to different materials and systems.

Low Running Costs

Energy-efficient motors reduce power consumption and operating expenses.

Easy Maintenance

Replaceable wear parts and accessible design minimise downtime.

Long Service Life

High-quality materials ensure durability and long-term reliability.

Applications

The Bauer Magnum ESPH / CSPH pumps are ideal for:

• Slurry pumping and transfer

• Mixing and stirring slurry tanks

• Filling slurry tankers

• Feeding separators (e.g. Bauer S300)

• Biogas plant operations

• Industrial wastewater and sludge handling

Why Choose Bauer Magnum ESPH / CSPH?

The Bauer Magnum ESPH and CSPH submersible pumps deliver dependable performance, strong pumping capacity and long service life. Whether handling liquid manure or thick slurry, they provide a versatile and efficient solution for modern operations.

Enquire Now

For more information on the Bauer Magnum ESPH / CSPH submersible pumps, including pricing and availability, contact KP Agri Ltd. Our team will help you find the right pumping solution for your operation.
