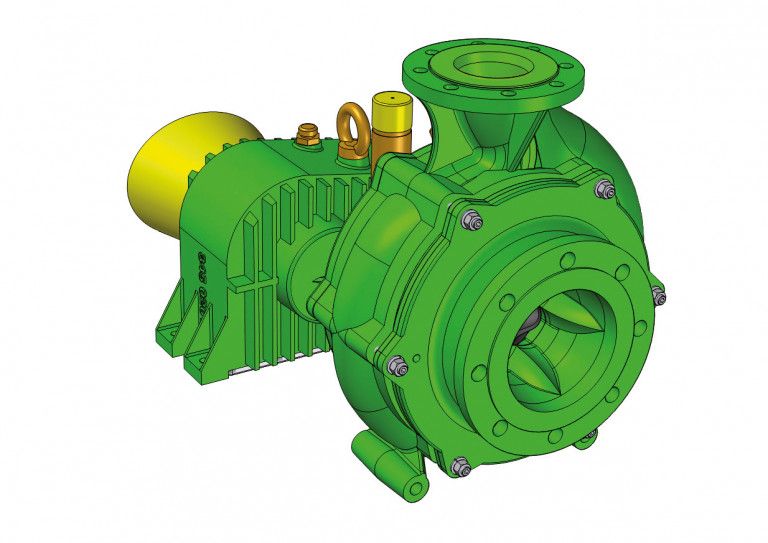

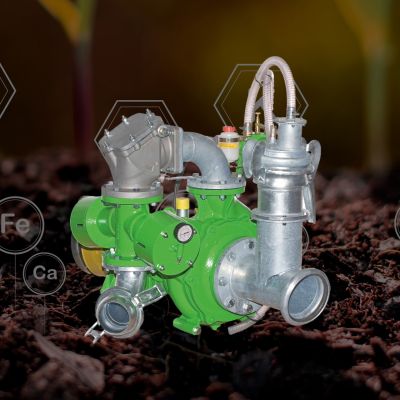

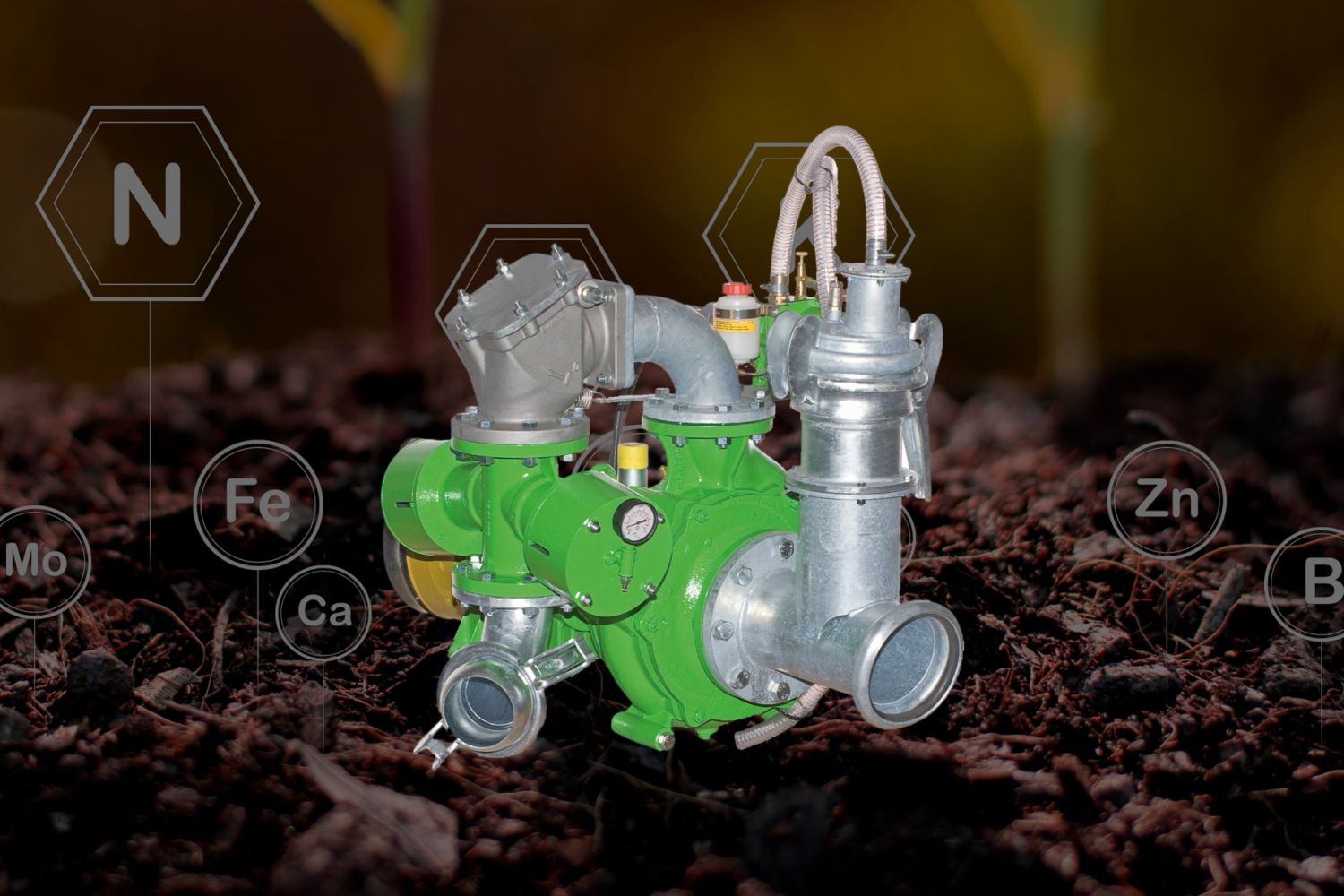

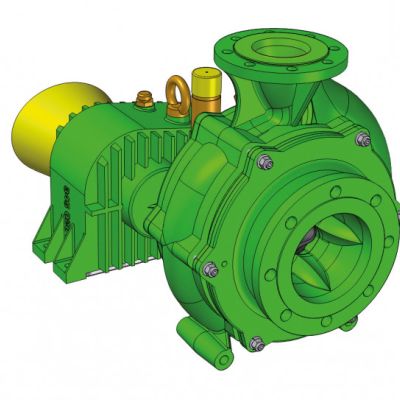

Bauer Magnum SX – High-Pressure Slurry Pumps with Cutting System

The Bauer Magnum SX series is a range of high-performance slurry pumps designed for high-pressure pumping and efficient material processing. Equipped with an advanced cutting system, these pumps handle demanding applications with ease, including thick media with up to 12% total solids (TS).

Built for agriculture, industry and environmental applications, the Magnum SX delivers powerful performance, excellent suction capacity and long-term reliability in the toughest conditions.

Key Features

Advanced Cutting System

Adjustable cutting plates and a pulling cut mechanism ensure efficient processing of fibrous and thick materials while reducing blockages.

Non-Clog Pump Design

Optimised pump housing prevents clogging and ensures smooth, continuous operation.

High Suction Performance

Designed with an optimised suction nozzle and optional self-priming system for maximum efficiency and flexibility.

Heavy-Duty Construction

• Wear-resistant protective plates

• Robust shaft bearings for stability

• Durable cast construction for long service life

Reliable Sealing System

Double-acting mechanical seal with lubrication reservoir ensures dependable operation.

Efficient Gearbox Design

Compact industrial gearbox delivers efficient power transmission with low maintenance requirements.

Performance Overview

Magnum SX Models

• Flow rate: 60–300 m³/h

• Discharge head: 102–140 m

• Power requirement: up to 130 kW

• Drive speeds: 1,000 / 2,000 / 2,600 rpm

SM 540 Models

• Flow rate: 40–200 m³/h

• Discharge head: 52–95 m

• Power requirement: up to 65 kW

• Drive speed: 540 rpm

Performance varies depending on material type and operating conditions.

Key Benefits

High Efficiency

Powerful cutting and pumping performance ensures consistent operation even with high solid content materials.

Reduced Downtime

Non-clog design and efficient cutting system minimise blockages and maintenance interruptions.

Versatile Applications

Suitable for a wide range of agricultural, industrial and environmental uses.

Long Service Life

Durable materials and heavy-duty construction ensure reliability in demanding conditions.

Flexible Configurations

Available with tractor drive, diesel engine or electric motor options for different operational needs.

Applications

The Bauer Magnum SX is ideal for:

• Slurry pumping and hose irrigation

• Biogas plants and substrate transfer

• Pump tankers and transfer systems

• Industrial waste and sludge handling

• Food processing and environmental applications

Available Configurations

• Mounted on pump tankers for mobile use

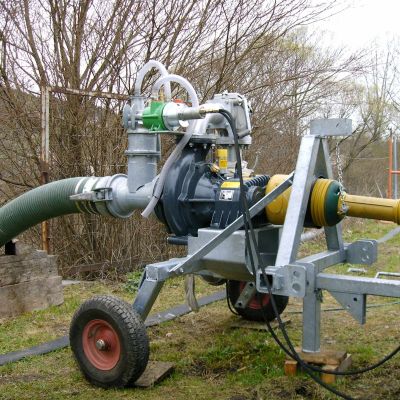

• Trailer-mounted diesel-driven units

• Stationary electric-driven systems on base frames

Why Choose Bauer Magnum SX?

The Bauer Magnum SX series combines high-pressure performance, advanced cutting technology and robust construction to deliver reliable results in the most demanding environments. It is a proven solution for handling thick, challenging materials with maximum efficiency.

Enquire Now

For more information on the Bauer Magnum SX slurry pumps, including pricing and availability, contact KP Agri Ltd. Our team will help you find the right pumping solution for your operation.
